      Inverter Charger
      Tyrann (3kW/5kW/8kW)
      Download PDF
      Tyrann inverter charger for off-grid and grid-tie solar system product features

      Tyrann (3kW/5kW/8kW)

      Inverter Charger

      Tyrann (3kW/5kW/8kW)

      3kW/5kW/8kW

      Tyrann (3kW/5kW/8kW) is a multifunctional inverter charger with feeding energy back into grid capability. In addition to off-grid application, Tyrann, plus an external current sensor, can optimize the self-consumption without a meter. With E4 LCD Monitor, Tyrann is ideally suited for complex ESS applications for various countries. More importantly, Tyrann is equipped with a smart port which can be programmed as a generator input port to realize two AC inputs for the system, or as an AC output to power normal loads to realize smart load management during power outages.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Feed energy back into the grid

      Feed energy back into the grid

      ESS functionality

      ESS functionality

      Programmable smart port

      Programmable smart port

      AC Coupling, DC Coupling or both

      AC Coupling, DC Coupling or both

      Parallel and three-phase up to 9 units

      Parallel and three-phase up to 9 units

      Compatible with 600V MPPT

      Compatible with 600V MPPT

      0ms UPS transfer time for critical loads

      0ms UPS transfer time for critical loads

      Built-in AGS function for generator control

      Built-in AGS function for generator control

      Power assist & power control

      Power assist & power control

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via Nova

      Remote monitoring and control via Nova

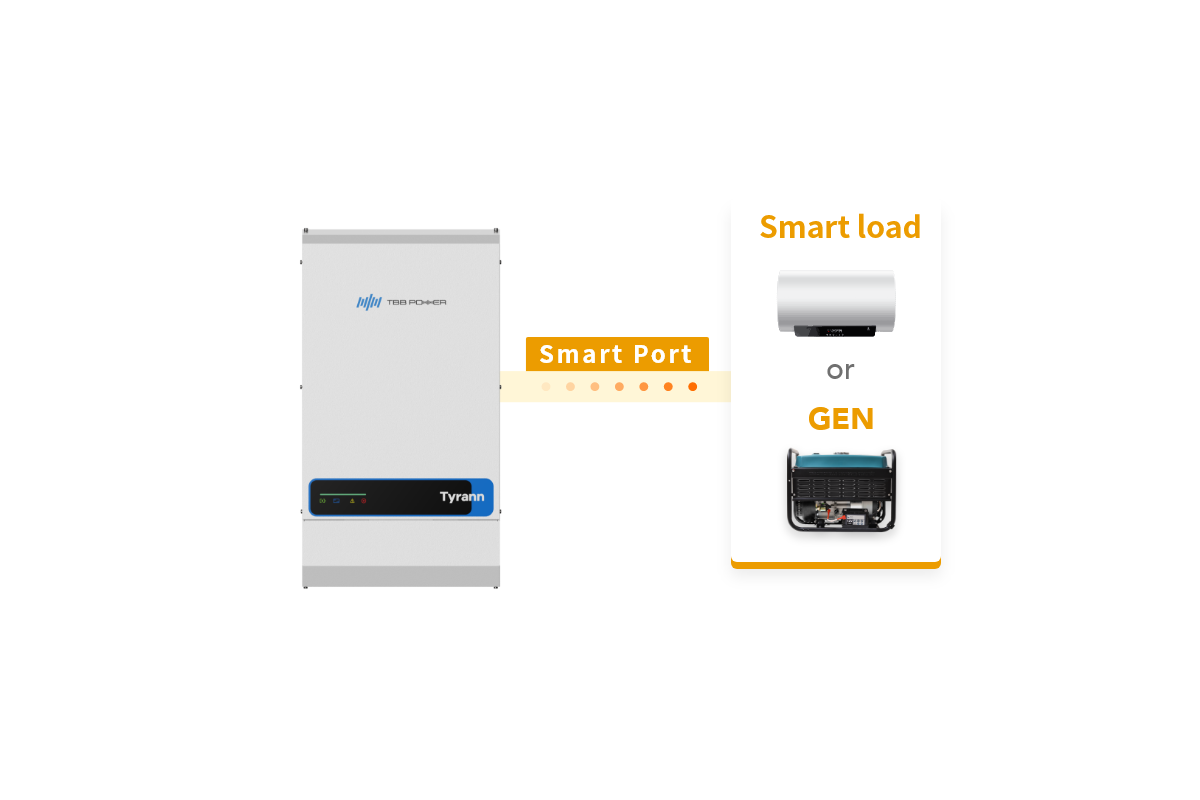

      A programmable smart port

      A programmable smart port

      Built-in a programmable smart port for generator input or power normal loads. When programmed as generator input, it can provide two AC inputs for the system; When it is programmed as an AC out 2 for connecting normal loads, its on/off can be controlled based on the grid condition, battery SoC/Voltage, to manage loads in a smart way.

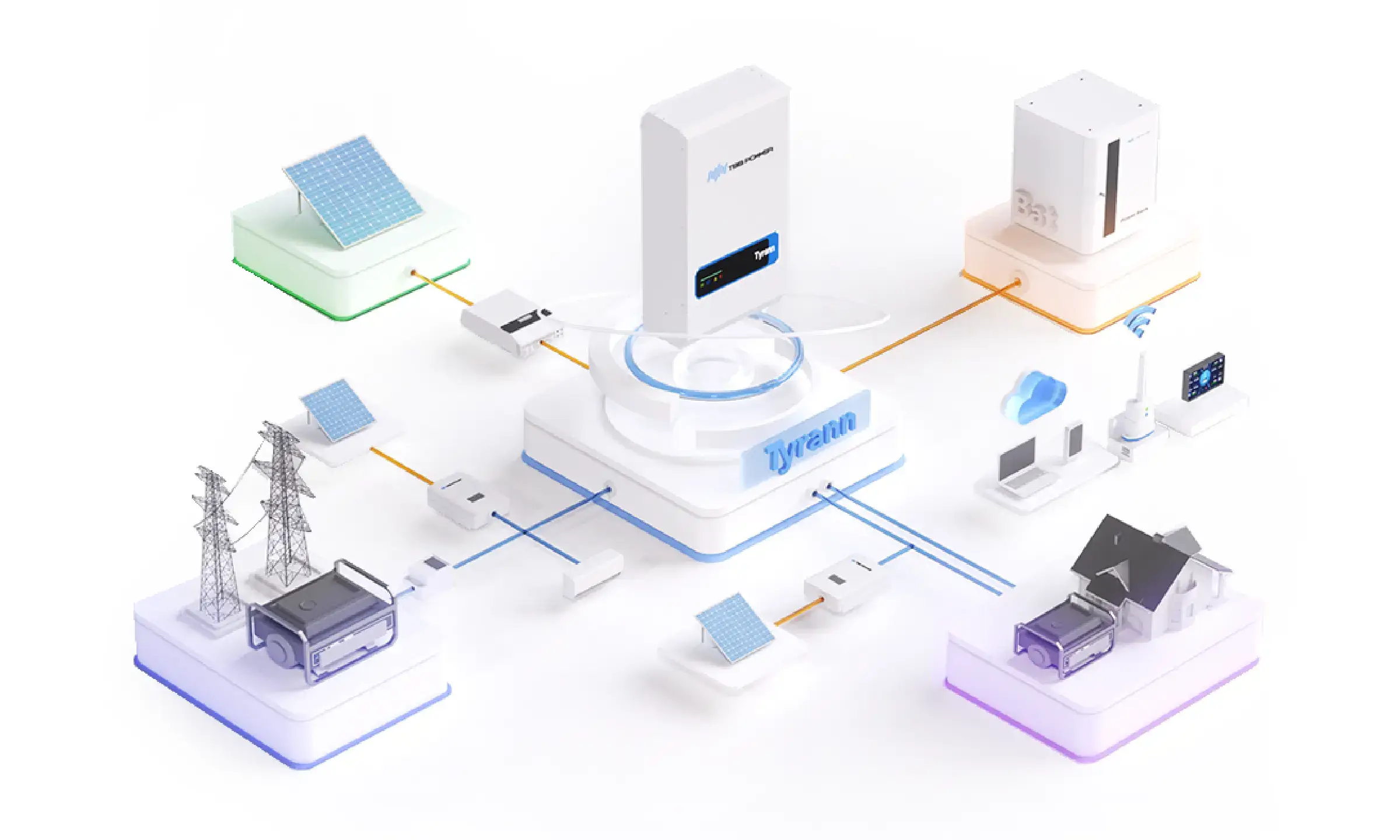

      ess capability

      ESS Capability

      With ESS capability, Tyrann (3kW/5kW/8kW) is the key component in an energy storage system. Combined with MPPT solar charge controller and grid-tie PV inverter, it can be used for the following applications: maximizing self-consumption, peak shaving, retrofitting existing grid-tie systems, and guaranteeing backup power.

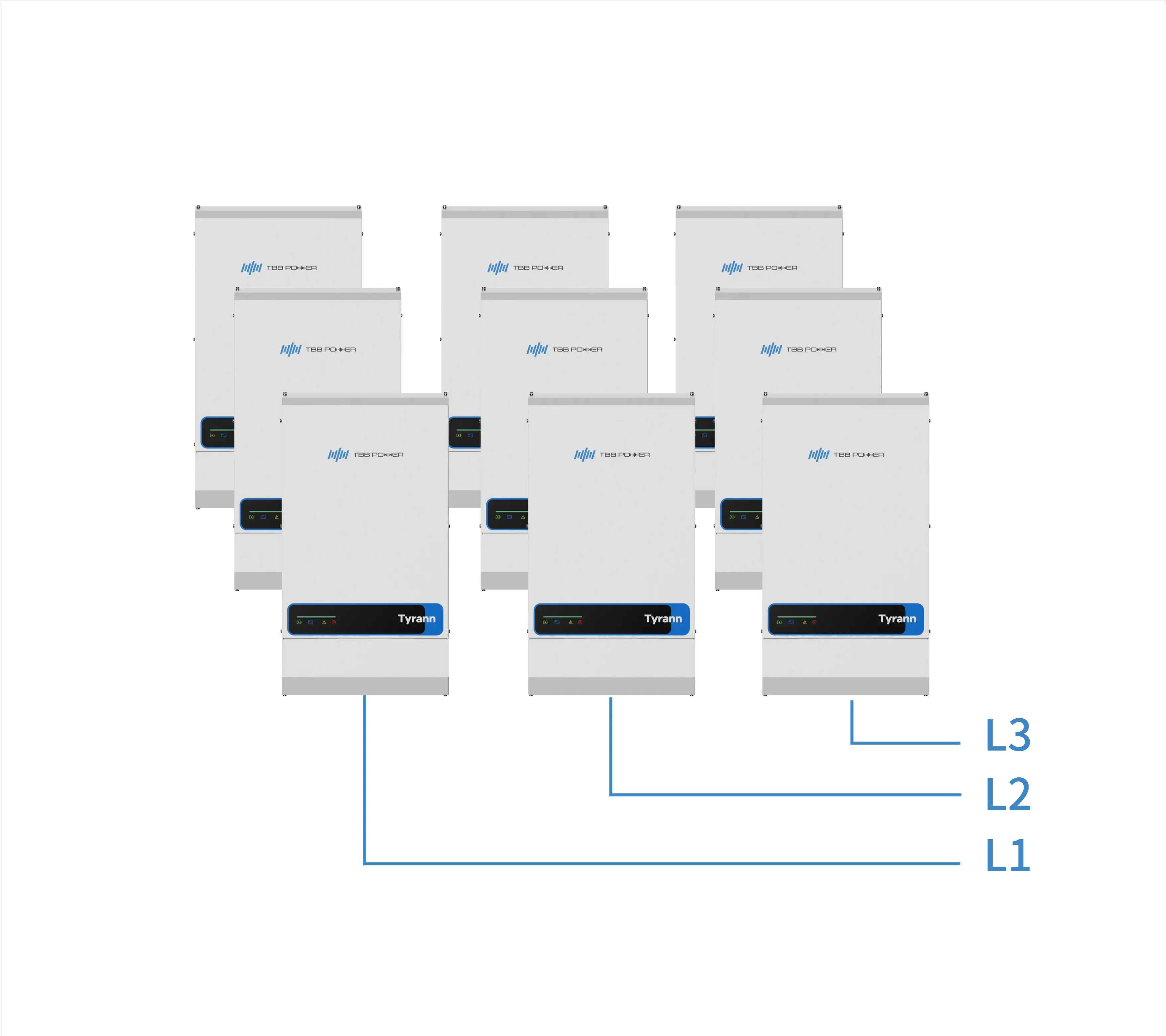

      Parallel & Three-phase Operation up to 9 units

      Parallel & Three-phase Operation up to 9 units

      Tyrann (3kW/5kW/8kW) supports parallel and three-phase operation up to 9 units to achieve higher power output (up to 72kW). You can start with the comprehensive system or a smaller solution and gradually expand it, depending on what best suits your needs and budget.

      Power Control: maximizes the use of limited AC source and protect it from overload

      Power Control: maximizes the use of limited AC source and protect it from overload

      Tyrann (3kW/5kW/8kW) can automatically adjust its charging current by taking loads into account and only using the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Tyrann can also keep generators running at their optimum power level.

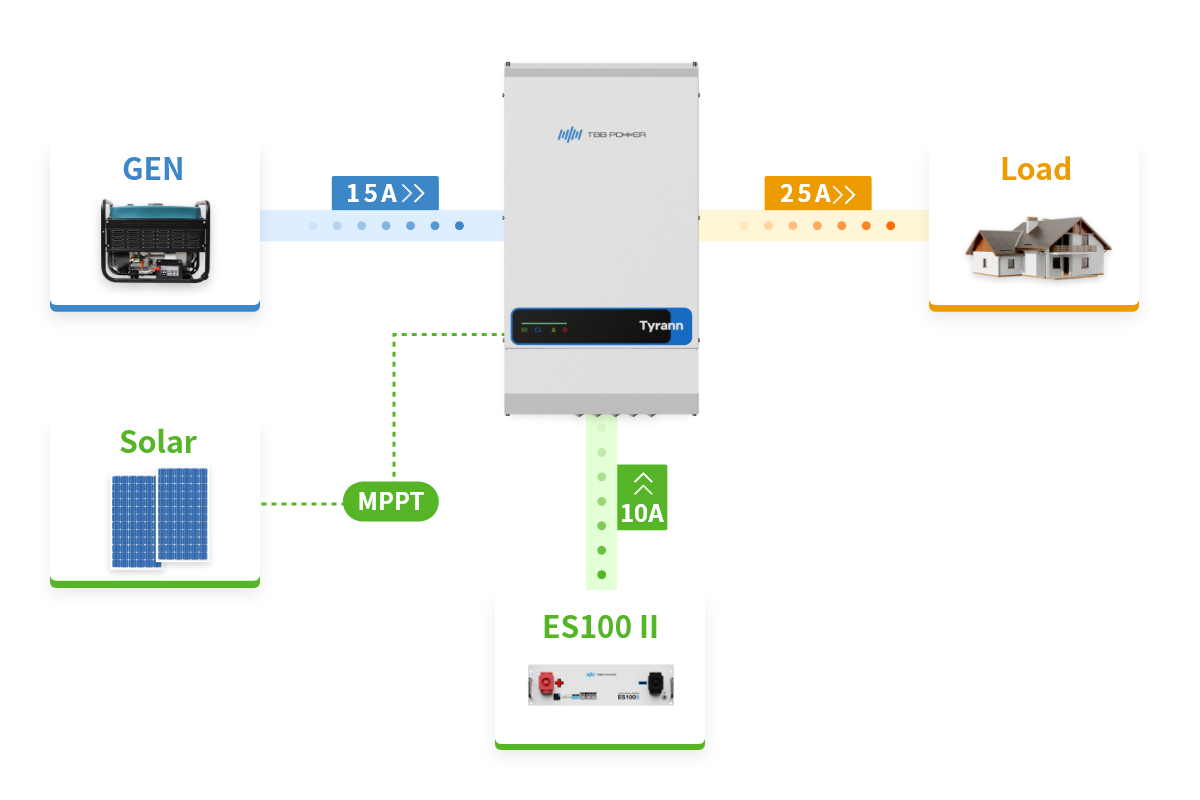

      Power Assist: enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Tyrann (3kW/5kW/8kW) will discharge the battery to supply power to compensate for the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

      Tyrann inverter charger for off-grid and ess applications

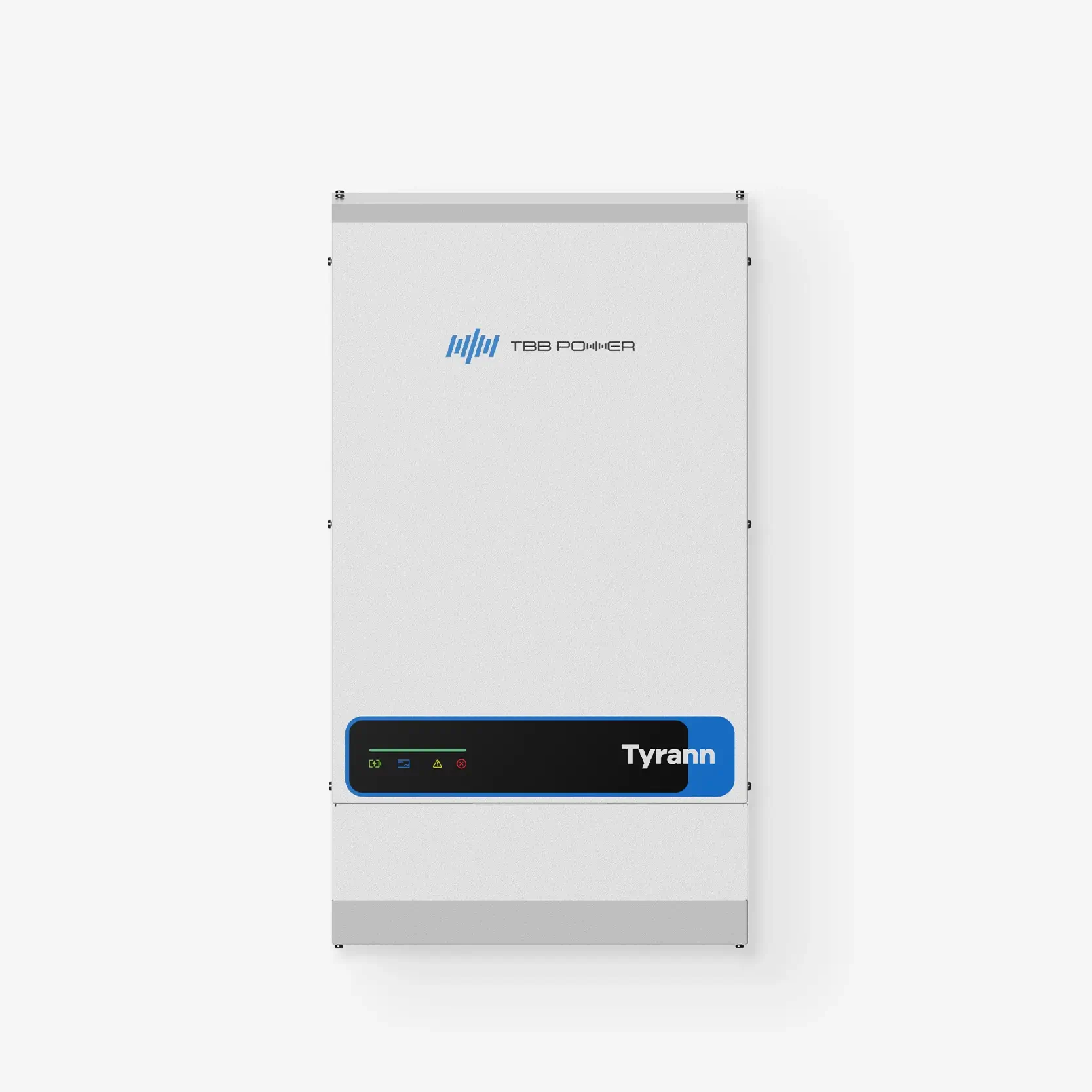

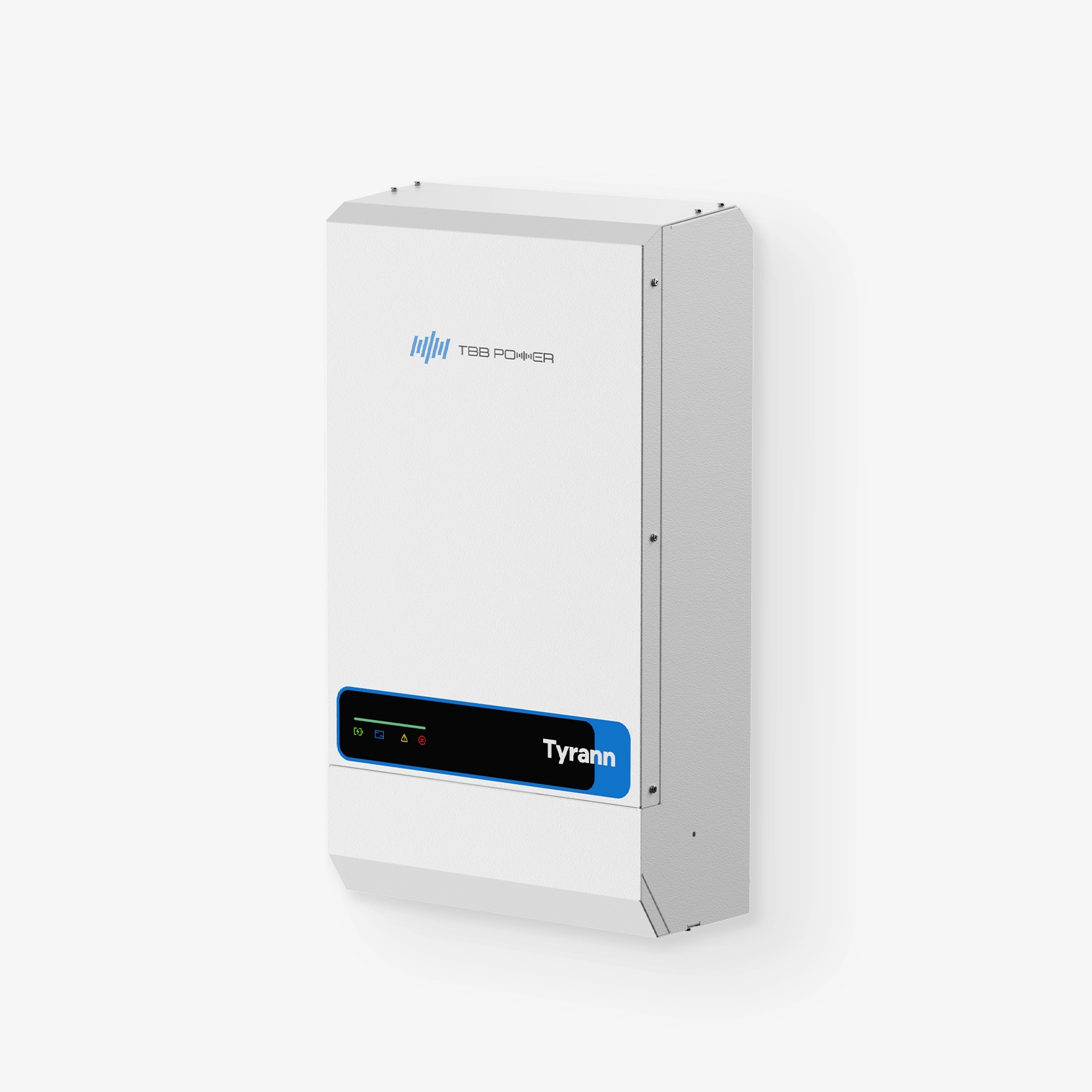

      Tyrann inverter charger product imageTyrann inverter charger product imageTyrann inverter charger product image

      Specification

      • Tyrann 3.0M

      • Tyrann 5.0M

      • Tyrann 3.0S

      • Tyrann 5.0S

      • Tyrann 8.0S

      • Nominal battery voltage (V)
        24
      • Output power (30min) at 25°C (W)
        3000
      • Max AC charge current (A)
        80
      • Smart Port
        Yes
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Output power (30min) at 25°C (W)
        3000
      • Max AC charge current (A)
        80
      • Smart Port
        Yes
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Output power (30min) at 25°C (W)
        3000
      • Max AC charge current (A)
        80
      • Smart Port
        Yes
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Output power (30min) at 25°C (W)
        3000
      • Max AC charge current (A)
        80
      • Smart Port
        Yes
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Output power (30min) at 25°C (W)
        3000
      • Max AC charge current (A)
        80
      • Smart Port
        Yes
      • Protection Index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
