      Inverter Charger
      Tyrann (10 & 15kW)
      Download PDF
      Tyrann inverter charger for off-grid and grid-tie solar system product features

      Tyrann (10 & 15kW)

      Inverter Charger

      Tyrann (10 & 15kW)

      10kW/15kW

      Tyrann (10 & 15kW) is an inverter charger similar to Kinergier Pro, yet it features two independent AC inputs for connecting the grid and a generator, or two generators. It can automatically select the active source or the user-preset prioritized AC source based on the system demand. When peak power is required for a limited period, Tyrann will discharge the battery immediately to compensate the insufficient part of the limited AC source, safeguarding an uninterruptible power supply for loads to the maximum extent. Worth to mention, that Tyrann boasts ESS functionality, supporting energy feeding back into the grid. Its single-machine maximum power is up to 15kW, featuring a stronger surge capacity to carry inductive loads with high initial current. In addition, it works well with TBB latest SP600-120 solar charge controller which supports higher open circuit voltage. They are the perfect couple in composing a DC Coupled PV system with higher efficiency.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Two AC inputs & Two AC outputs

      Two AC inputs & Two AC outputs

      Feed energy back into the grid

      Feed energy back into the grid

      ESS functionality

      ESS functionality

      AC Coupling, DC Coupling or both

      AC Coupling, DC Coupling or both

      Parallel and three phase up to 9 units

      Parallel and three phase up to 9 units

      Compatible with 600V MPPT

      Compatible with 600V MPPT

      0ms UPS transfer time for critical loads

      0ms UPS transfer time for critical loads

      Built-in AGS function for generator

      Built-in AGS function for generator

      Power assist & power control

      Power assist & power control

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via NOVA

      Remote monitoring and control via NOVA

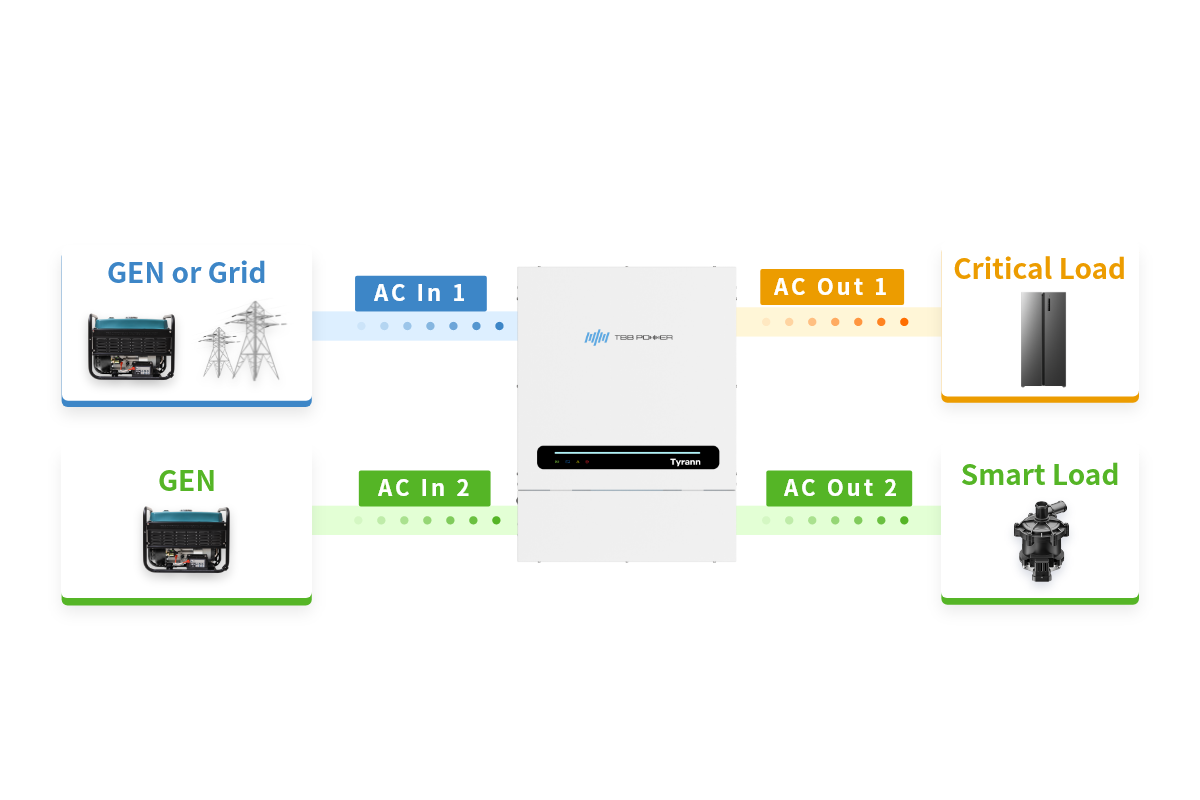

      Two AC inputs & Two AC outputs

      Two AC inputs & Two AC outputs

      Boasting two AC inputs, Tyrann (10kW&15kW) can connect to the grid and generator or two generators simultaneously. It will automatically connect to the active AC source to ensure an uninterruptible power supply. With Two AC outputs, Tyrann can manage loads in a smart way.

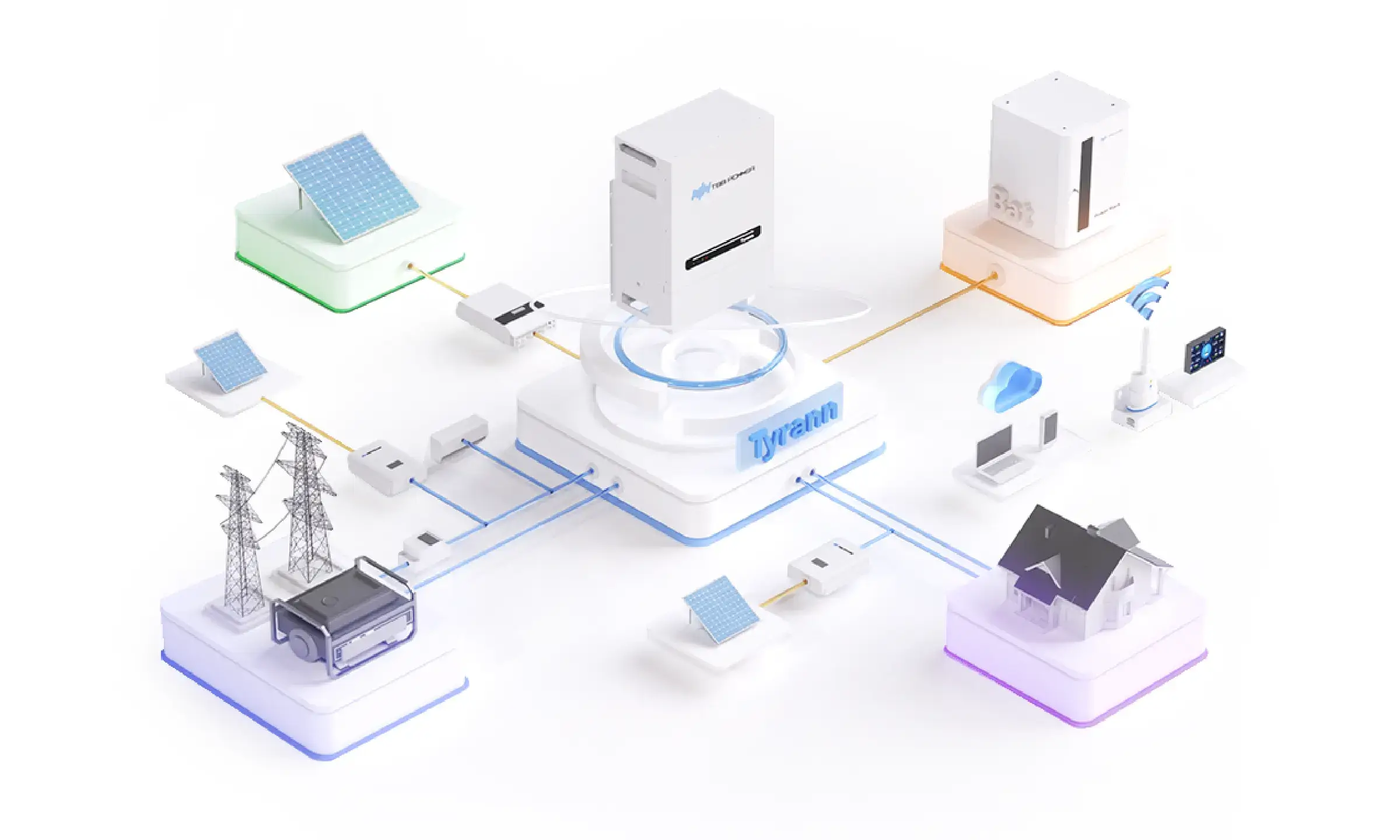

      ess capability

      ESS Capability

      With ESS capability, Tyrann (10kW&15kW) is the key component in an energy storage system. Combined with MPPT solar charge controller and grid-tie PV inverter, it can be used for the following applications: maximizing self-consumption, peak shaving, retrofitting existing grid-tie systems, and guaranteeing backup power.

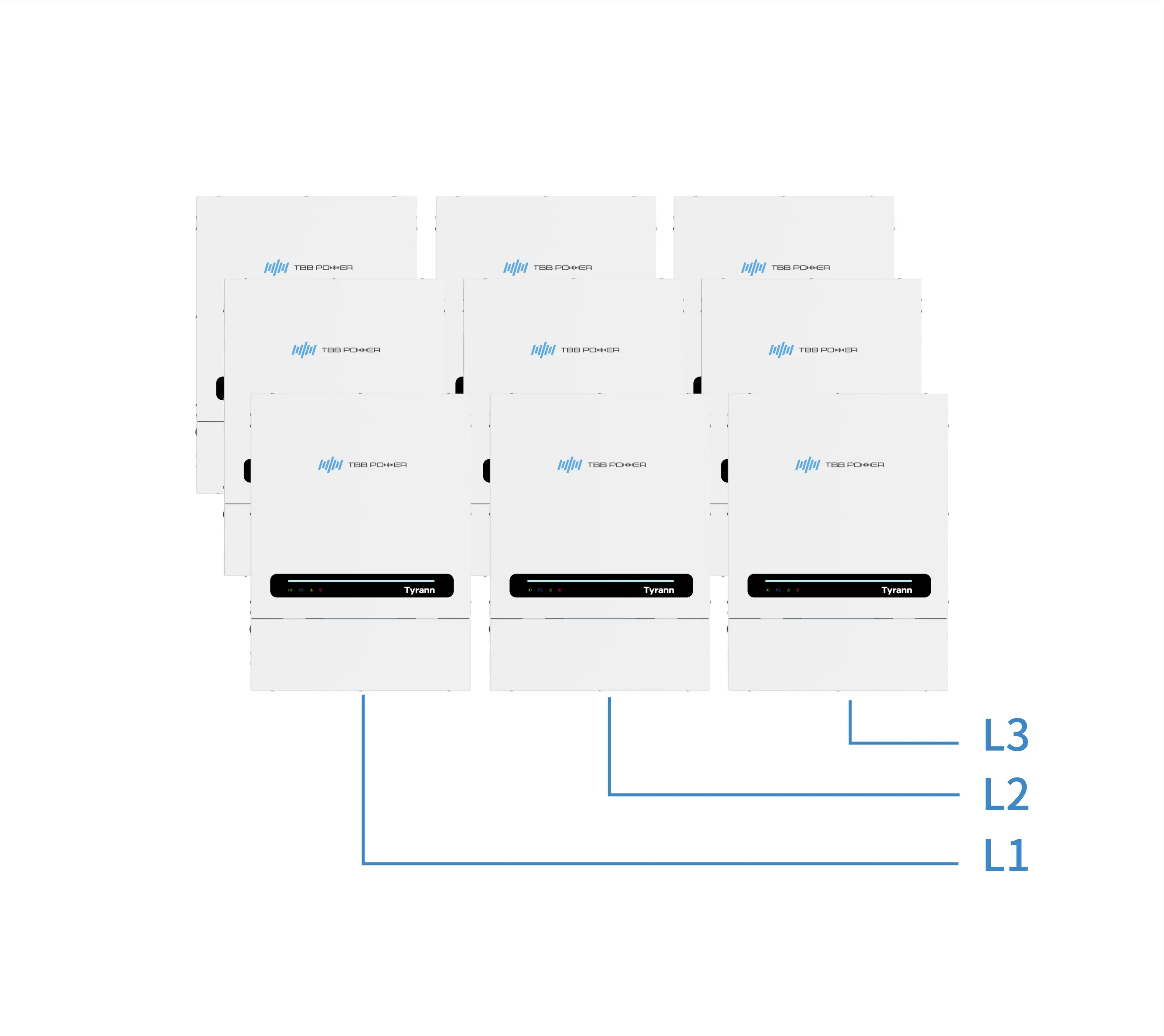

      Parallel & Three-phase Operation up to 9 units

      Parallel & Three-phase Operation up to 9 units

      Tyrann (10kW&15kW) supports parallel and three-phase operations up to 9 units to achieve higher power output (up to 135kW). You can start with the comprehensive system or a smaller solution and gradually expand it, depending on what best suits your needs and budget.

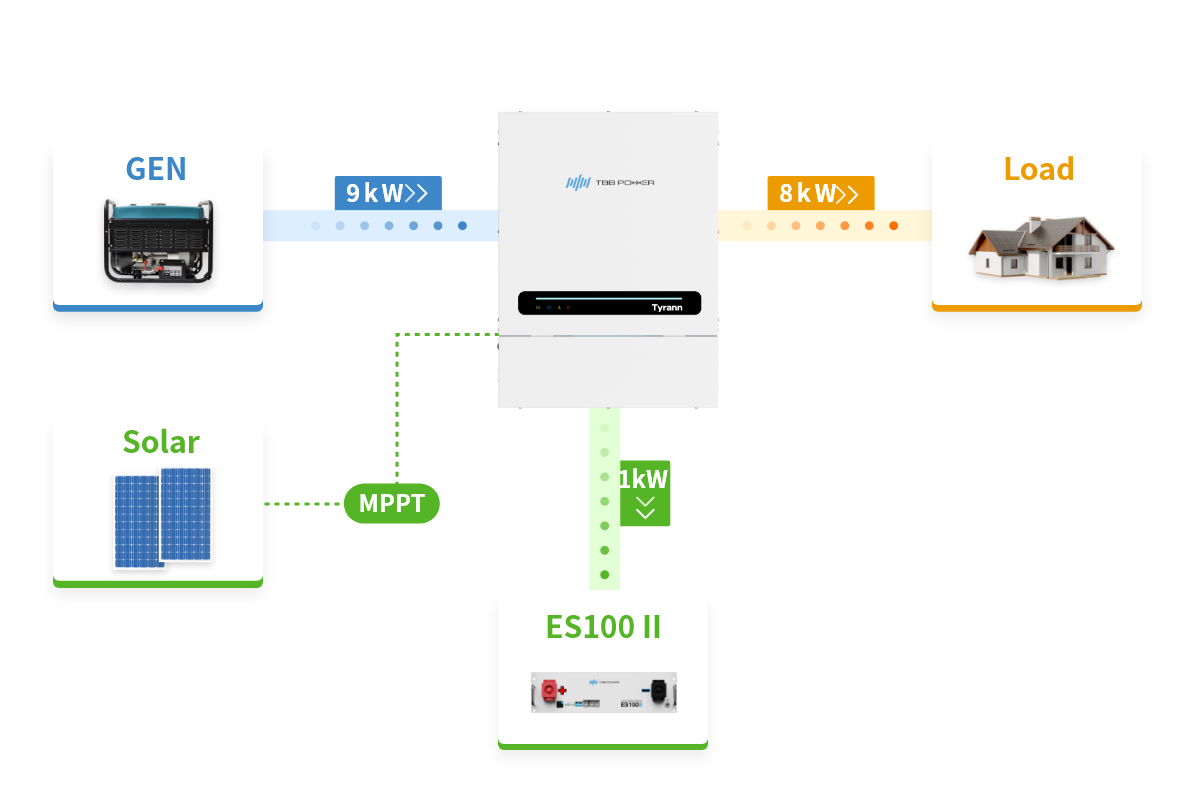

      Power Control: maximizes the use of limited AC source and protect it from overload

      Power Control: maximizes the use of limited AC source and protect it from overload

      Tyrann (10kW&15kW) can automatically adjust its charging current by taking loads into account and only using the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Tyrann can also keep generators running at their optimum power level.

      Power Assist: enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Tyrann (10kW&15kW) will discharge the battery to supply power to compensate for the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

      Tyrann inverter charger for off-grid and ess applications

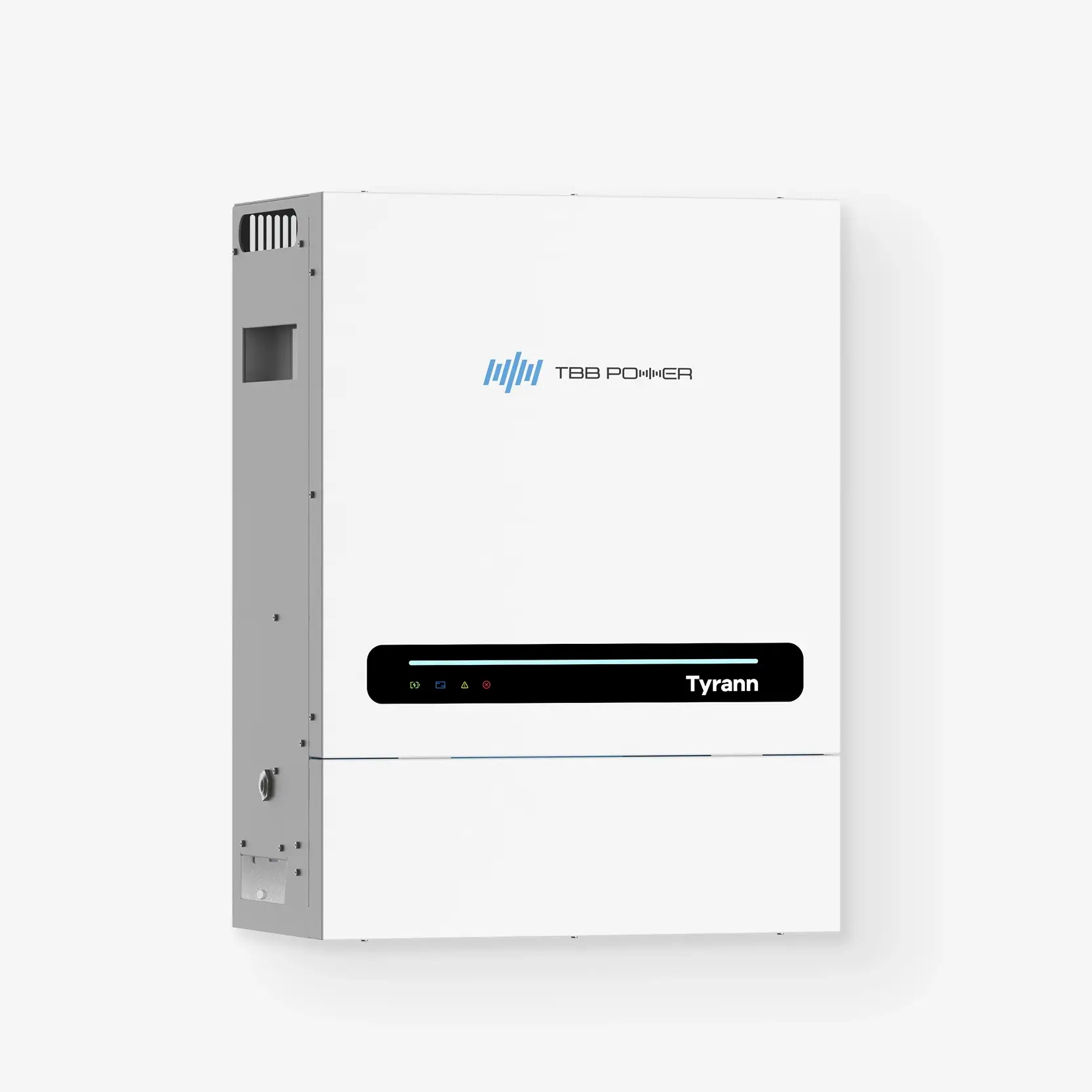

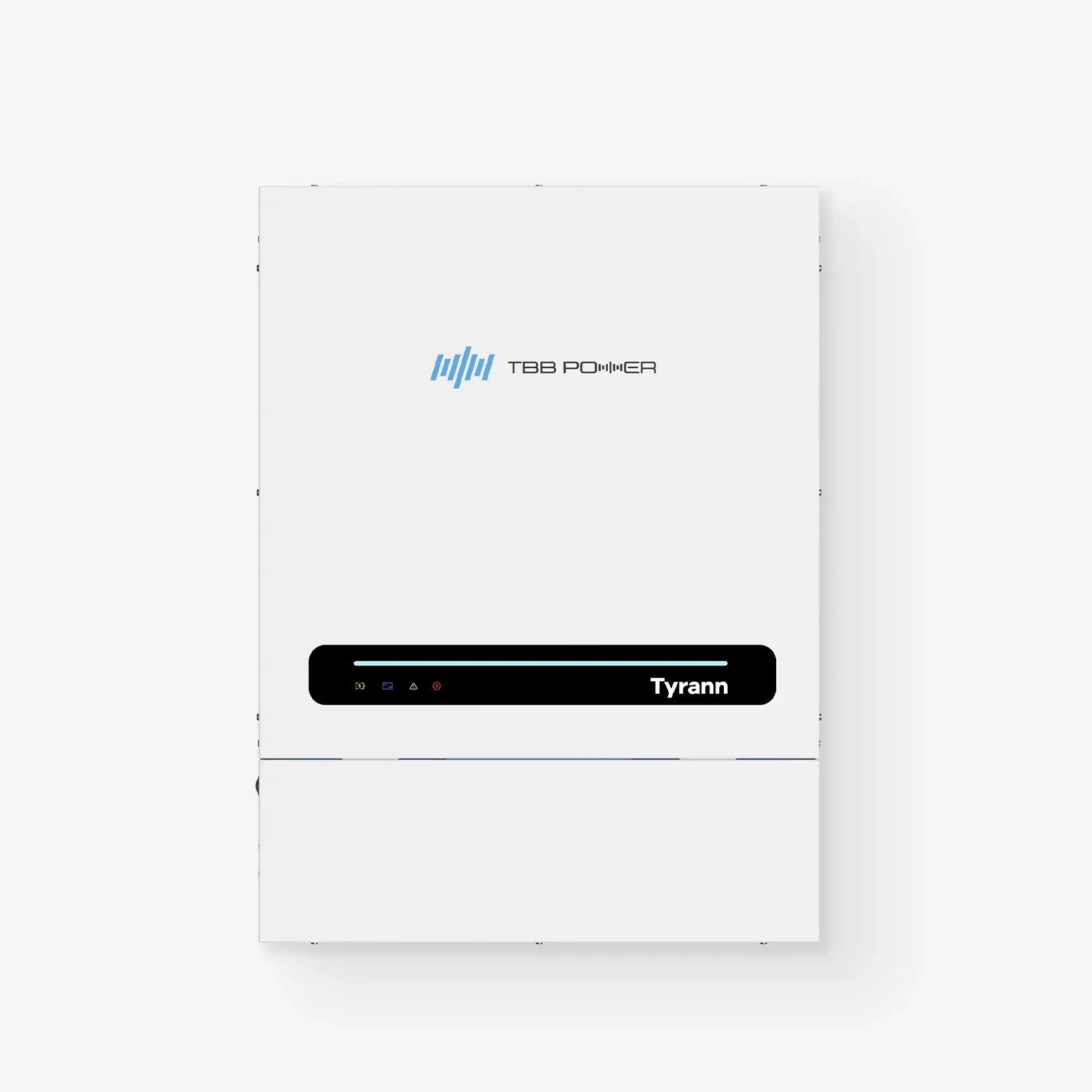

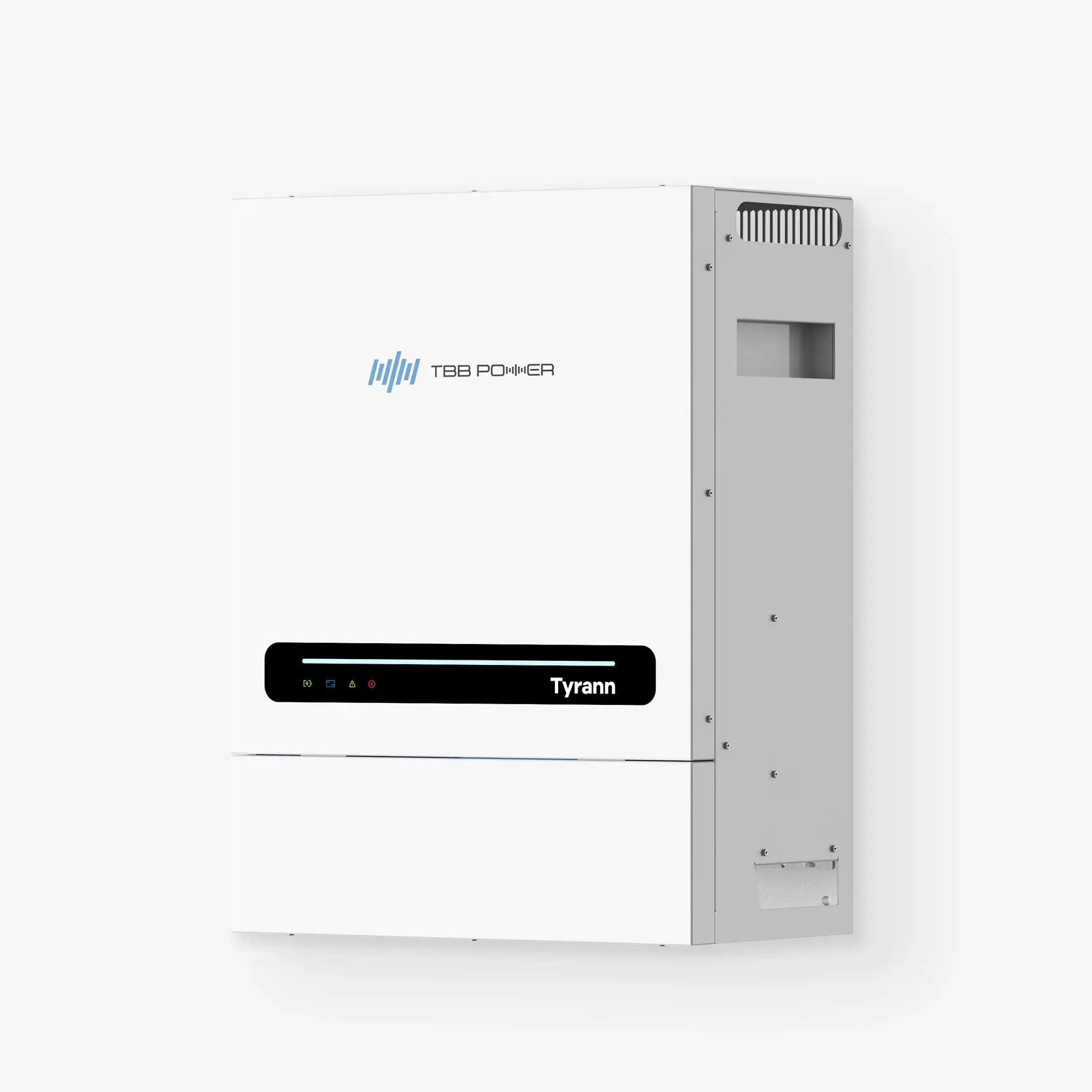

      Tyrann inverter charger product imageTyrann inverter charger product imageTyrann inverter charger product image

      Specification

      • Tyrann 15.0S

      • Tyrann 10.0S

      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        15000
      • Max AC charge current (A)
        200
      • Two AC Output and Input
        Yes
      • Protection Category
        IP21
      • Nominal battery voltage (VDC)
        48
      • Peak power (30min) (W)
        15000
      • Max AC charge current (A)
        200
      • Two AC Output and Input
        Yes
      • Protection Category
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…

      Try Our Demo
