TBB Renewable provides comprehensive service and support to you to help you grow and achieve optimal satisfaction.

      Inverter Charger
      RiiO II
      riio ii inverter charger for basic backup power applications product features

      RiiO II

      Inverter Charger

      RiiO II

      2kVA-8kVA

      RiiO II Series is a versatile transformer-based inverter charger, designed for backup power, off-grid and ESS applications. It features high surge power for heavy loads and a 4ms quick transfer for uninterrupted critical load support during outages, supports up to 9 parallel units, three-phase expansion, and AGS function. Its smart port allows for dual AC inputs or outputs configurations, enhancing system power flexibility and load management.

      Programmable smart port for 5, 6 & 8 kVA models

      Programmable smart port for 5, 6 & 8 kVA models

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Parallel and three phase up to 9 units

      Parallel and three phase up to 9 units

      Built-in ESS functionality

      Built-in ESS functionality

      AGS Function for Generator Control

      AGS Function for Generator Control

      4ms UPS transfer time for critical loads

      4ms UPS transfer time for critical loads

      ECO mode to prolong battery backup time

      ECO mode to prolong battery backup time

      Power assist & power control

      Power assist & power control

      Compatible with lithium battery

      Compatible with lithium battery

      Up to 94% inverter efficiency

      Up to 94% inverter efficiency

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via NOVA web & app

      Remote monitoring and control via NOVA web & app

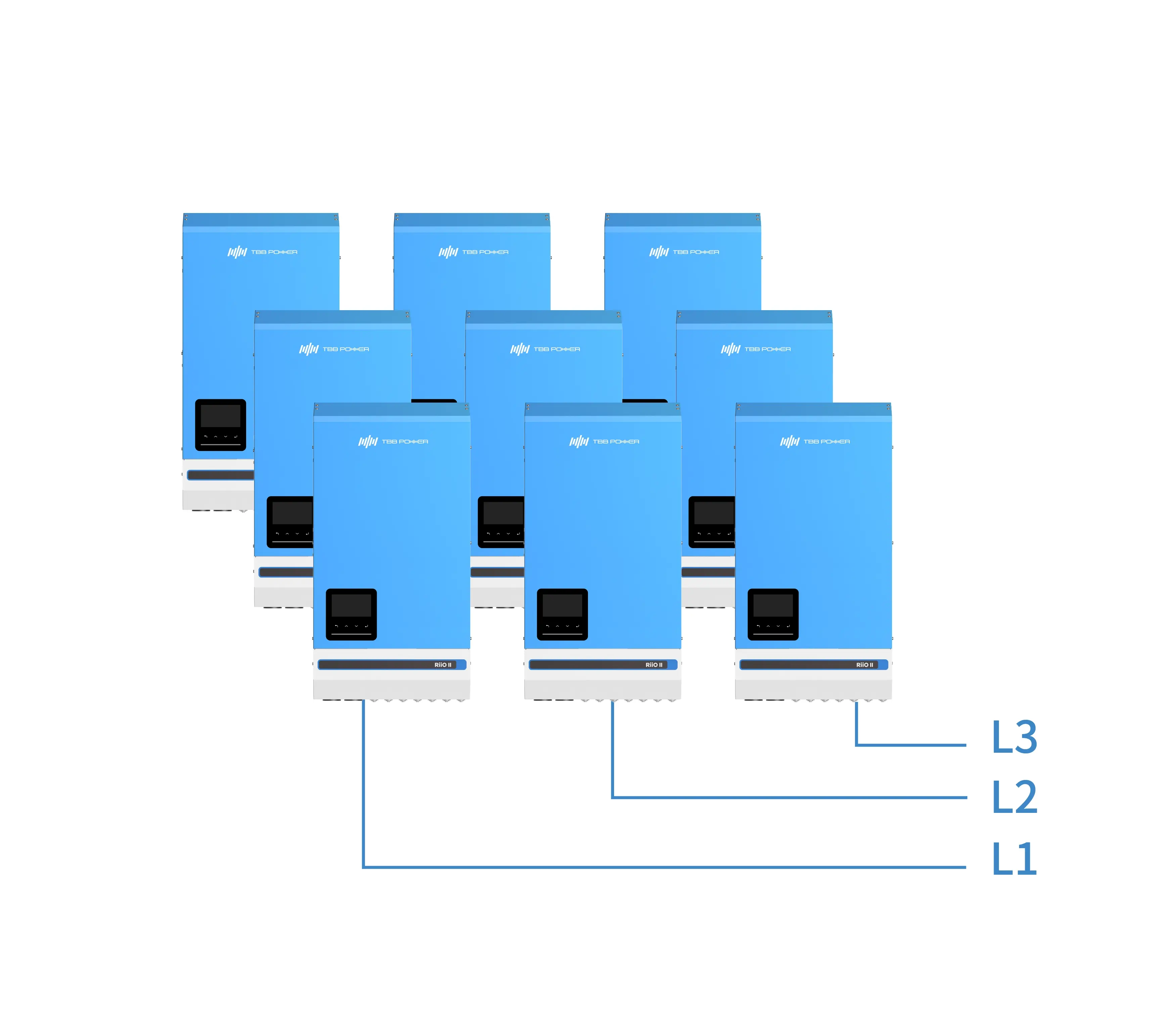

      Parallel & Three-phase Operation up to 9 units

      Parallel & Three-phase Operation up to 9 units

      RiiO II supports parallel and three-phase operation up to 9 units, reaching up to 72kVA. Start with a comprehensive system or a smaller solution and expand as needed to fit your needs and budget.

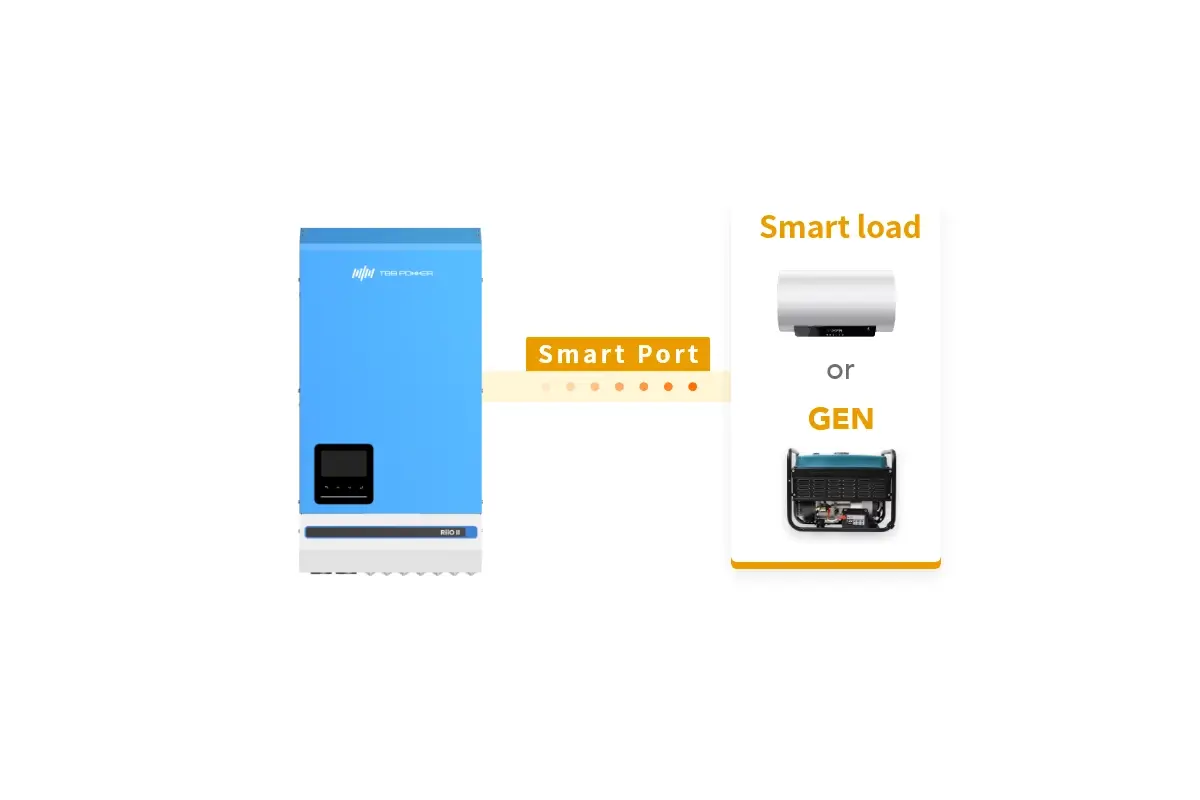

      A programmable smart port for 5kVA, 6kVA, and 8kVA models

      A programmable smart port for 5kVA, 6kVA, and 8kVA models

      RiiO II 5kVA, 6kVA, and 8kVA models feature a programmable smart port for generator input or the second AC output. As a generator input, it provides two AC inputs for the system. When it is programmed as an AC out 2 for connecting normal loads, its on/off can be controlled based on the grid condition, battery SoC/Voltage, enabling intelligent load management.

      Power Control for Limited AC Source

      Power Control for Limited AC Source

      RiiO II can automatically adjust its charging current by taking loads into account and only use the surplus current to charge batteries to protect limited AC sources from overload.

      Power Assist for Limited AC Sources

      Power Assist for Limited AC Sources

      When the load power keeps increasing and exceeds the limited AC source capability, RiiO II will discharge the battery to compensate the insufficient part of the limited AC source. When the load power reduces, the spare energy will be used to recharge the battery.

      Built-in ECO Mode to Prolong the Backup Time

      Built-in ECO Mode to Prolong the Backup Time

      ECO Mode is to reduce the output power of the inverter while maintaining the normal use of loads. When the battery capacity is insufficient or the SoC is in a low value, by setting the ECO Mode in the inverter, the power consumption of some specific loads can be reduced by about 45% at max, thereby prolonging the battery life.

      riio ii inverter charger for basic backup power applications

      riio ii inverter charger for basic backup power applications product imageriio ii inverter charger for basic backup power applications product imageriio ii inverter charger for basic backup power applications product image

      Specification

      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21
      • Nominal battery voltage (V)
        24
      • Max Output Power at 25°C (W)
        2000
      • Max AC charge current (A)
        40
      • Surge Capability
        300%
      • Protection Index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…

      Try Our Demo
