      All-in-one Mini Grid & ESS System
      Raython QS Series

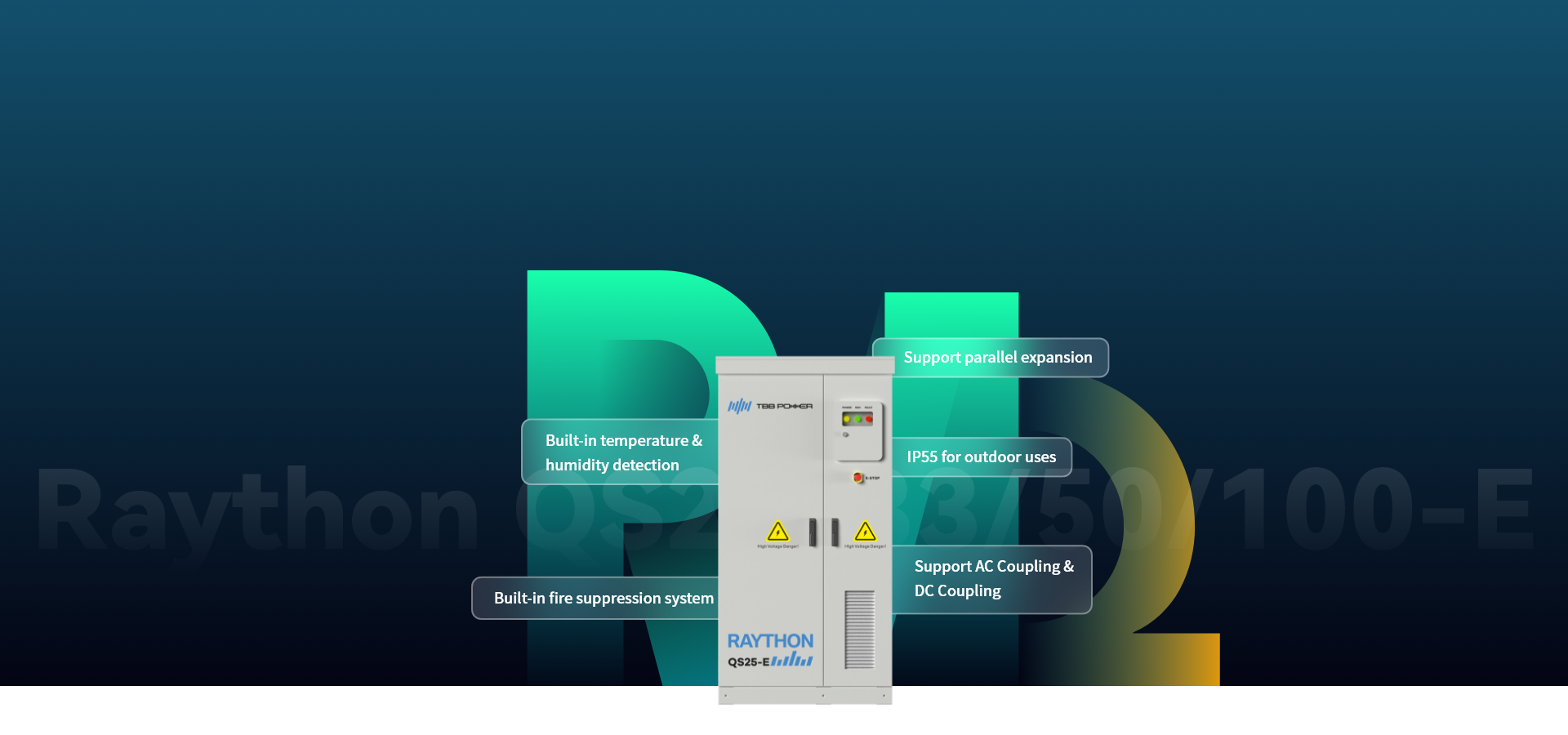

      Raython QS Series  integrated battery energy storage system product features

      Raython QS Series

      All-in-one Mini Grid & ESS System

      Raython QS Series

      25kW/33kW/50kW/100kW丨40kWh-215kWh

      Raython QS series is an all-in-one Mini Grid / Energy Storage System integrated with QomaSun25/33H-IR hybrid inverter or Qoma100H-R PCS (QS25-E: 1 unit of QomaSun25H-IR; QS33-E: 1 unit of QomaSun33H-IR; QS50-E: 2 units of QomaSun25H-IR; QS100-E: 1 unit of Qoma100H-R PCS and SP950-180 MPPT solar charge controller), AC power distribution unit, E-Hub energy management unit, EX5 (QS25/33-E)/EX18 (QS50-E/QS100-E) energy storage battery module, and BCU module to form a high-voltage integrated power supply system, for convenient installation and maintenance. As a versatile integrated system, Raython QS series boasts better performance, safer operation, smarter system management, more flexible system retrofitting, as well as more convenient uses.

      Built-in fire suppression systems

      Built-in fire suppression systems

      Built-in temperature & humidity detection

      Built-in temperature & humidity detection

      Parallel up to 15 units (1MW, 4.3MWh)

      Parallel up to 15 units (1MW, 4.3MWh)

      AC Coupling, DC Coupling or both

      AC Coupling, DC Coupling or both

      IP55 Rated

      IP55 Rated

      EMS functionality

      EMS functionality

      High-voltage integrated system

      High-voltage integrated system

      Remote monitoring and control via NOVA web & app

      Remote monitoring and control via NOVA web & app

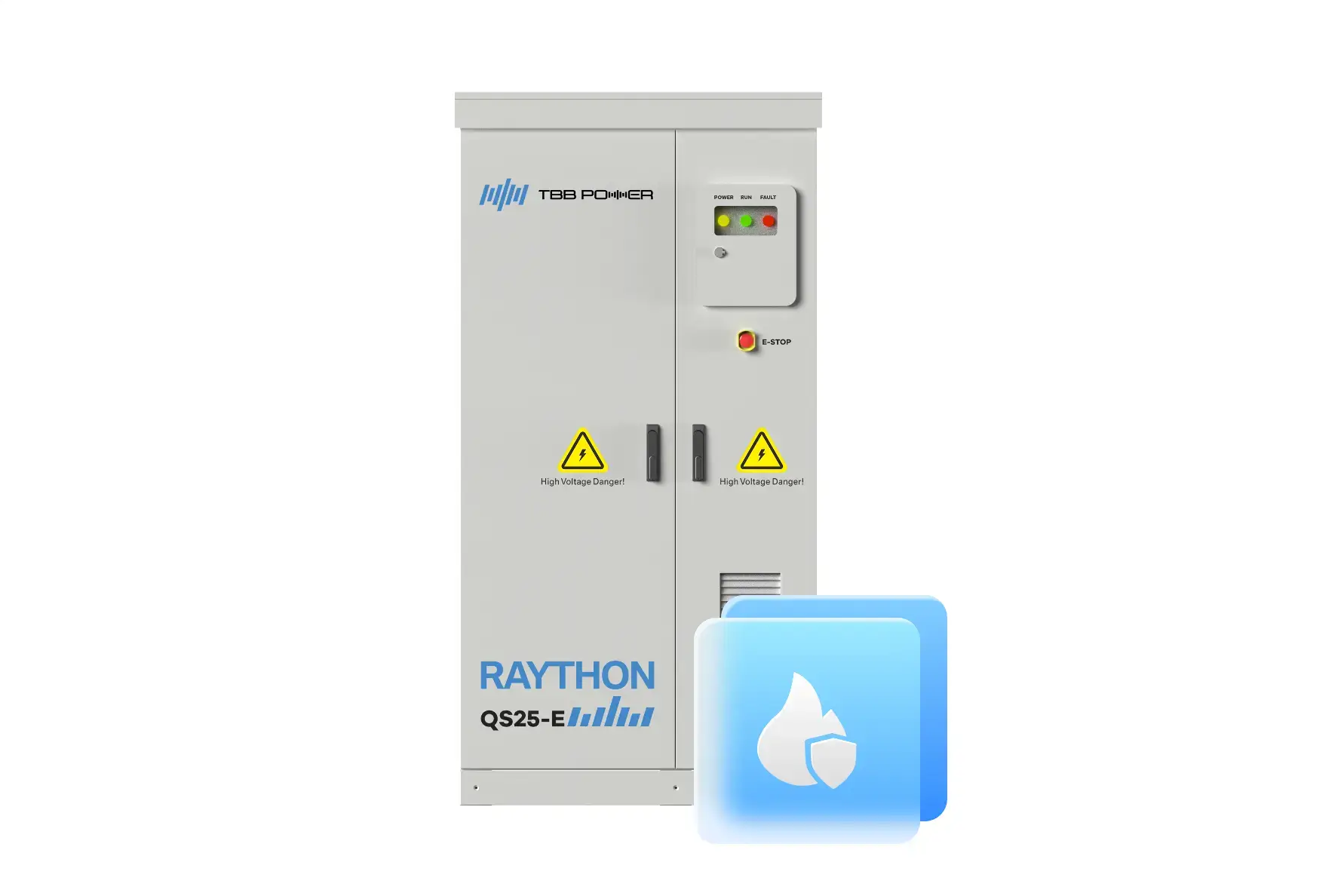

      Dual fire suppression systems

      Dual fire suppression systems

      The Raython QS25/33/50/100-E integrated dual-level fire suppression systems into both the battery module and cabinet compartment, effectively mitigating potential fire hazards and ensuring enhanced safety and reliability for the cabinet.

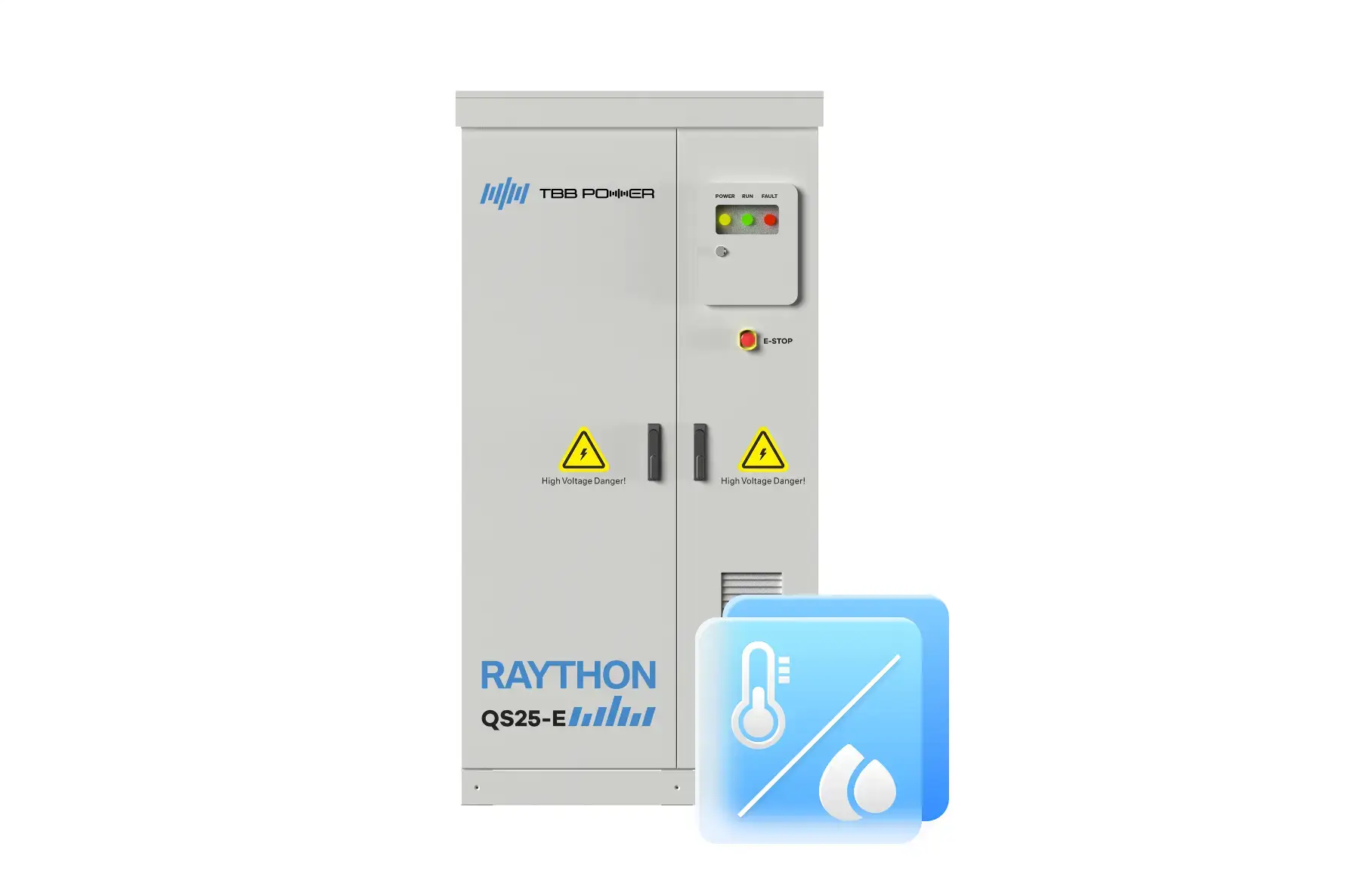

      Temperature & humidity detection

      Temperature & humidity detection

      Built-in with ambient temperature and humidity detection, the Raython QS25/33/50/100-E allows the monitoring of real-time temperature & humidity data, enabling proactive management and preventing potential issues caused by environmental fluctuations.

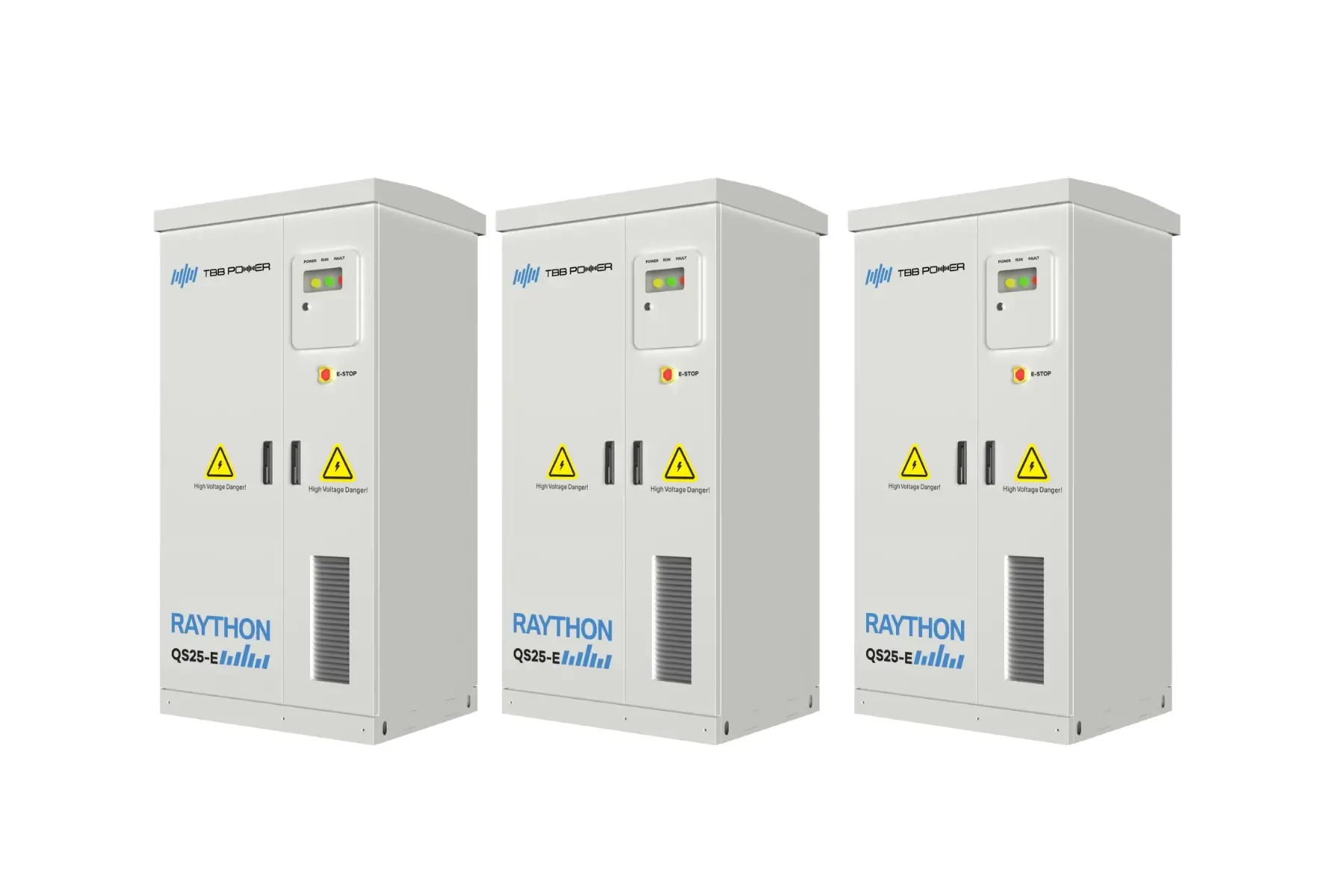

      Support parallel operation

      Support parallel operation

      The Raython QS25/33/50/100-E supports system expansion of up to 1MW, 4.3MWh (QS25-E: max. 15 units; QS33-E: max. 15 units; QS50-E: max. 7 units; QS100-E: max. 10 units). You can start with a smaller setup and scale up gradually, based on your requirements and budget.

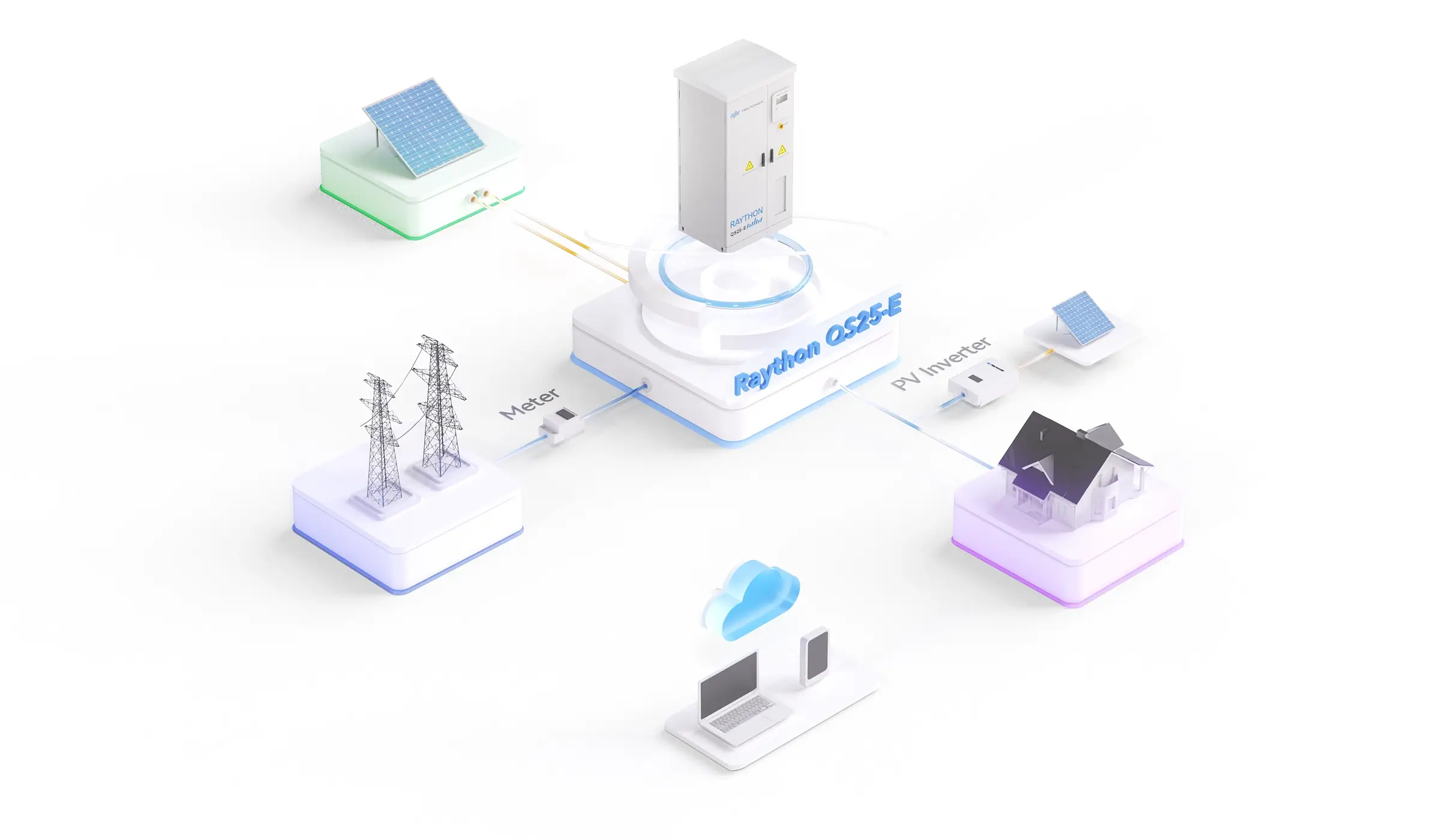

      Support AC & DC Coupling

      Support AC & DC Coupling

      Raython QS25/33/50/100-E supports an AC+DC Coupled PV system. Equipped with multiple MPPTs (QS25/33-E:2; QS50-E:4; QS100-E:1) to enable the formation of a DC Coupled PV ESS system, PV energy initially charges the batteries for nighttime backup and provides power for daytime loads. Meanwhile, the Raython QS series supports retrofitting an existing PV grid-tie system into an energy storage system through AC Coupling operation. When the grid fails in the daytime, the PV inverter can still keep generating electricity.

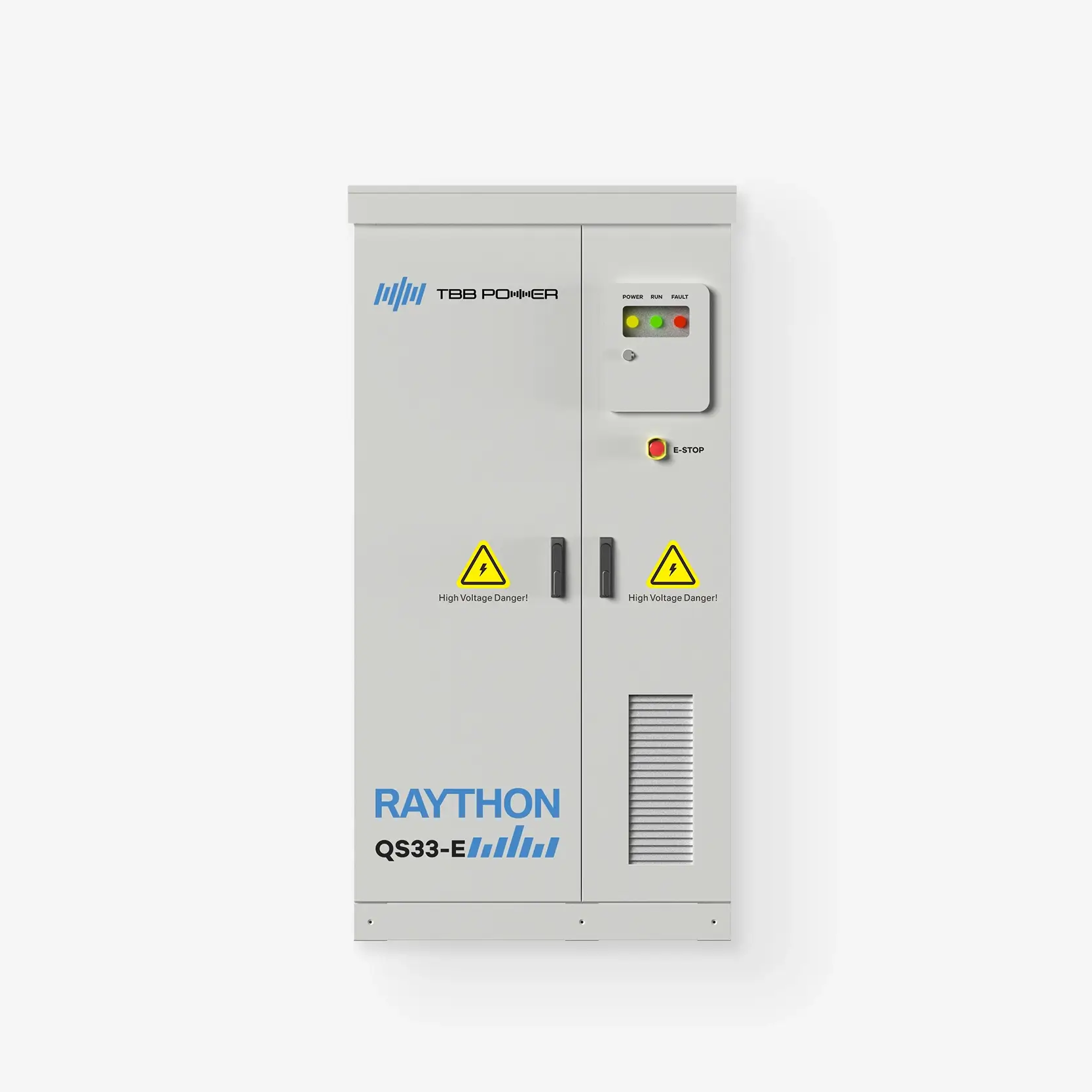

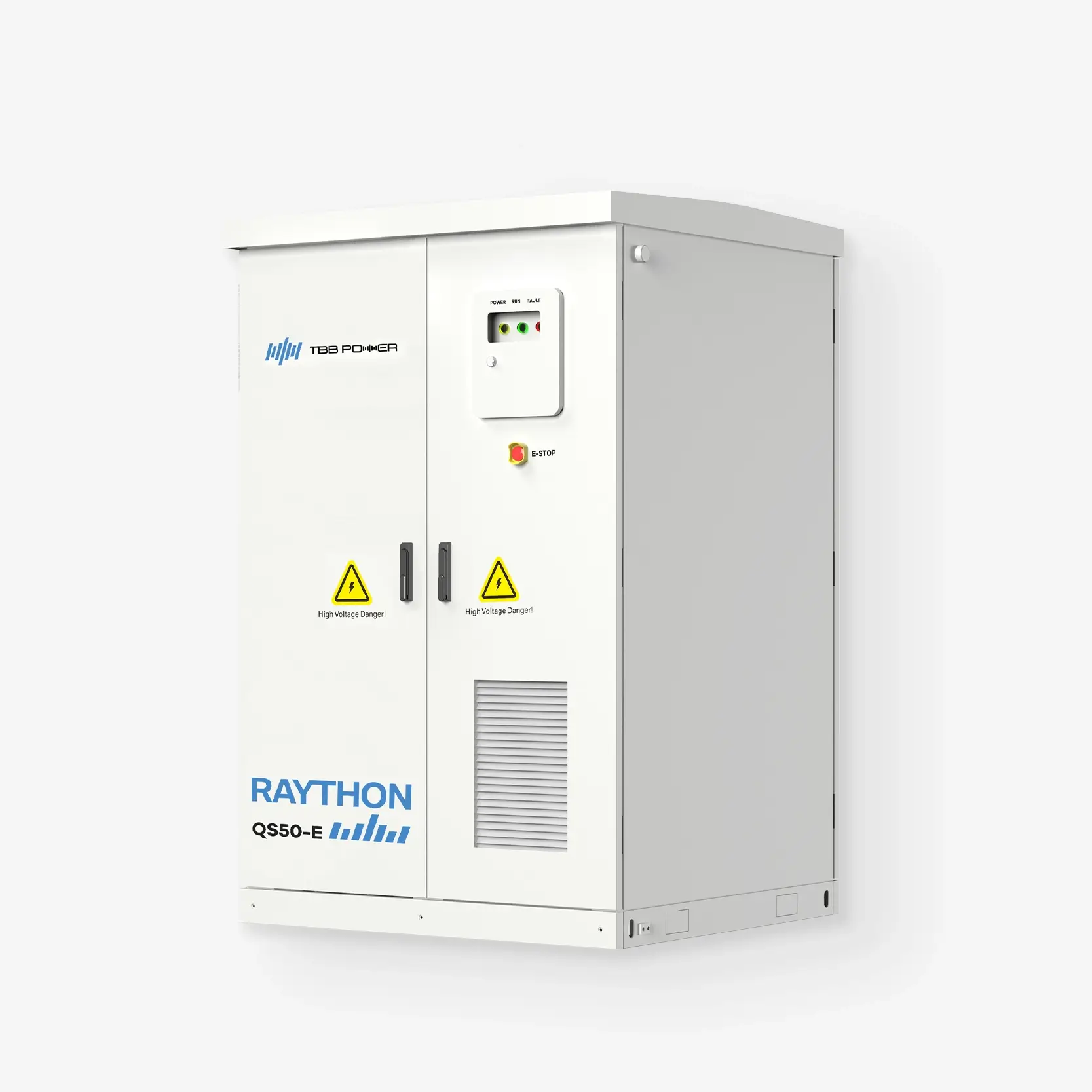

      Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applications

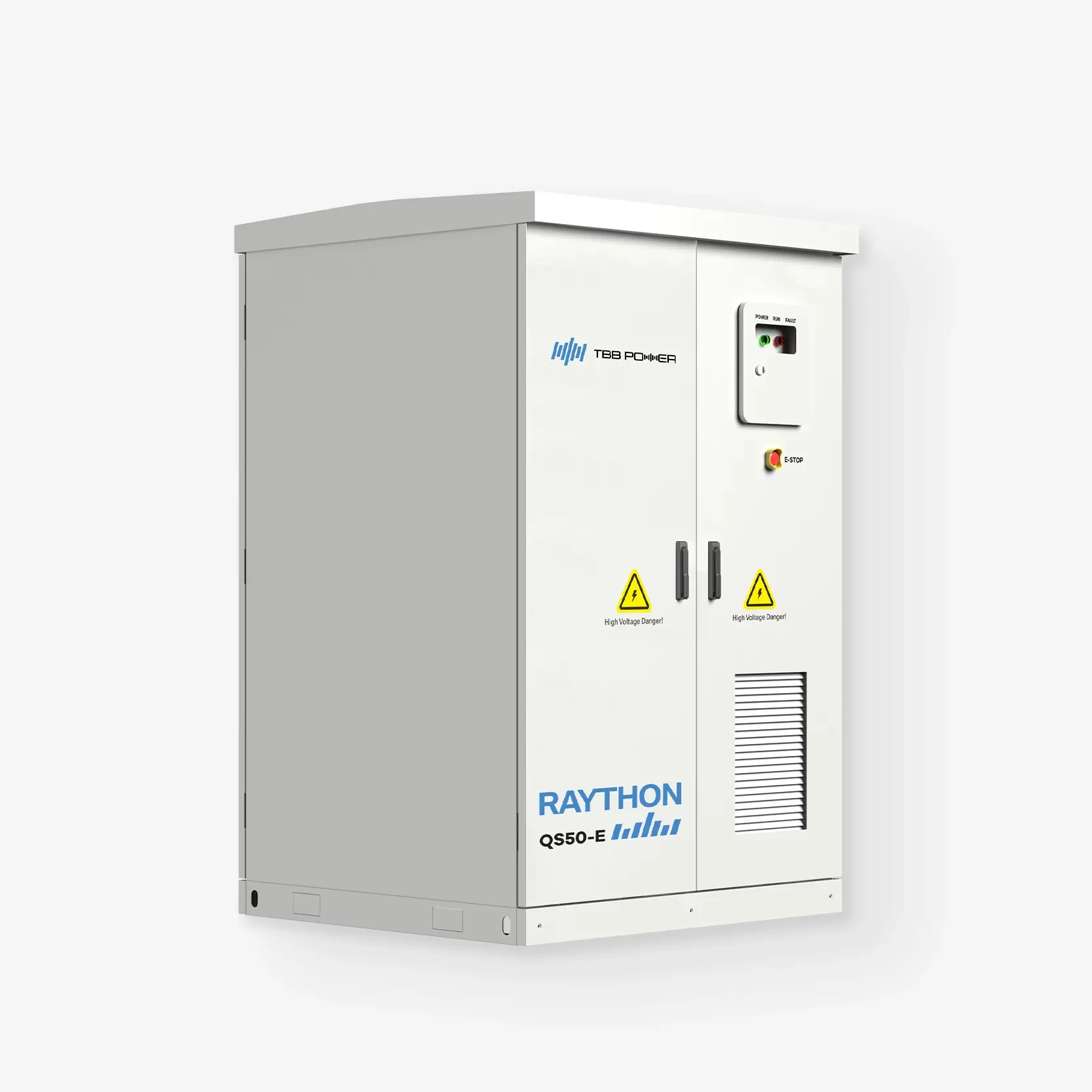

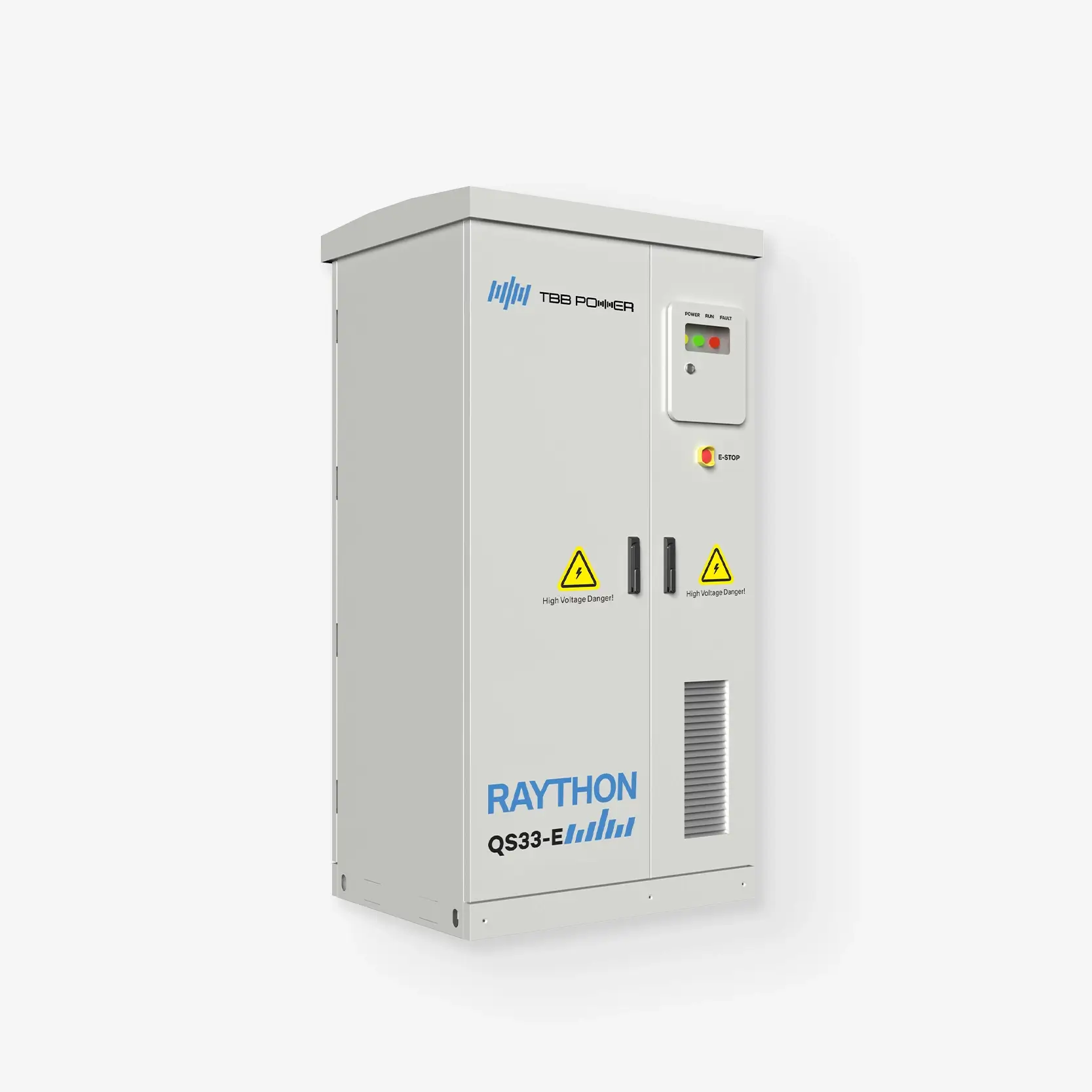

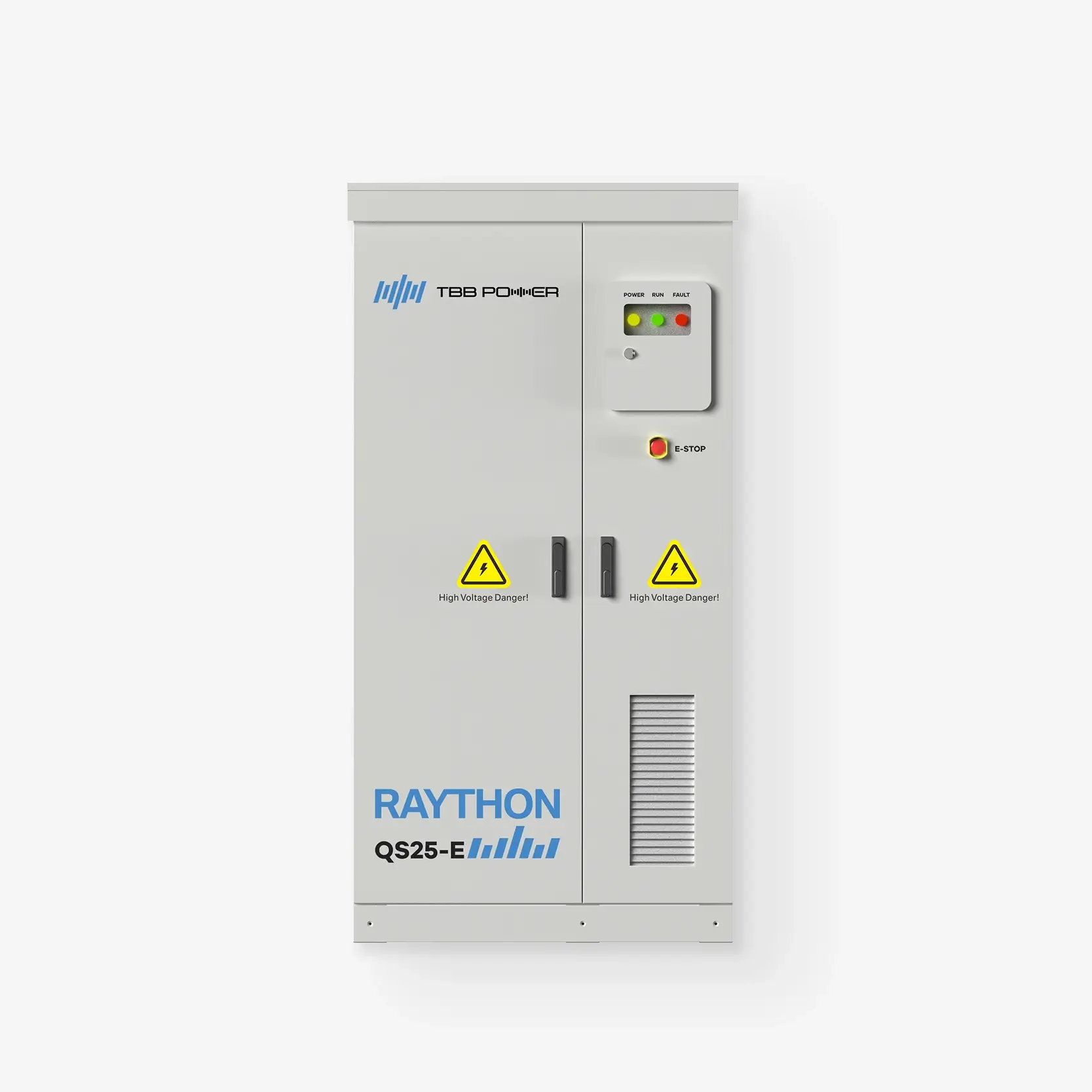

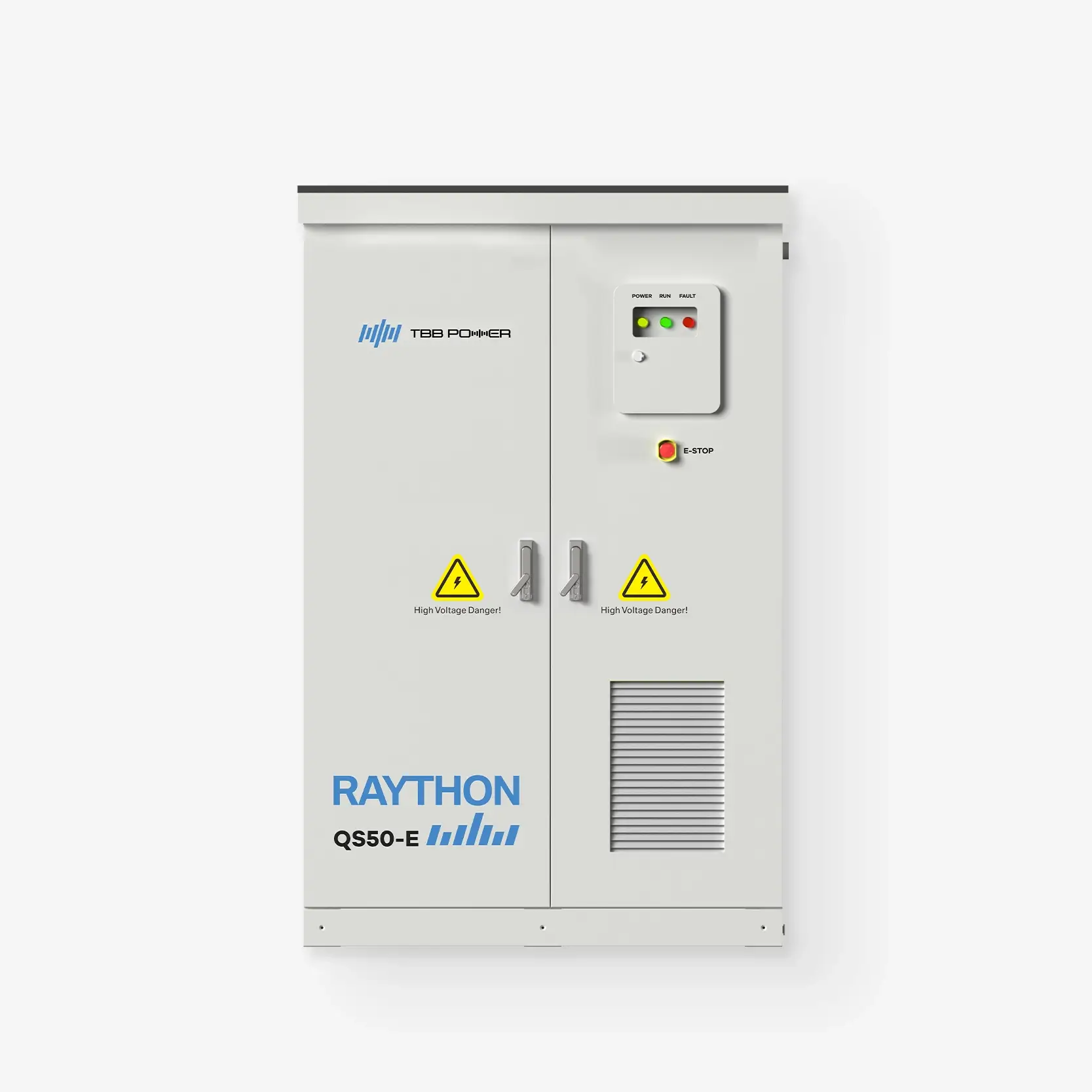

      product image of the Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython QS series all-in-one ESS for mini-grid & Industrial and commercial energy storage applications

      Specification

      • Nominal Output Power
        25kW
      • PV Open Circuit Voltage Range
        250V~850V
      • Maximum PV Power
        15+15kW
      • Battery Type
        LiFePO4
      • Battery Voltage Range
        320V~800V
      • Battery Capacity Range
        40/45/50kWh
      • Protection Index
        IP55
      • Nominal Output Power
        25kW
      • PV Open Circuit Voltage Range
        250V~850V
      • Maximum PV Power
        15+15kW
      • Battery Type
        LiFePO4
      • Battery Voltage Range
        320V~800V
      • Battery Capacity Range
        40/45/50kWh
      • Protection Index
        IP55
      • Nominal Output Power
        25kW
      • PV Open Circuit Voltage Range
        250V~850V
      • Maximum PV Power
        15+15kW
      • Battery Type
        LiFePO4
      • Battery Voltage Range
        320V~800V
      • Battery Capacity Range
        40/45/50kWh
      • Protection Index
        IP55
      • Nominal Output Power
        25kW
      • PV Open Circuit Voltage Range
        250V~850V
      • Maximum PV Power
        15+15kW
      • Battery Type
        LiFePO4
      • Battery Voltage Range
        320V~800V
      • Battery Capacity Range
        40/45/50kWh
      • Protection Index
        IP55

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
