      All-in-one Mini Grid & ESS System
      Raython Q33
      Download PDF
      Raython Q33 all-in-one energy storage system for mini-grid & Industrial and commercial energy storage applications product features

      Raython Q33

      All-in-one Mini Grid & ESS System

      Raython Q33

      33kW, 60kWh-75kWh

      TBB Raython Q33 features a modular design, integrating PCS Qoma33H-R, AC power distribution unit, E7 monitoring screen, EX5 energy storage battery module, E-Hub energy management system, and BCU module to form a high-voltage integrated power supply system, for convenient installation and maintenance. It is designed for backup power, mini-grid, and ESS applications, with flexible configuration and seamless transfer.

      Built-in fire suppression systems

      Built-in fire suppression systems

      Expandable to 330kW, 1.5MWh (10 units)

      Expandable to 330kW, 1.5MWh (10 units)

      AC Coupling

      AC Coupling

      High-voltage integrated system

      High-voltage integrated system

      All-in-one design for easy installation

      All-in-one design for easy installation

      Factory assembled and tested system

      Factory assembled and tested system

      24/7 local monitoring and control on E7

      24/7 local monitoring and control on E7

      System remote monitoring on NOVA

      System remote monitoring on NOVA

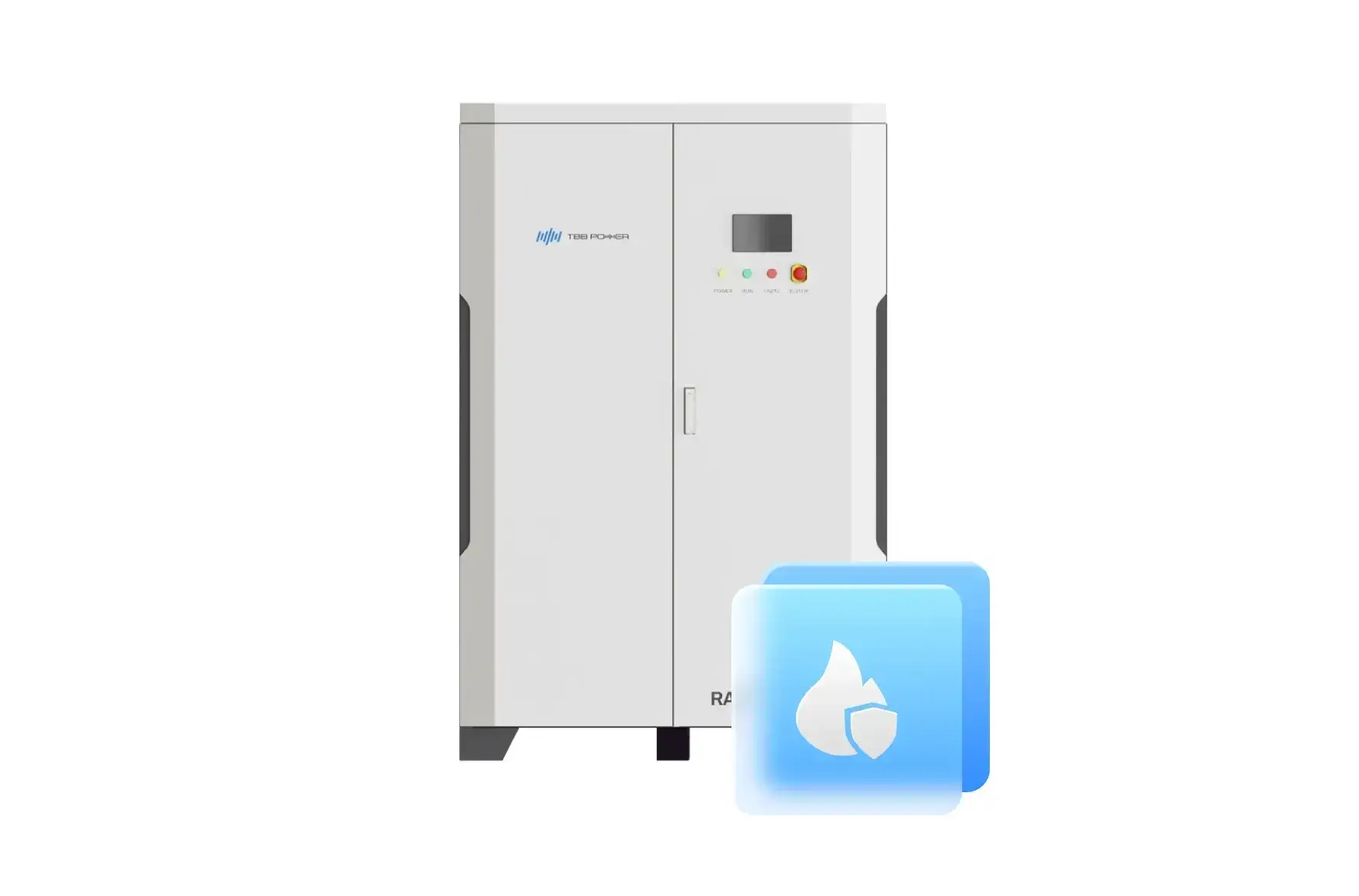

      Dual fire suppression systems

      Dual fire suppression systems

      The Raython Q33 integrates dual-level fire suppression systems into both the battery module and cabinet compartment, effectively mitigating potential fire hazards and ensuring enhanced safety and reliability for the cabinet.

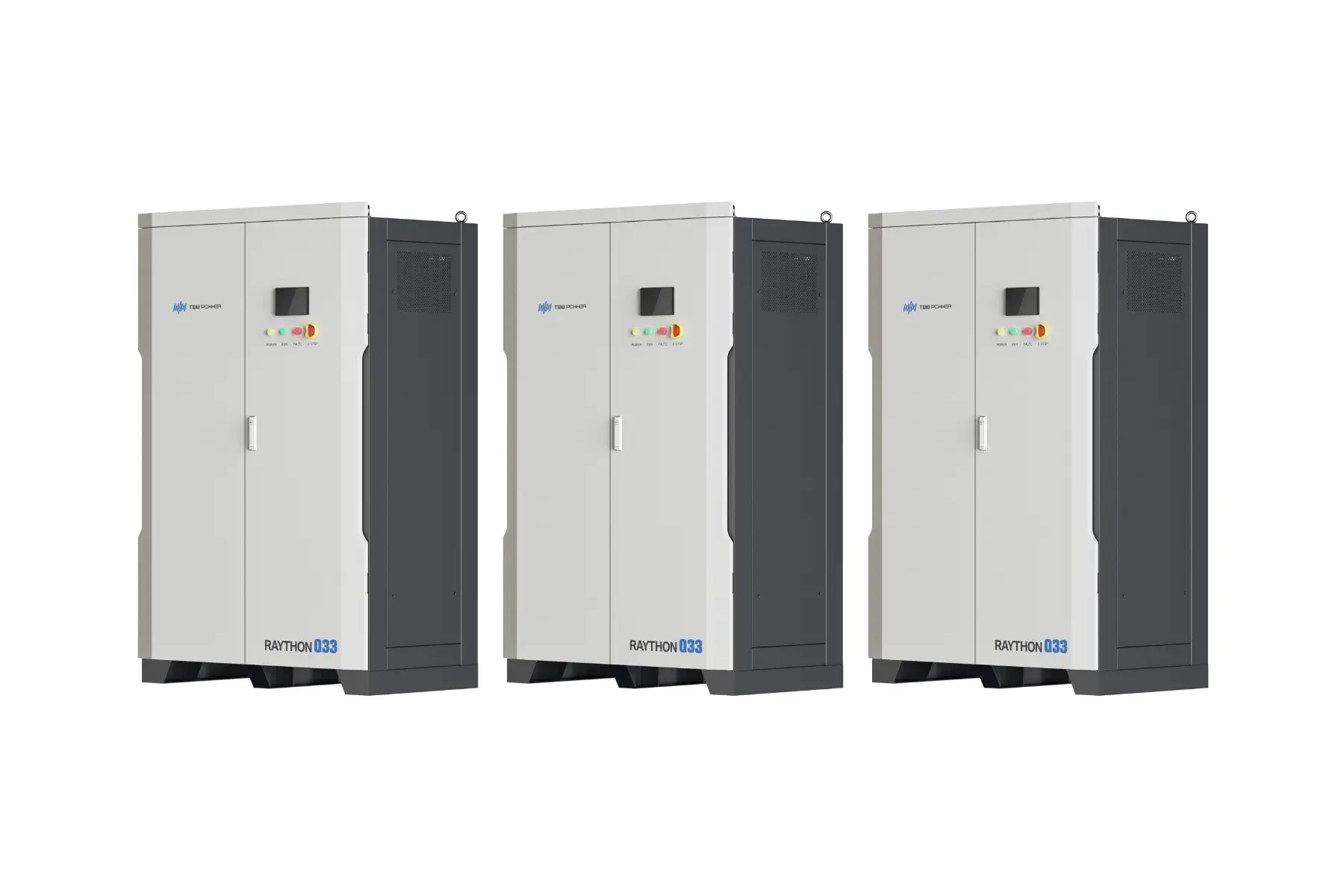

      Support parallel operation

      Support parallel operation

      The Raython Q33 supports system expansion up to 330kW, 1.5MWh (10 units). You can start with a smaller setup and scale up gradually, based on your requirements and budget.

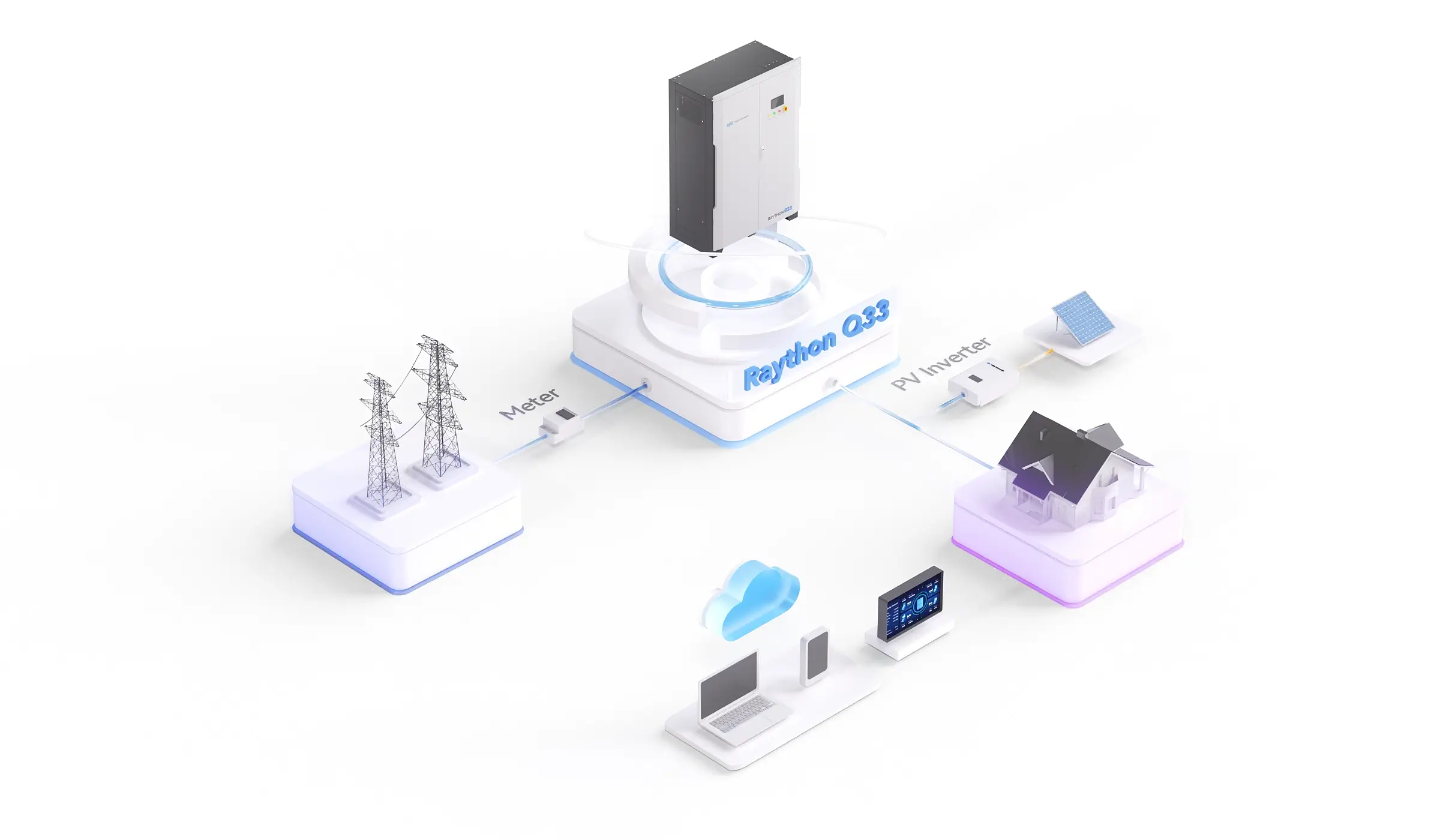

      Support AC Coupling

      Support AC coupling

      The Raython Q33 supports retrofitting an existing PV grid-tie system into an energy storage system through AC Coupling operation. When the grid fails in the daytime, the PV inverter can still keep generating electricity.

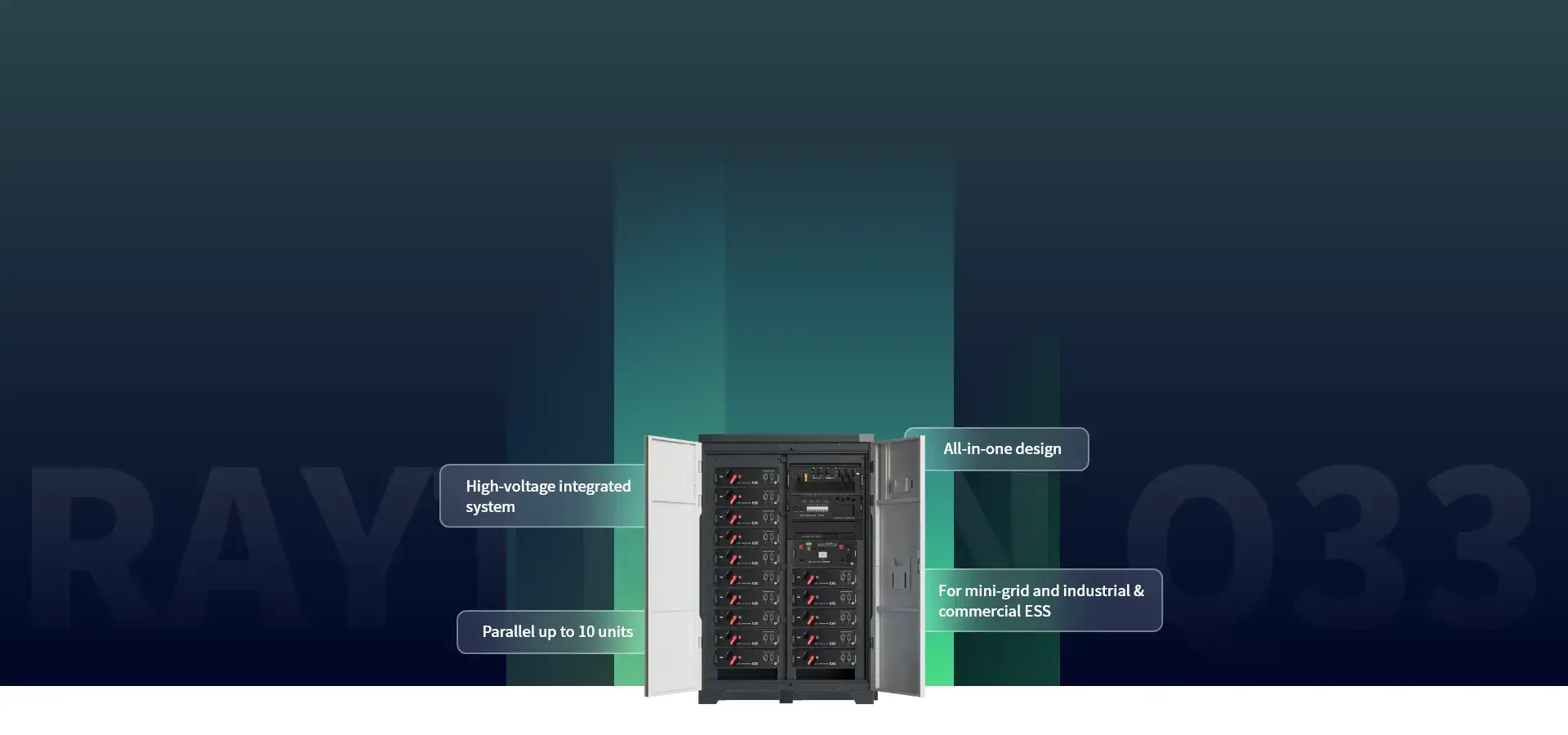

      Raython Q33 all-in-one energy storage system for mini-grid & Industrial and commercial energy storage applications

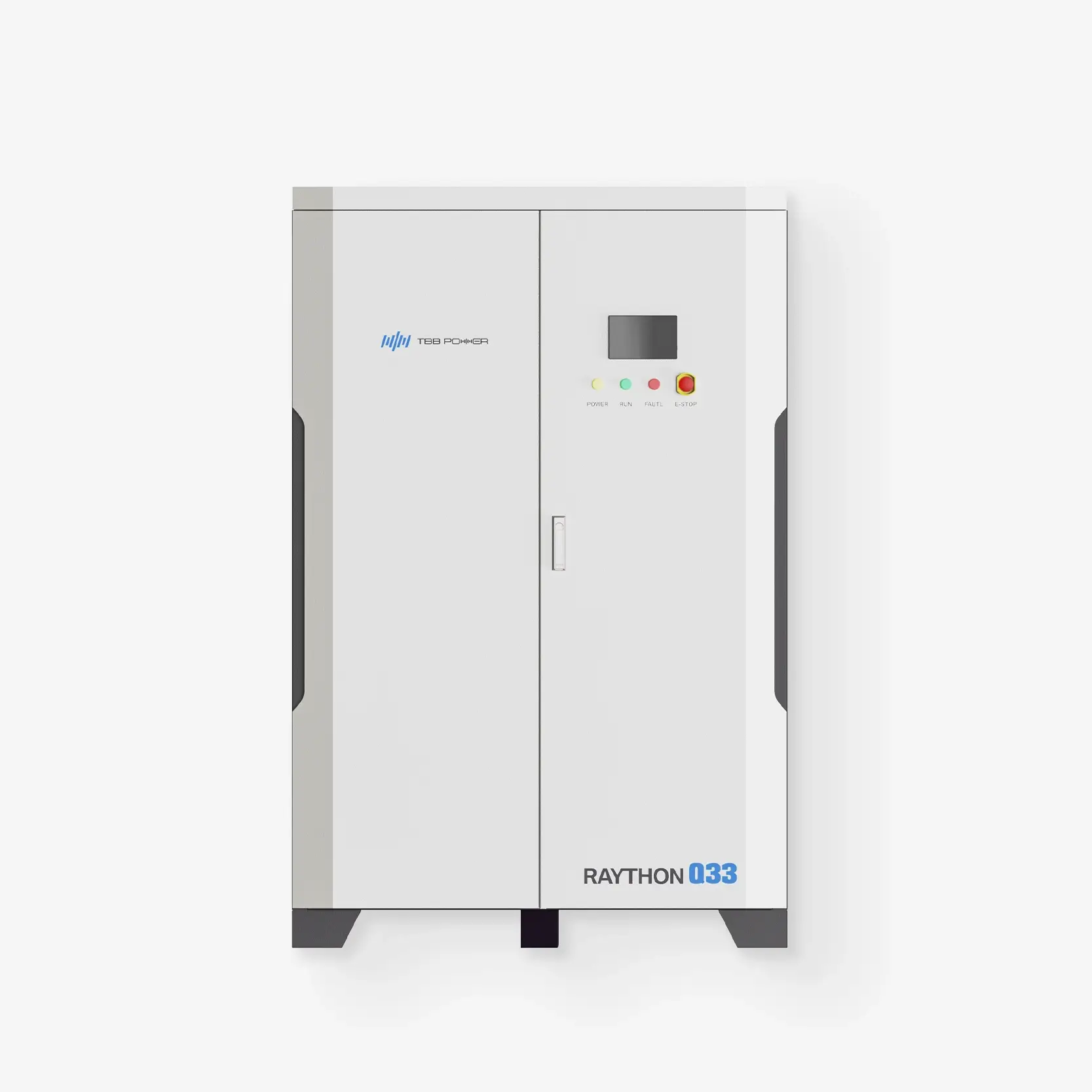

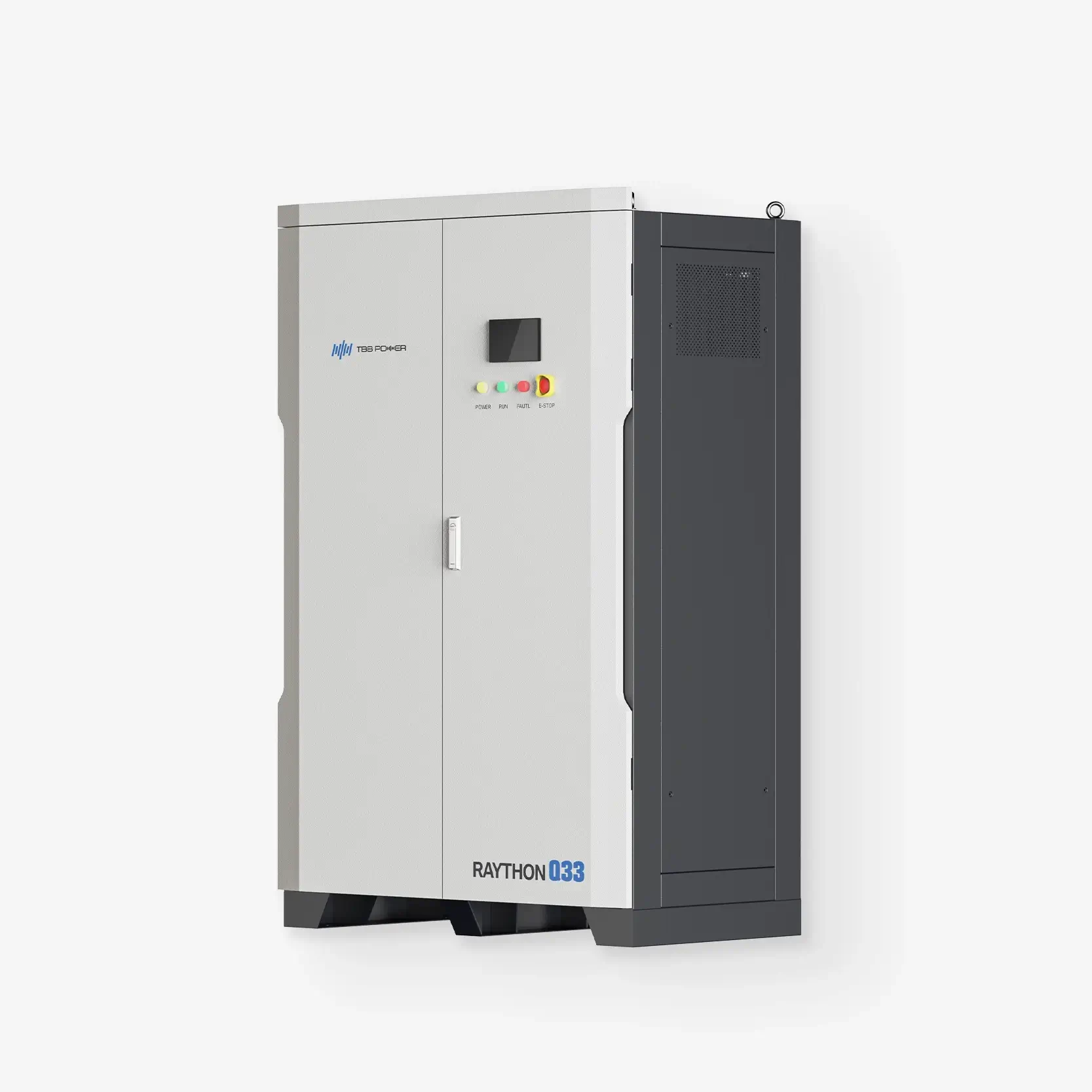

      Raython Q33 integrated battery energy storage system product imageRaython Q33 integrated battery energy storage system product imageRaython Q33 integrated battery energy storage system product imageRaython Q33 integrated battery energy storage system product image

      Specification

      • Raython Q33

      • Nominal Output Power
        33kW
      • Battery Type
        LFP
      • Battery Capacity Range
        60kWh~75kWh (90% DoD)
      • Battery Voltage Range
        400~850V
      • IP Protection
        IP20

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
