      All-in-one Mini Grid & ESS System
      Raython Q100-E
      Download PDF
      product features of the Raython Q100-e all-in-one ESS for mini-grid & Industrial and commercial energy storage applications

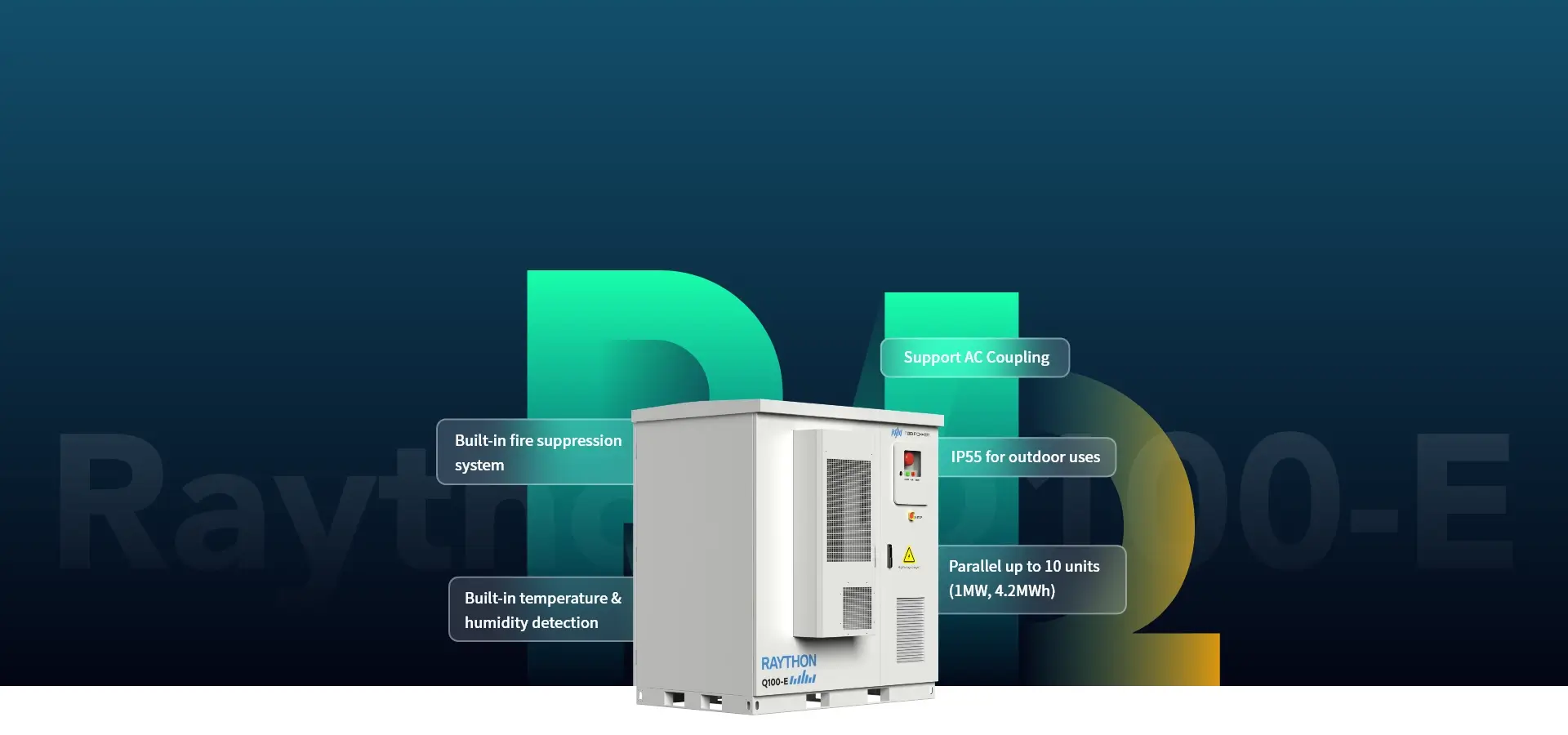

      Raython Q100-E

      All-in-one Mini Grid & ESS System

      Raython Q100-E

      100kW, 215kWh

      Raython Q100-E is an all-in-one Mini Grid / Energy Storage System integrated with Qoma100H-R PCS, AC power distribution unit, E-Hub energy management unit, EX18 energy storage battery module, and BCU module to form a high-voltage integrated power supply system, for convenient installation and maintenance. As a versatile integrated system, Raython Q100-E boasts better performance, safer operation, smarter system management, more flexible system retrofitting, as well as more convenient uses.

      Built-in fire suppression systems

      Built-in fire suppression systems

      Built-in temperature & humidity detection

      Built-in temperature & humidity detection

      Parallel up to 10 units (1MW, 4.3MW)

      Parallel up to 10 units (1MW, 4.3MW)

      AC Coupling

      AC Coupling

      IP55 Rated

      IP55 Rated

      High-voltage integrated system

      High-voltage integrated system

      EMS functionality

      EMS functionality

      Remote monitoring and control via NOVA web & app

      Remote monitoring and control via NOVA web & app

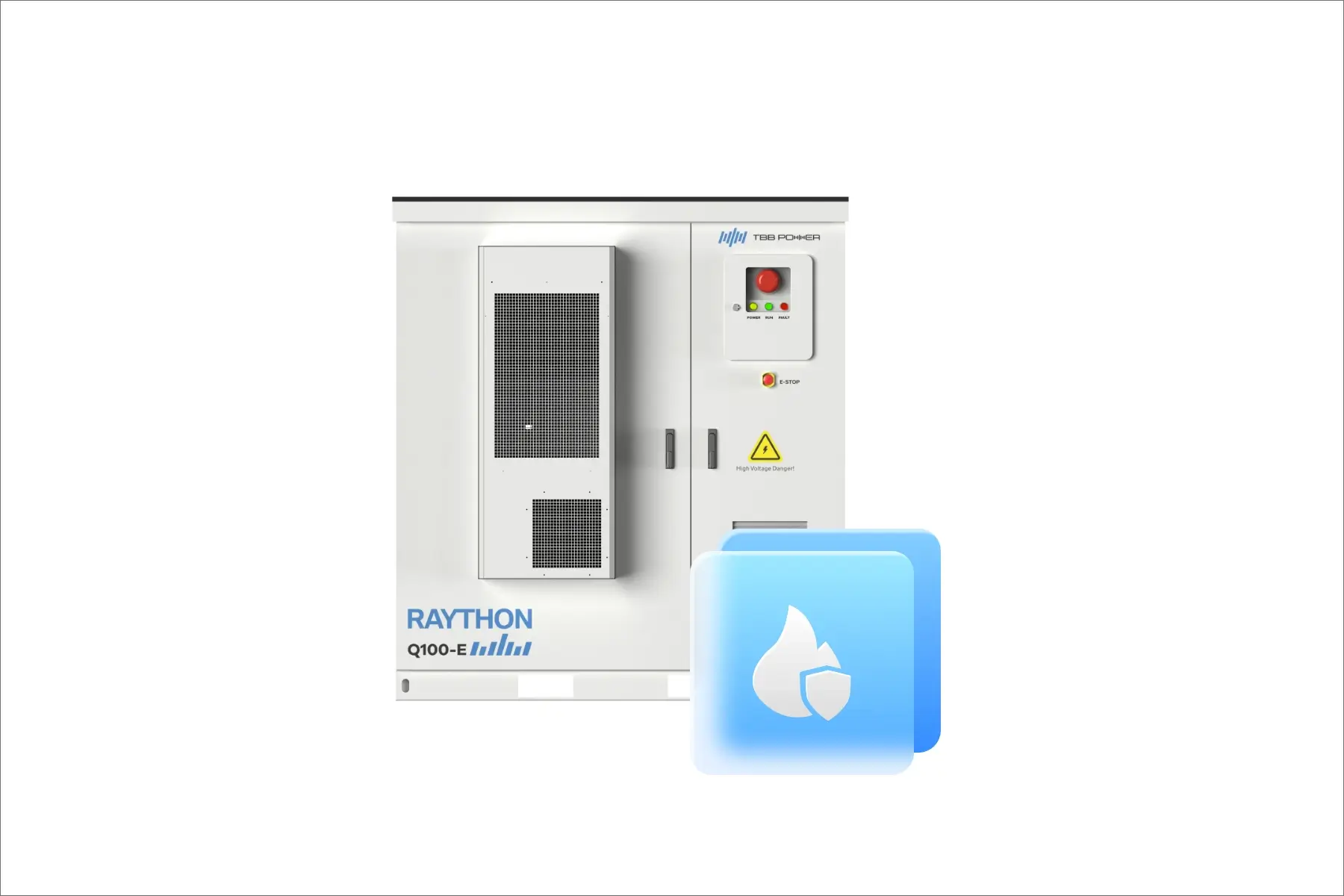

      Dual fire suppression systems

      Dual fire suppression systems

      The Raython Q100-E integrates dual-level fire suppression systems into both the battery module and cabinet compartment, effectively mitigating potential fire hazards and ensuring enhanced safety and reliability for the cabinet.

      Temperature & humidity detection

      Temperature & humidity detection

      Built-in with ambient temperature and humidity detection, the Raython Q100-E allows the monitoring of real-time temperature & humidity data, enabling proactive management and preventing potential issues caused by environmental fluctuations.

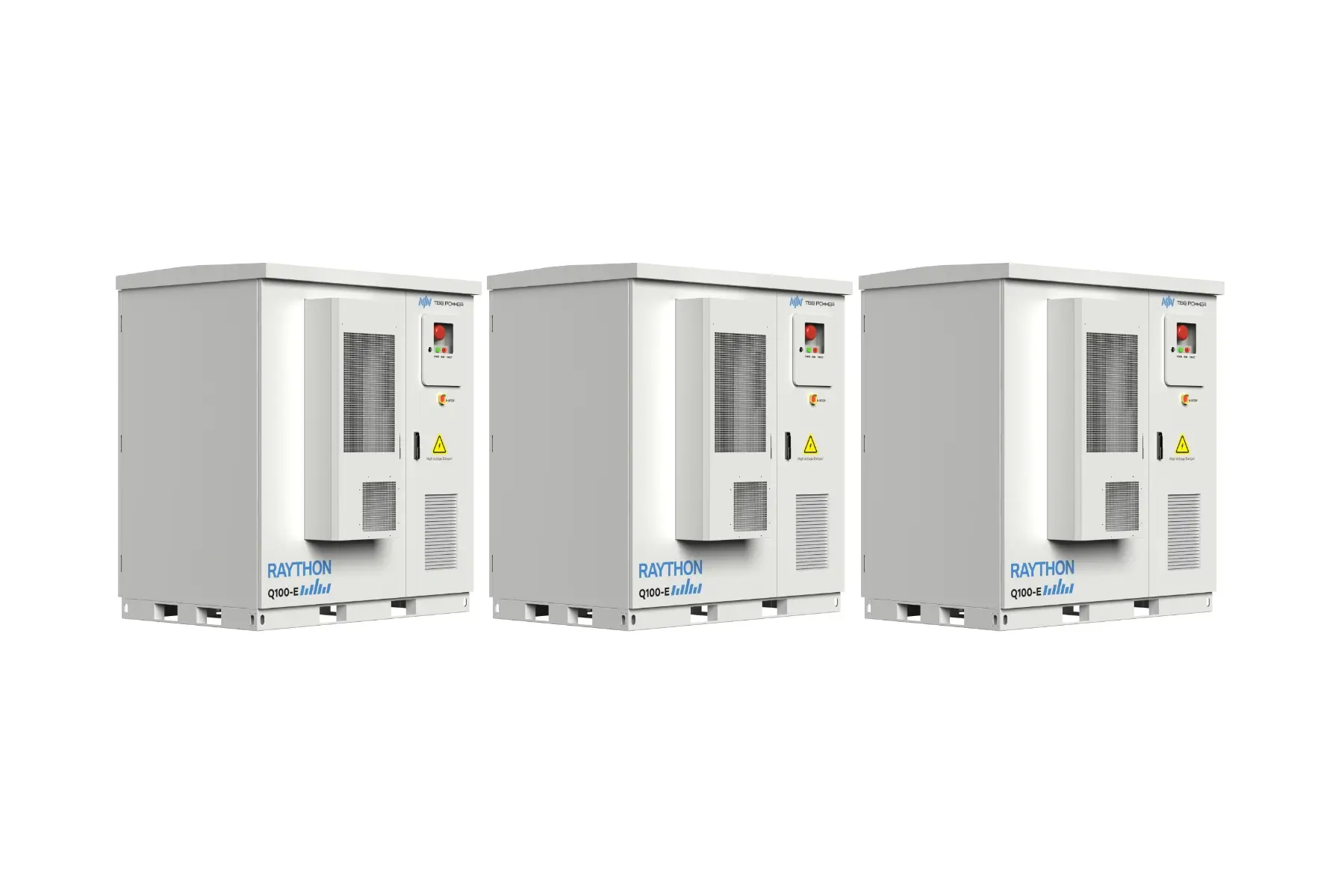

      Support parallel operation

      Support parallel operation

      The Raython Q100-E supports system expansion of up to 1MW, 4.3MWh (10 units). You can start with a smaller setup and scale up gradually, based on your requirements and budget.

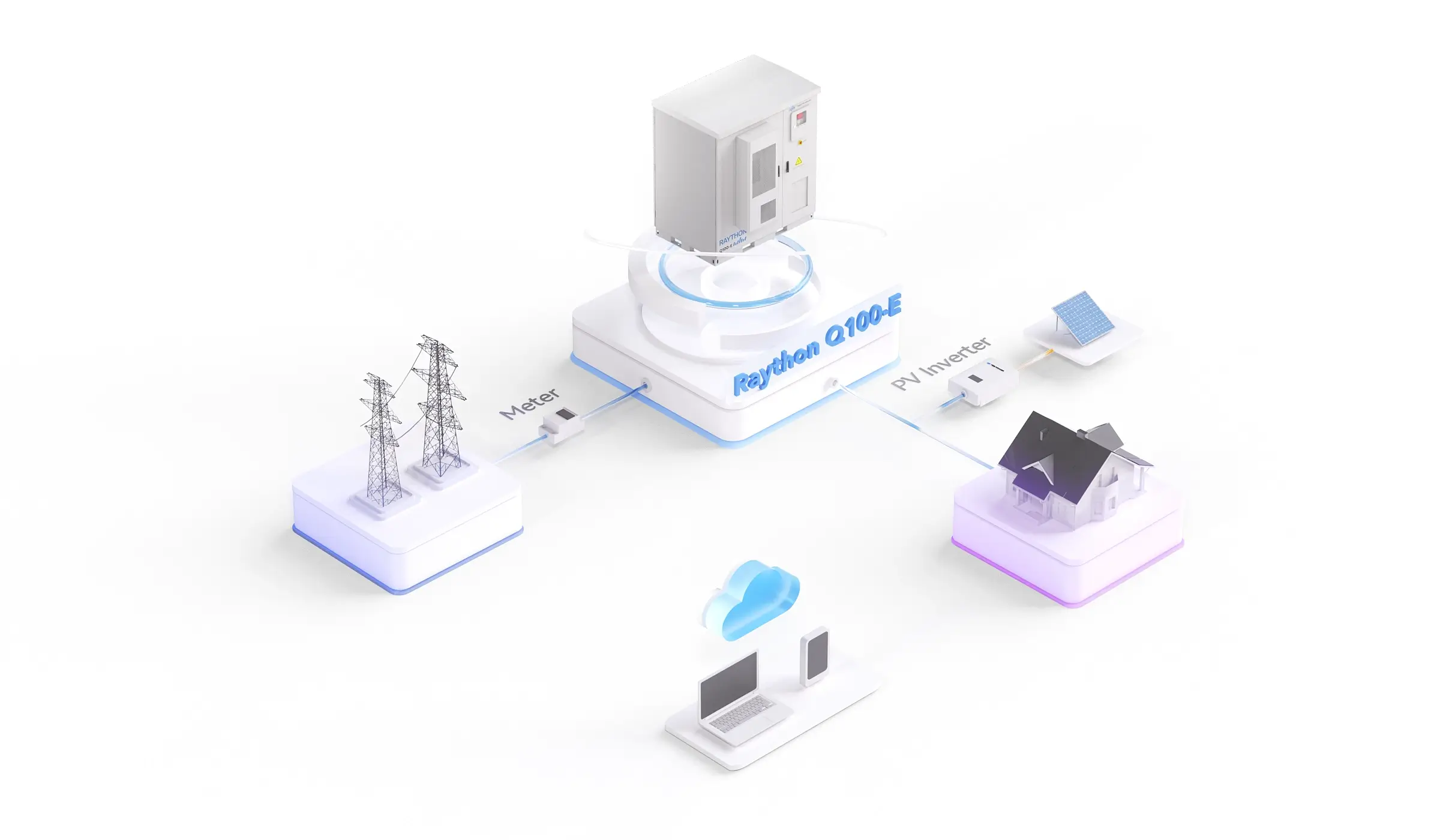

      Support AC Coupling

      Support AC coupling

      The Raython Q100-E supports retrofitting an existing PV grid-tie system into an energy storage system through AC Coupling operation. When the grid fails in the daytime, the PV inverter can still keep generating electricity.

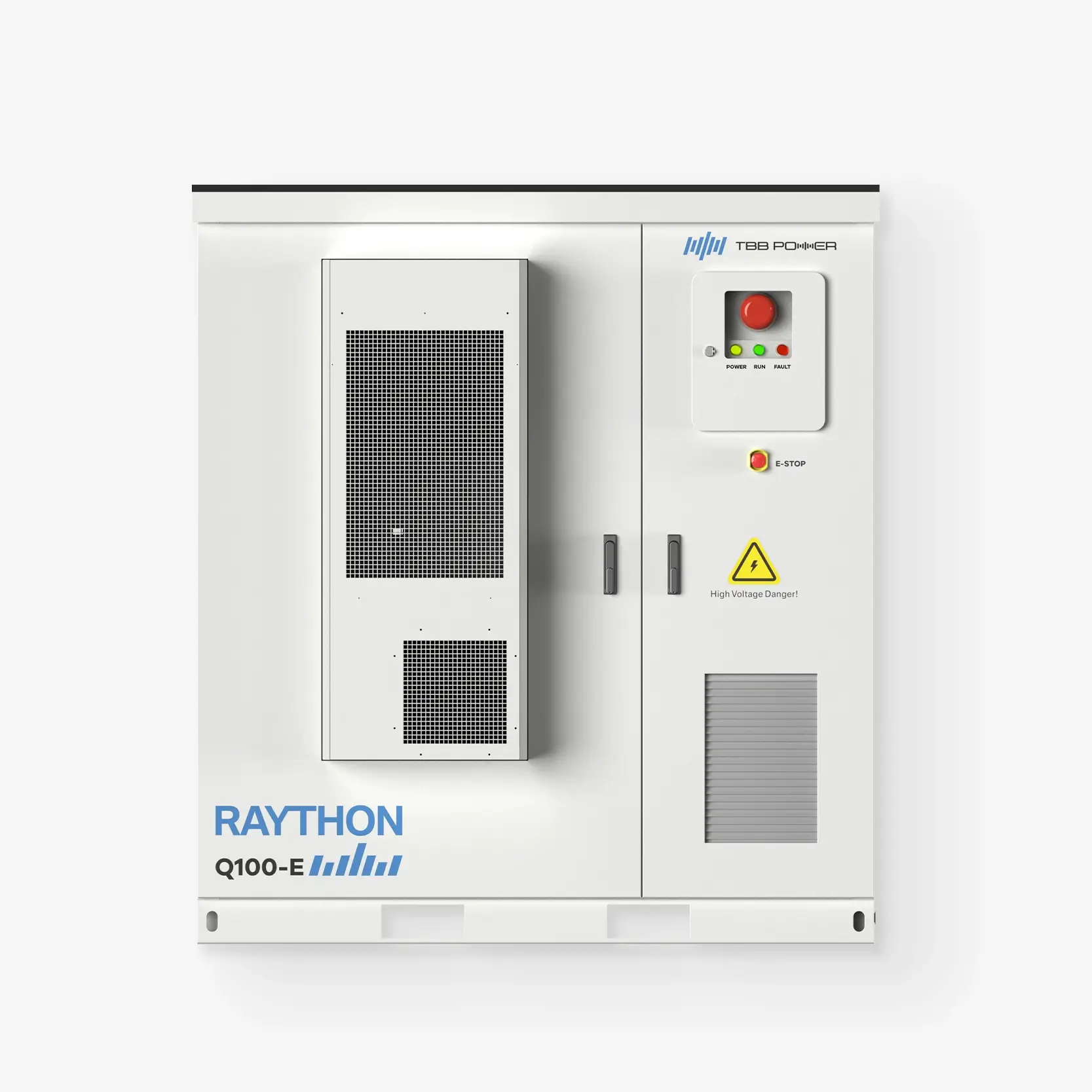

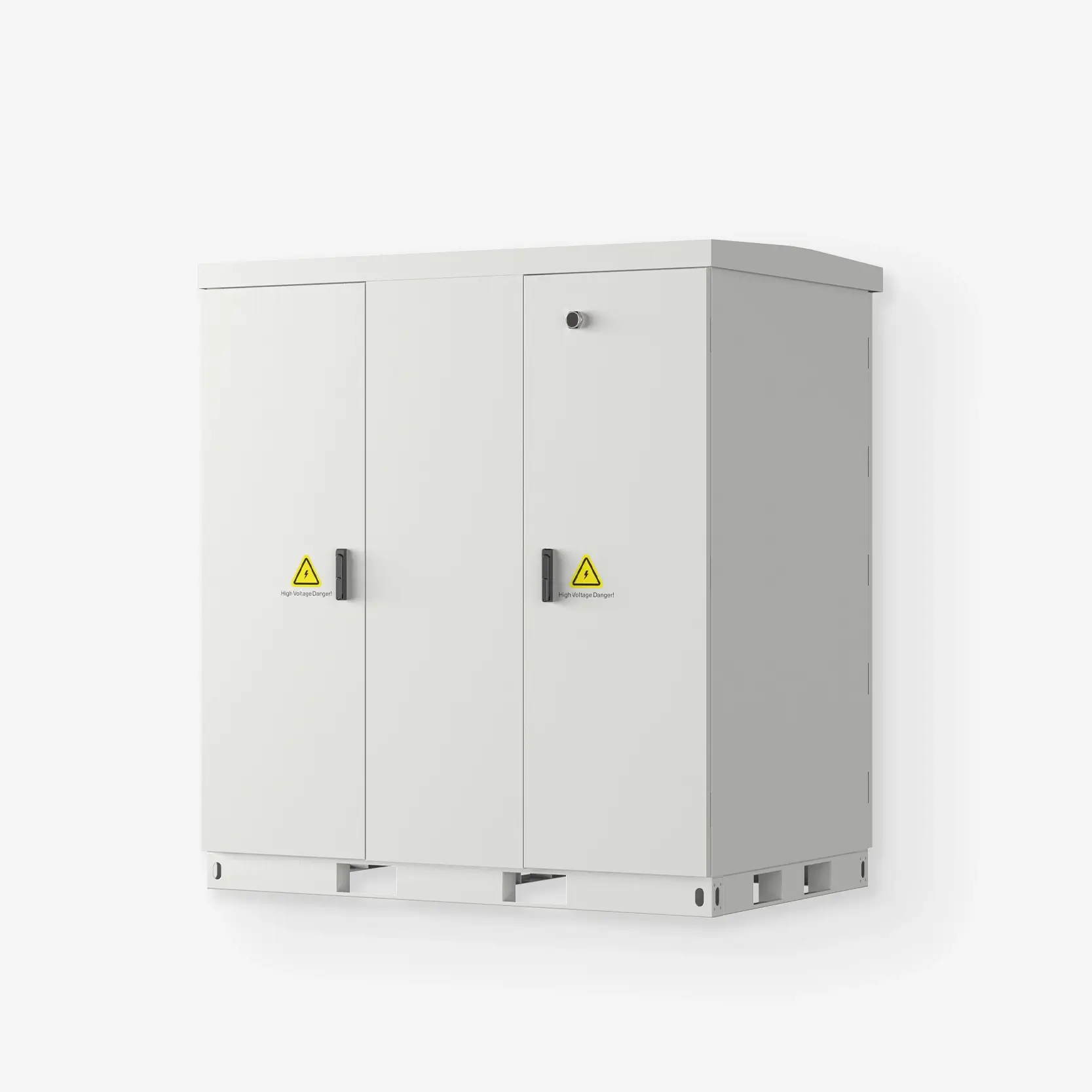

      Raython Q100-E all-in-one ESS for mini-grid & Industrial and commercial energy storage applications

      product image of the Raython Q100-e series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython Q100-e series all-in-one ESS for mini-grid & Industrial and commercial energy storage applicationsproduct image of the Raython Q100-e series all-in-one ESS for mini-grid & Industrial and commercial energy storage applications

      Specification

      • Raython Q100-E

      • Nominal Output Power
        100kW
      • Battery Type
        LiFePO4
      • Battery Voltage Range
        650V~900V
      • Battery Capacity Range
        215kWh
      • IP Protection
        IP55

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
