      All-in-one Integrated Solution
      Raython Model 0/1
      Download PDF

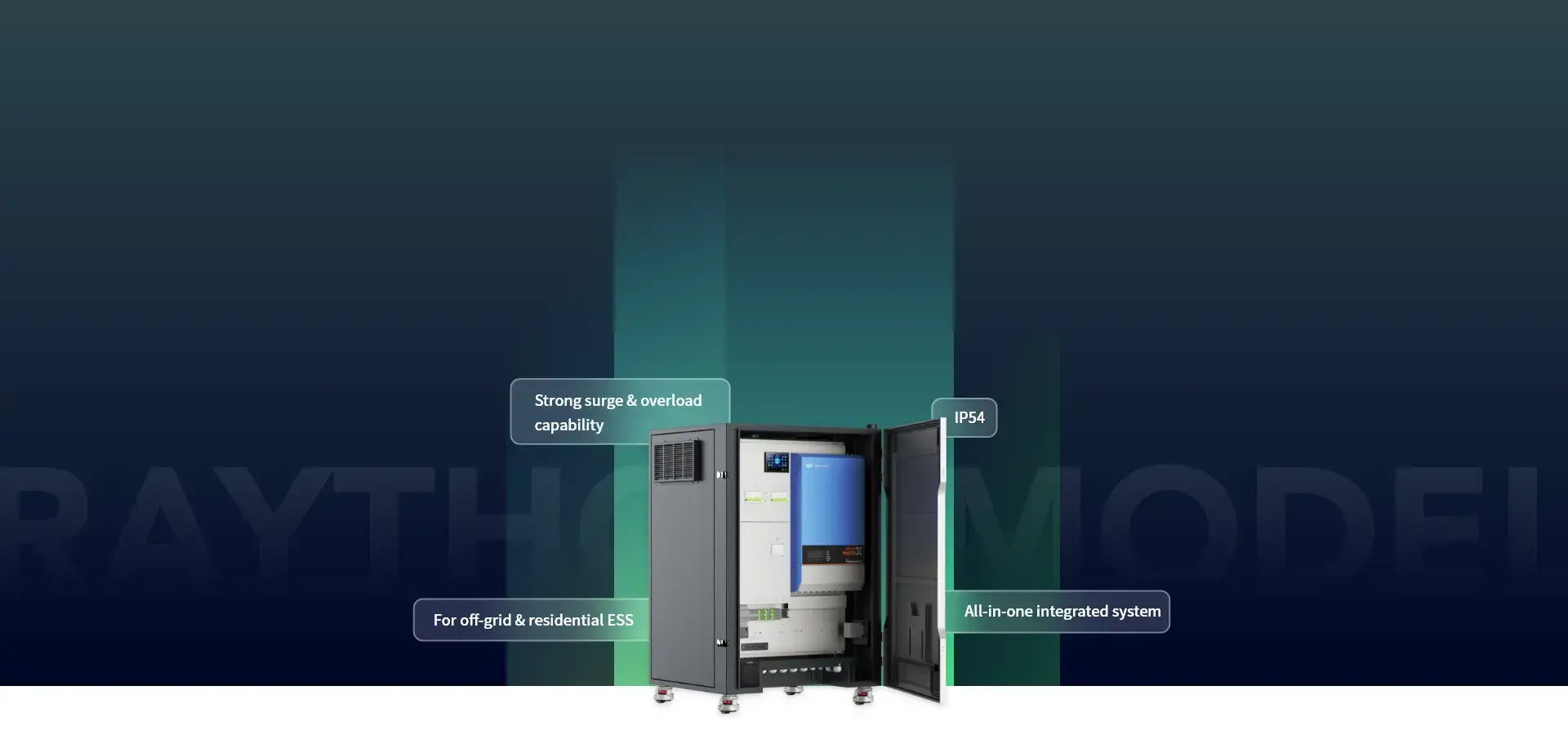

      Raython Model 0/1 integrated off-grid and grid-tie system product features

      Raython Model 0/1

      All-in-one Integrated Solution

      Raython Model 0/1

      3kW/5kW, 5.04kWh-20.16kWh

      The Raython Model 0/1 system is an all-in-one standalone solar power system for off-grid and residential ESS applications, to provide an independent power supply and maximize self-consumption with solar and save electricity bills. The Raython Model 0/1 system is expertly assembled, tested, and shipped as a complete system respectively, integrating a solar hybrid inverter, lithium battery modules, E4 LCD Monitor, and power distribution into one system. On arrival, Raython Model 0/1 system is ready to install, and the all-in-one design makes them easy to install and saves your precious time.

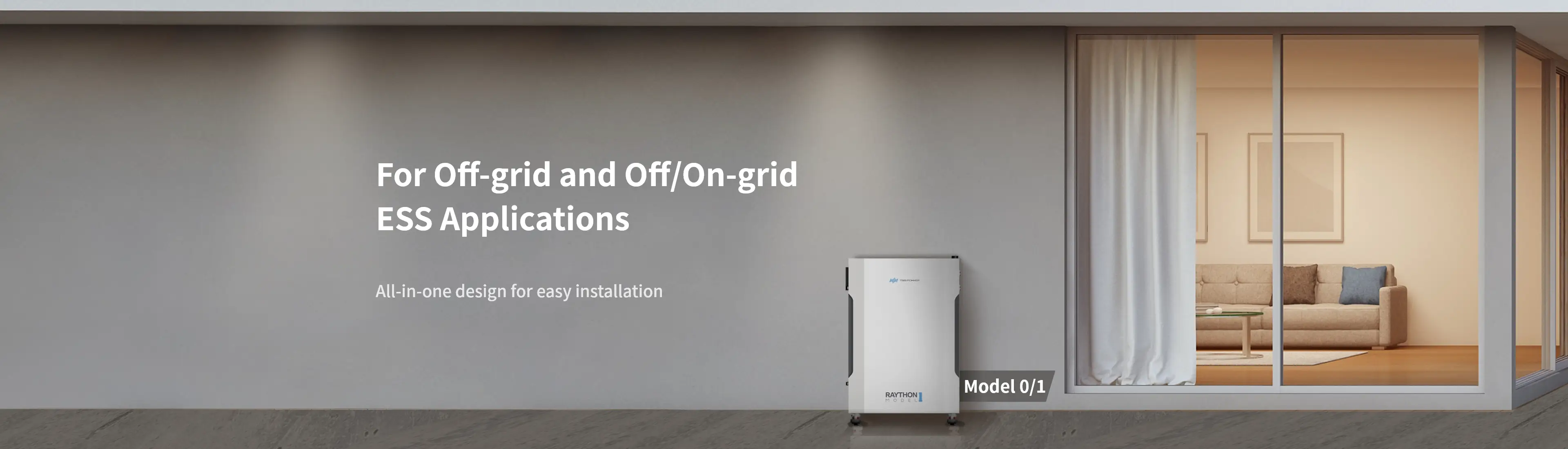

      For off-grid & residential ESS

      For off-grid & residential ESS

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      All-in-one design for easy installation

      All-in-one design for easy installation

      IP54

      IP54

      Factory assembled and tested system

      Factory assembled and tested system

      ESS capability

      ESS capability

      Leakage protect function

      Leakage protect function

      Built-in AGS function for generator

      Built-in AGS function for generator

      Power assist & power control

      Power assist & power control

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via NOVA

      Remote monitoring and control via NOVA

      ECO-friendly

      ECO-friendly

      Power Control maximizes the use of limited AC power and protect it from overload

      Power Control: maximizes the use of limited AC source and protect it from overload

      Raython Model 0/1 can automatically adjust its charging current by taking loads into account and only using the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Raython Model 0/1 can also keep generators running at their optimum power level.

      Power Assist enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Raython Model 0/1 will discharge the battery to supply power to compensate for the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

      Uninterruptible AC power (UPS function)

      Uninterruptible AC power (UPS function)

      When the produced solar energy is more than needed, Raython Model 0/1 will use the surplus to charge the batteries. In the event of a grid failure, or when the generator power is disconnected, the inverter within the Raython Model 0/1 will be automatically activated and discharge the batteries to supply the connected loads. This happens seamlessly in 0ms so that your sensitive or any other electronic equipment will continue to operate without interruption.

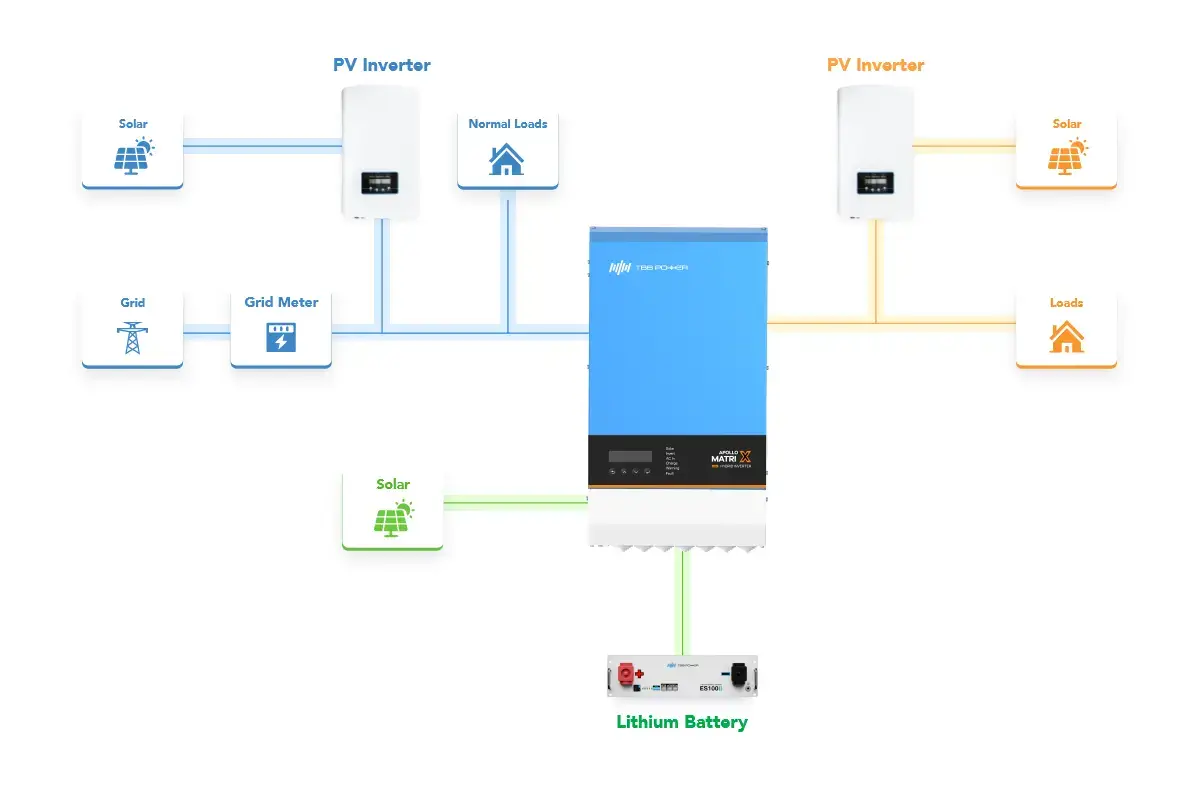

      ess capability

      ESS Capability

      With ESS capability, Raython Model 0/1 Apollo Matrix can be used for the following applications: maximizing self-consumption, peak shaving, retrofitting existing grid-tie systems, and guaranteeing backup power.

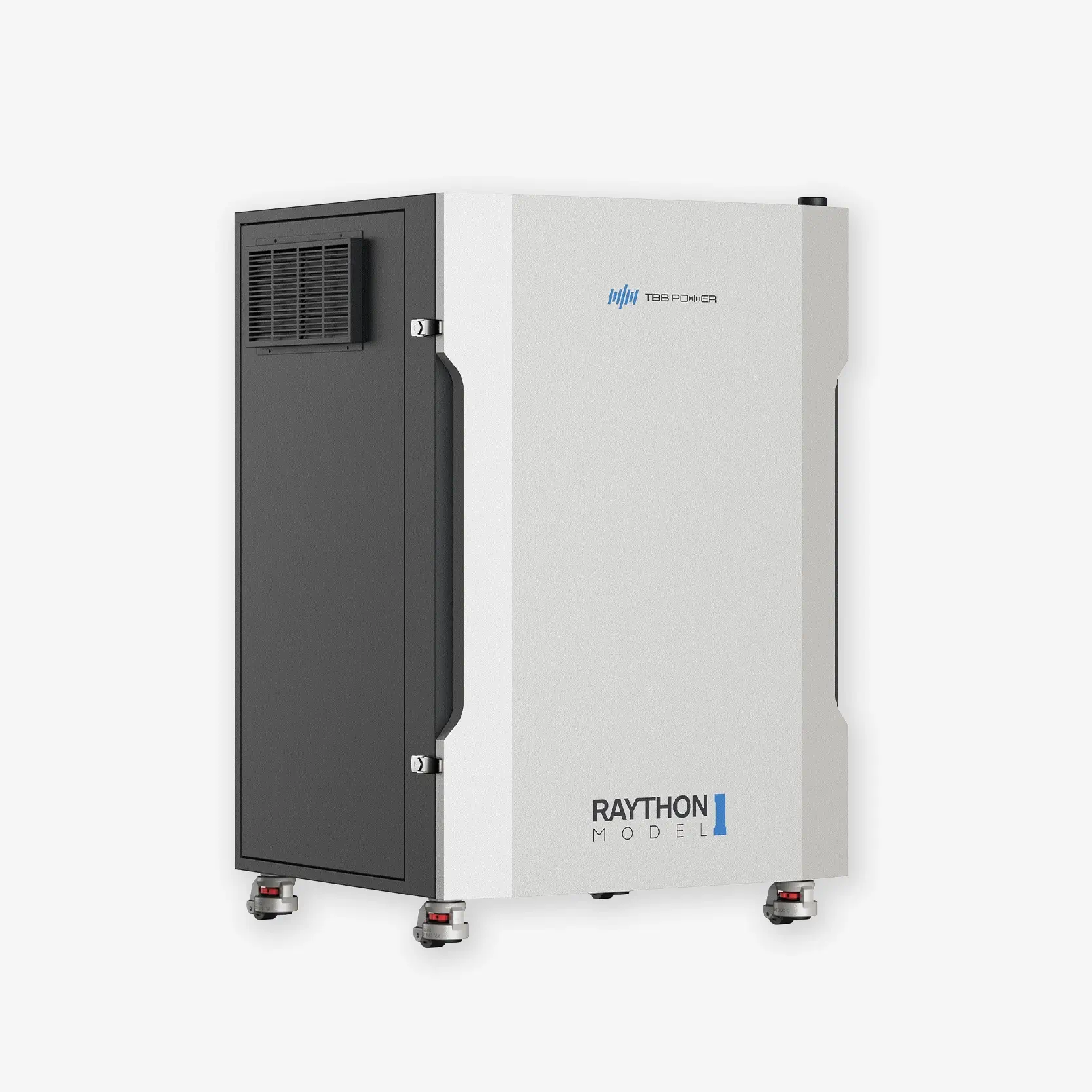

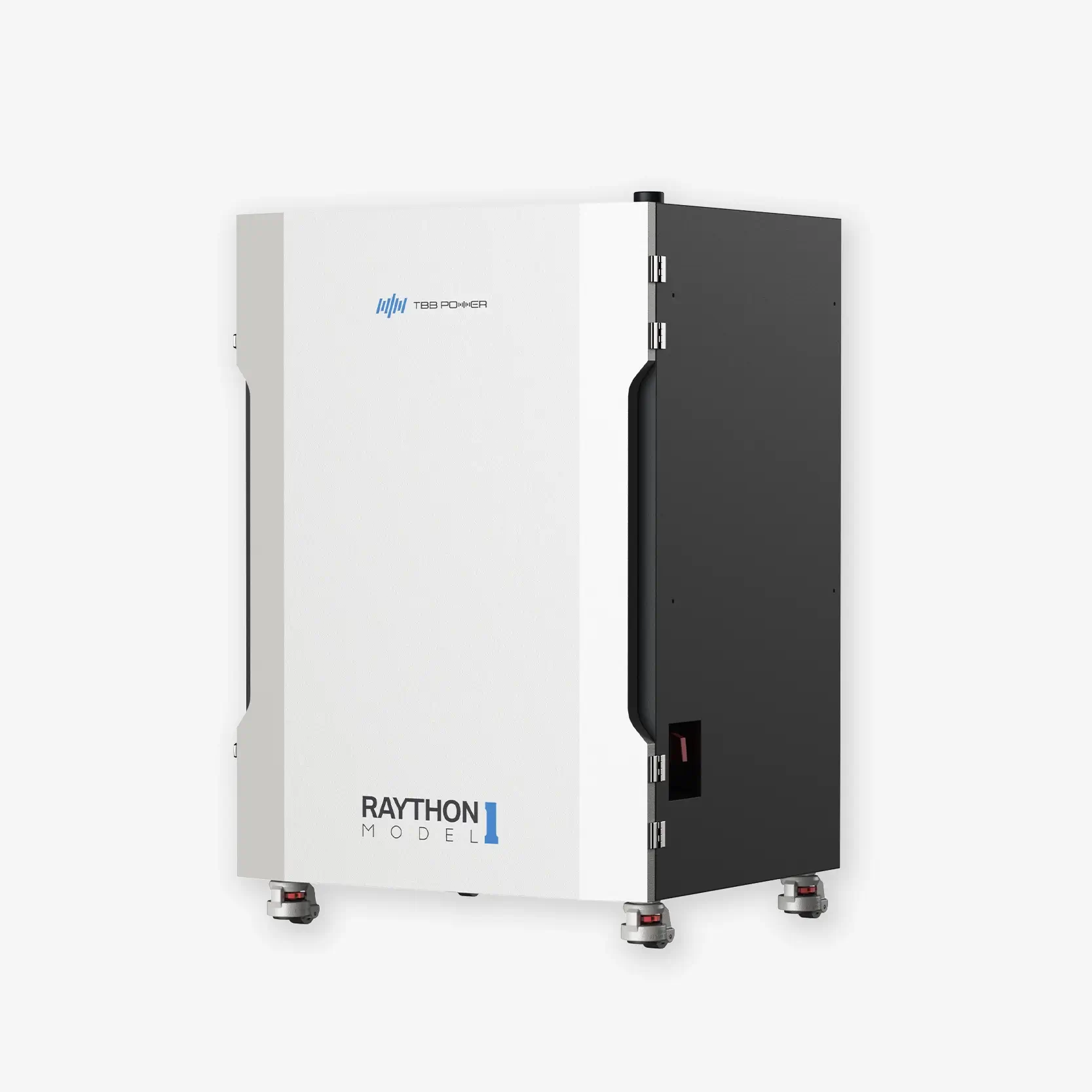

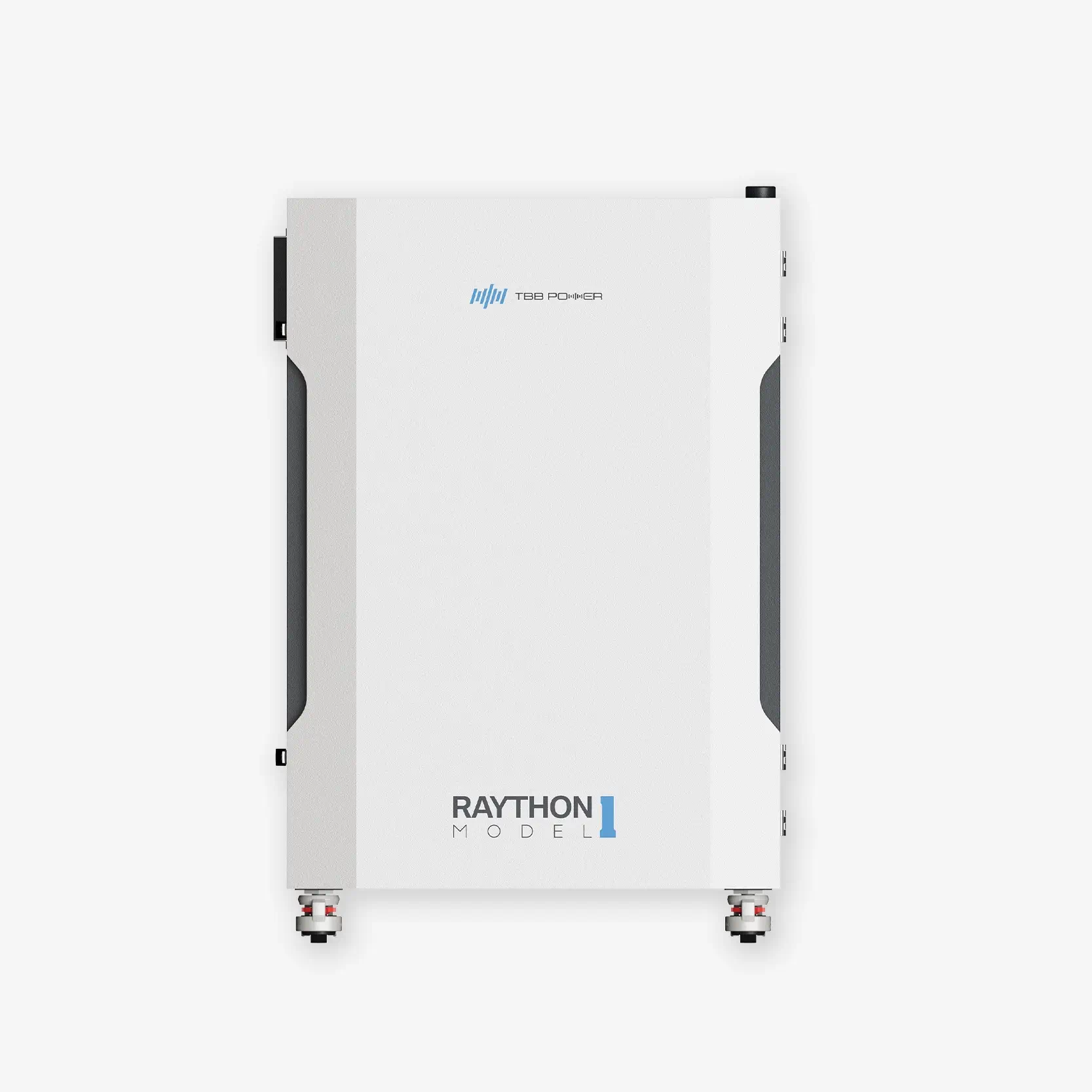

      Raython model 0/1 integrated battery energy storage system for off-grid and ess applications

      Raython model 0/1 integrated battery energy storage system product imageRaython model 0/1 integrated battery energy storage system product imageRaython model 0/1 integrated battery energy storage system product imageRaython model 0/1 integrated battery energy storage system product image

      Specification

      • Raython Model 1

      • Raython Model 0

      • Max output power at 25°C (W)
        5000
      • Max solar charge current (A)
        90
      • PV open circuit voltage (V)
        150
      • Nominal energy capacity
        10.08kWh-20.16kWh
      • Protection index
        IP54
      • Max output power at 25°C (W)
        5000
      • Max solar charge current (A)
        90
      • PV open circuit voltage (V)
        150
      • Nominal energy capacity
        10.08kWh-20.16kWh
      • Protection index
        IP54

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…

      Try Our Demo
