      All-in-one Integrated Solution
      Raython M Series
      Download PDF

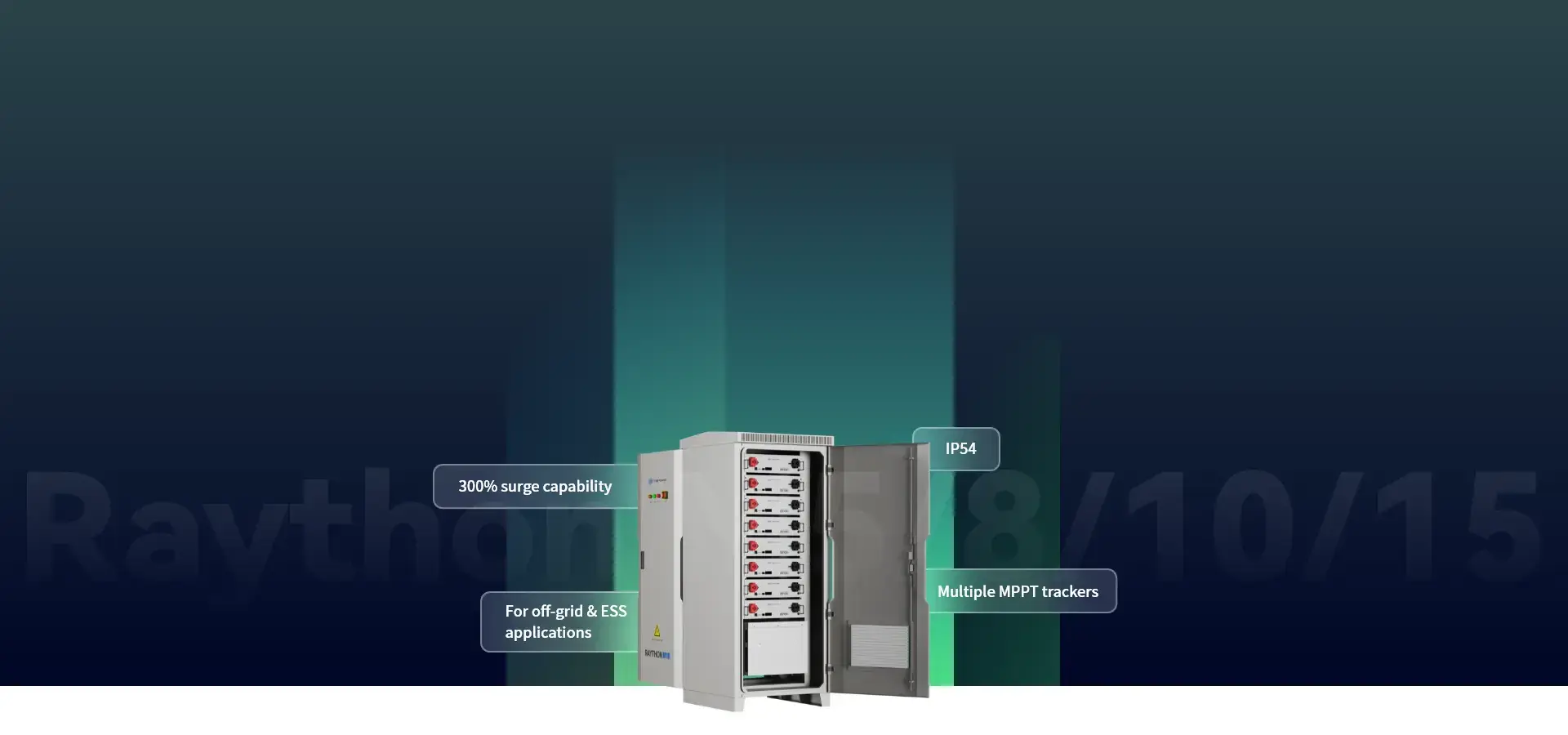

      Raython M integrated off-grid and grid-tie systems product features

      Raython M Series

      All-in-one Integrated Solution

      Raython M Series

      5kW/8kW/10kW/15kW, 5.04kWh-40.32kWh

      TBB Raython M5/8/10/15 are all-in-one standalone solar power systems designed to address energy challenges faced by homes and businesses without access to the grid. These versatile systems are also well-suited for energy storage solutions in areas with stable grid but high electricity costs, empowering home and business owners to make the most of solar energy for self-consumption, reduce electricity expenses and achieve greater energy independence. Each Raython system is expertly assembled and rigorously tested as a complete unit. Aiming for a straightforward yet efficient approach to energy utilization, these systems seamlessly integrate a solar hybrid inverter (with built-in 600V MPPT), lithium battery modules, a local monitoring device, and power distributions into a single IP-54 cabinet. This factory-assembled design allows for quick installation and commissioning, reducing project costs and accelerating implementation.

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      All-in-one design for easy installation

      All-in-one design for easy installation

      Built-in 600V MPPT

      Built-in 600V MPPT

      For off-grid & residential ESS

      For off-grid & residential ESS

      Programmable smart port (Raython M5/8)

      Programmable smart port (Raython M5/8)

      Two AC inputs & outputs (Raython M10/15)

      Two AC inputs & outputs (Raython M10/15)

      ESS capability

      ESS capability

      Leakage protection

      Leakage protection

      AGS Function for Generator Control

      AGS Function for Generator Control

      Power assist & power control

      Power assist & power control

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via Nova

      Remote monitoring and control via Nova

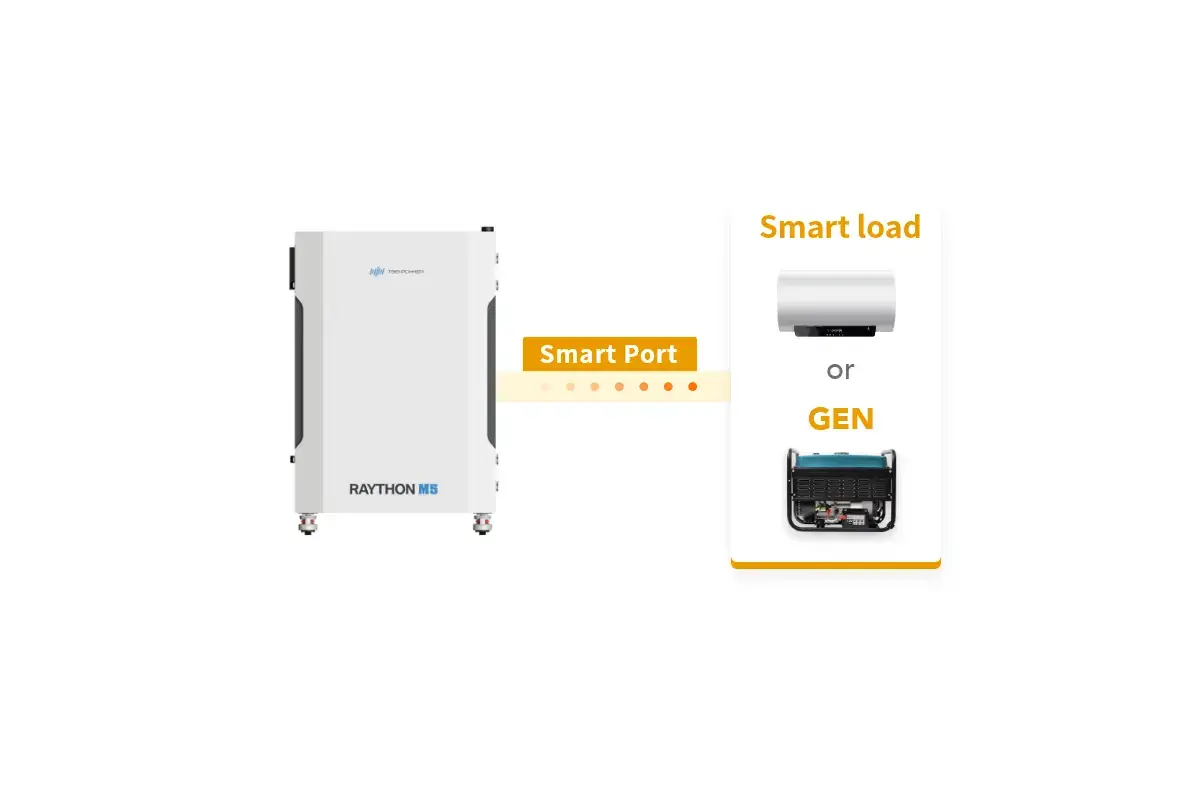

      A programmable smart port (Raython M5/8)

      A programmable smart port (Raython M5/8)

      Raython M5/8 are built-in with a programmable smart port for generator input or power normal loads. When programmed as generator input, it can provide two AC inputs for the system; When it is programmed as an AC out 2 for connecting normal loads, its on/off can be controlled based on the grid condition, battery SoC/Voltage, to manage loads in a smart way.

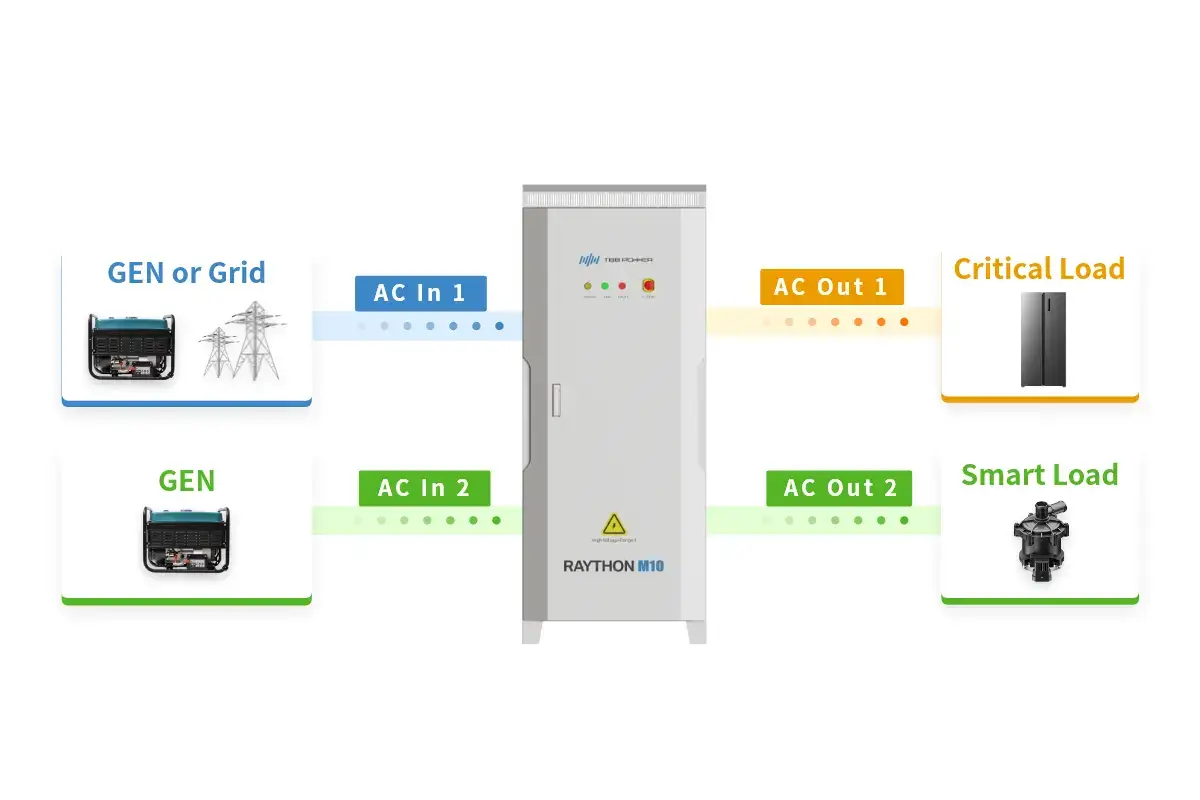

      Two AC inputs & Two AC outputs (Raython M10/15)

      Two AC inputs & Two AC outputs (Raython M10/15)

      Boasting two AC inputs, Raython M10/15 support connection to the grid and generator or two generators simultaneously. It will automatically connect to the active AC source to ensure an uninterruptible power supply. With Two AC outputs, Raython M10/15 can manage loads in a smart way.

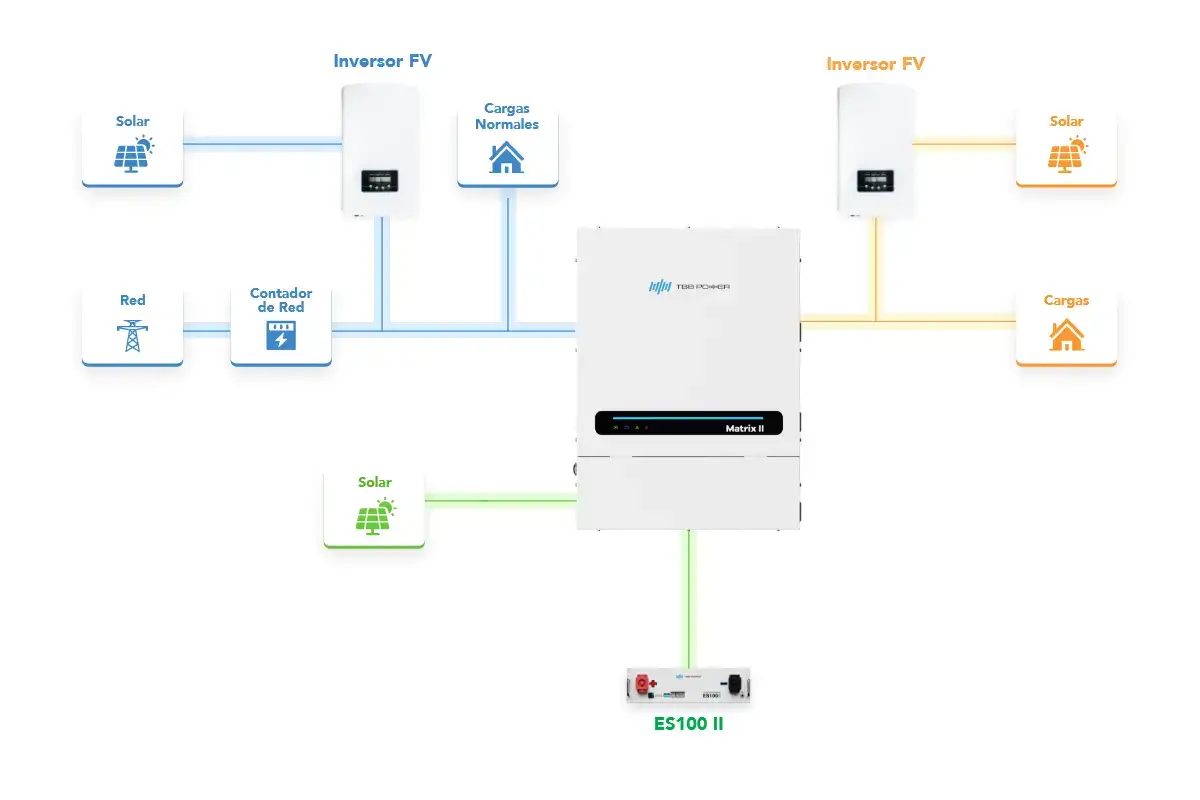

      ESS Capability

      ESS Capability

      With ESS With ESS capability, Raython M5/8/10/15 can be used for the following applications: maximizing self-consumption, cutting electricity bills, peak shaving, and retrofitting existing grid-tie systems.

      Power Control: maximizes the use of limited AC power and protect it from overload

      Power Control: maximizes the use of limited AC power and protect it from overload

      Raython M5/8/10/15 can automatically adjust its charging current by taking loads into account and only using the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Raython M5/8/10/15 can also keep generators running at their optimum power level.

      Power Assist: enables limited AC source to power heavy loads

      Power Assist: enables limited AC source to power heavy loads

      When the load keeps increasing and exceeds what the limited AC source can carry, Raython M5/8/10/15 will discharge the battery to supply power to compensate for the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

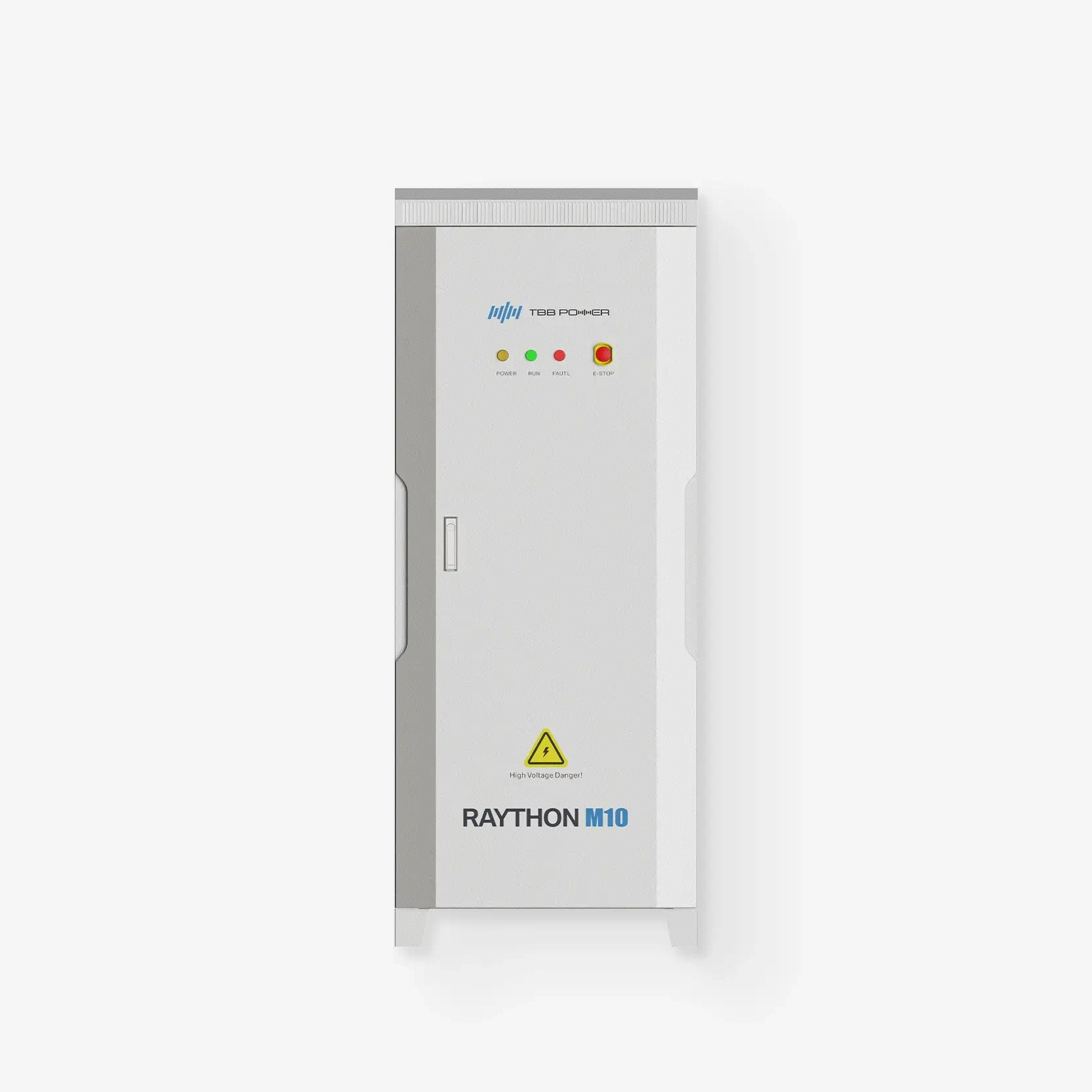

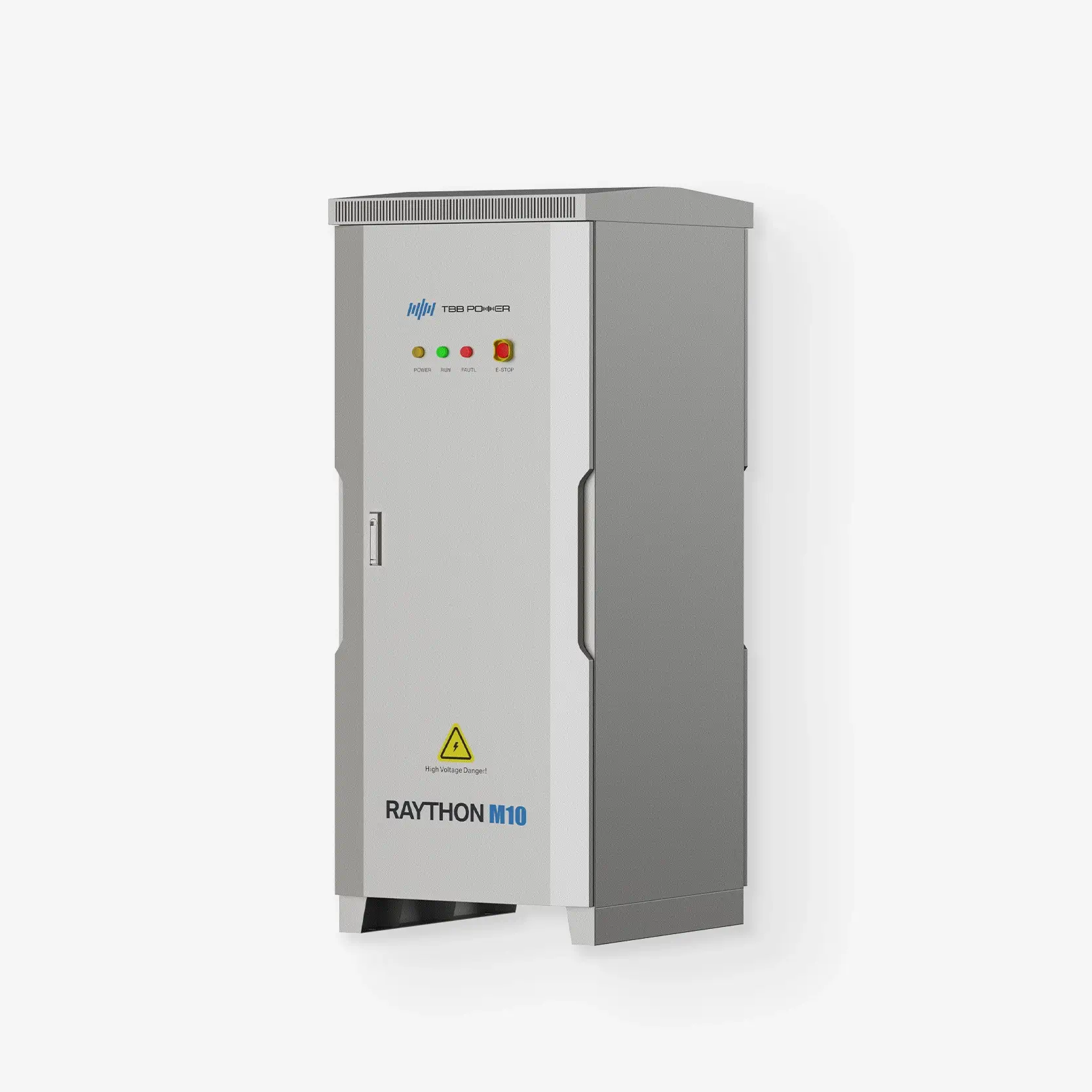

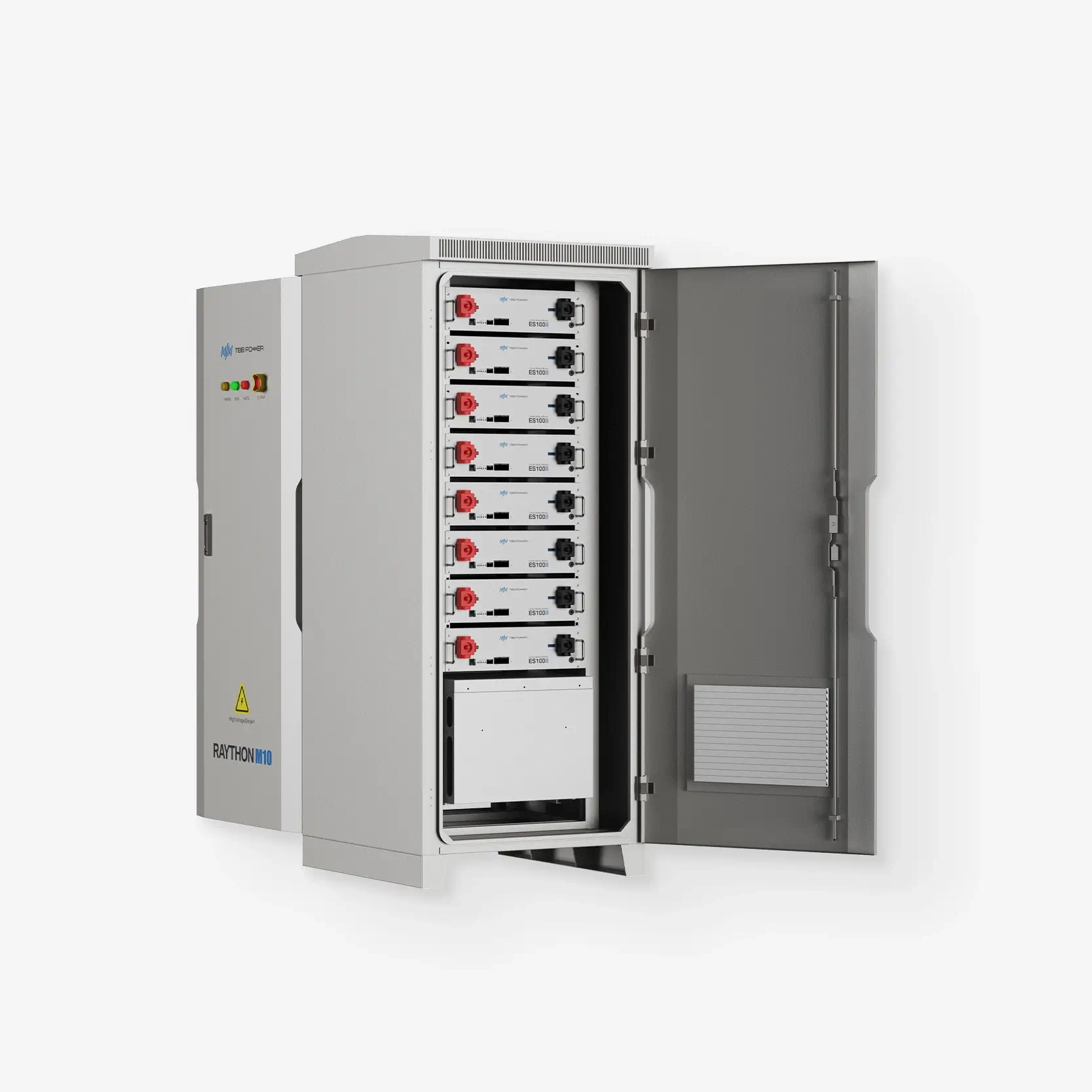

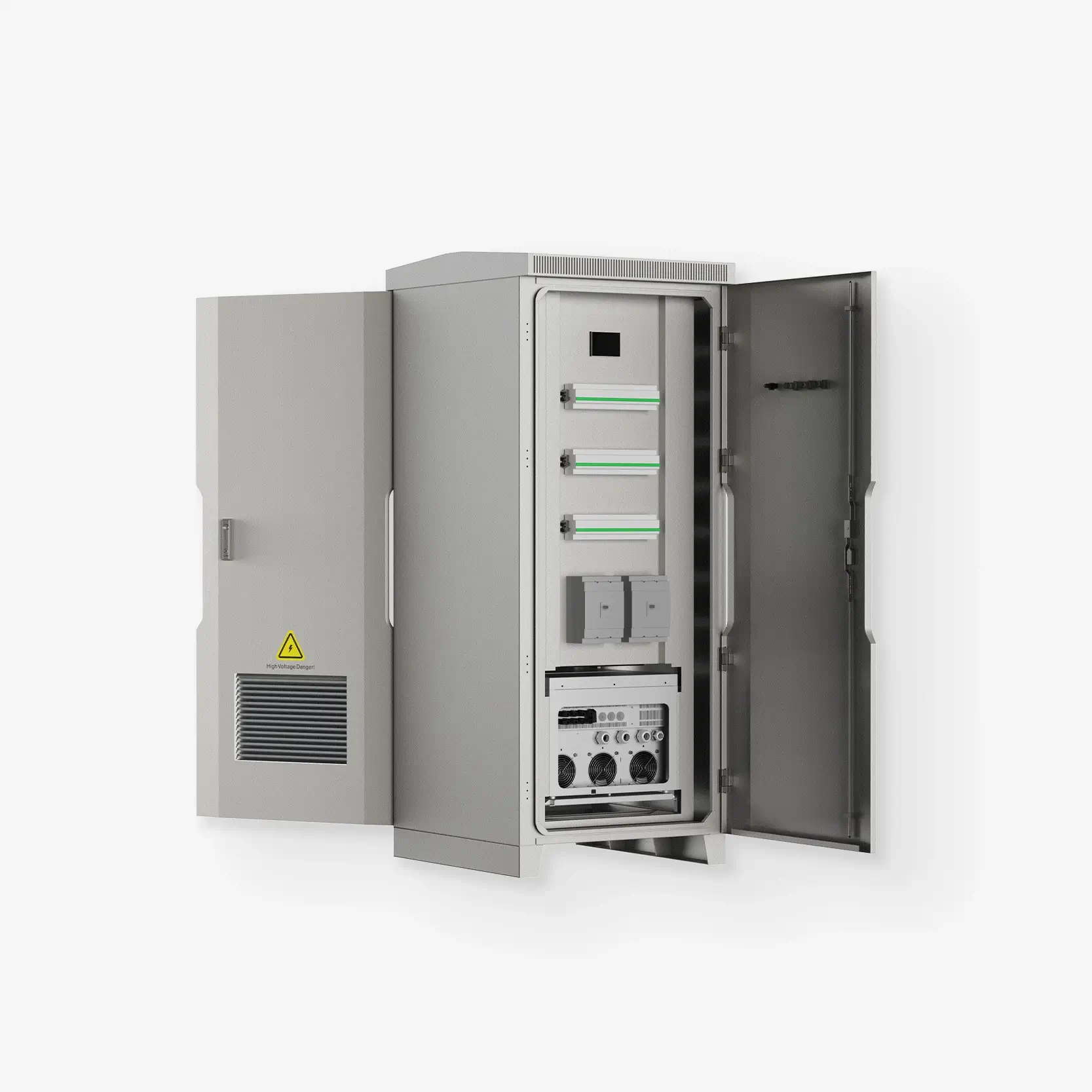

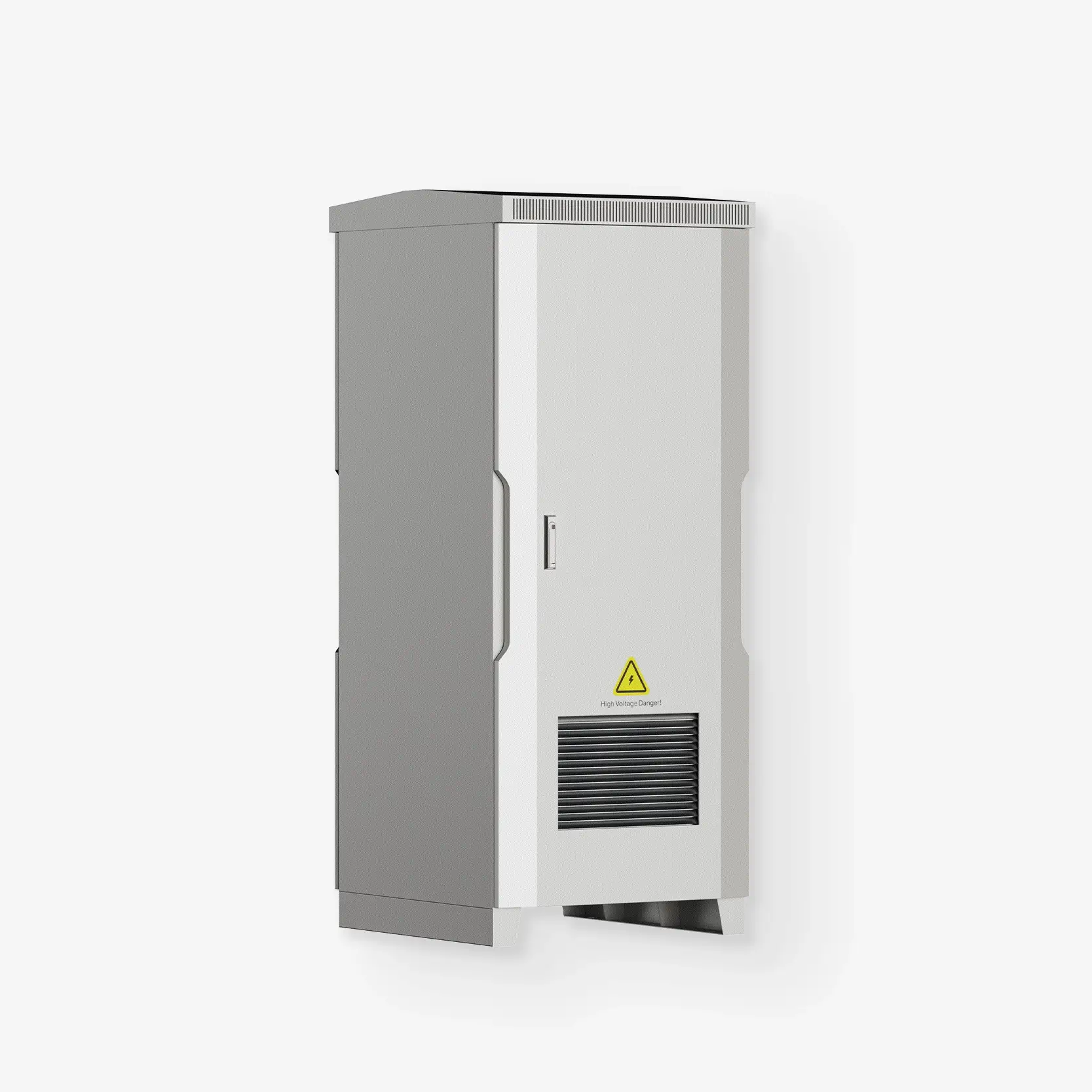

      Raython M integrated battery energy storage system for off-grid and ess applications

      Raython m integrated battery energy storage system product imageRaython m integrated battery energy storage system product imageRaython m integrated battery energy storage system product imageRaython m integrated battery energy storage system product imageRaython m integrated battery energy storage system product imageRaython m integrated battery energy storage system product image

      Specification

      • Raython M5

      • Raython M8

      • Raython M10

      • Raython M15

      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Maximum PV open circuit voltage (V)
        600
      • Nominal energy capacity
        5.04kWh-20.16kWh
      • Protection index
        IP55
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Maximum PV open circuit voltage (V)
        600
      • Nominal energy capacity
        5.04kWh-20.16kWh
      • Protection index
        IP55
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Maximum PV open circuit voltage (V)
        600
      • Nominal energy capacity
        5.04kWh-20.16kWh
      • Protection index
        IP55
      • Cont. output power at 25°C (W)
        4000
      • Max AC charge current (A)
        70
      • Maximum PV open circuit voltage (V)
        600
      • Nominal energy capacity
        5.04kWh-20.16kWh
      • Protection index
        IP55

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
