      PV Array Insulation Resistance Detection
      IRD300
      Download PDF
      IRD300 earth fault detection for solar power solutions product features

      IRD300

      PV Array Insulation Resistance Detection

      IRD300

      Ground Fault Detection

      The IRD300 PV array insulation resistance detection (also called earth fault detection) satisfies the need for detecting abnormal PV array (open-circuit voltage range: 60-300V) insulation resistance to ground, with high compatibility to work with non-isolated solar charge controllers. When abnormal PV array insulation resistance to ground is detected, the fault indicator will be presented by means of 1) the alarm indicator light on the device, 2) fault reminder sent via RS485 communication, or 3) an alarm relay output.

      60-300V PV monitoring range

      60-300V PV monitoring range

      Monitor one or two PV arrays

      Monitor one or two PV arrays

      RS485 communication with TBB solar inverter

      RS485 communication with TBB solar inverter

      Compatible with SP250/150 without communication

      Compatible with SP250/150 without communication

      IRD300 earth fault detection for solar power solutions applications

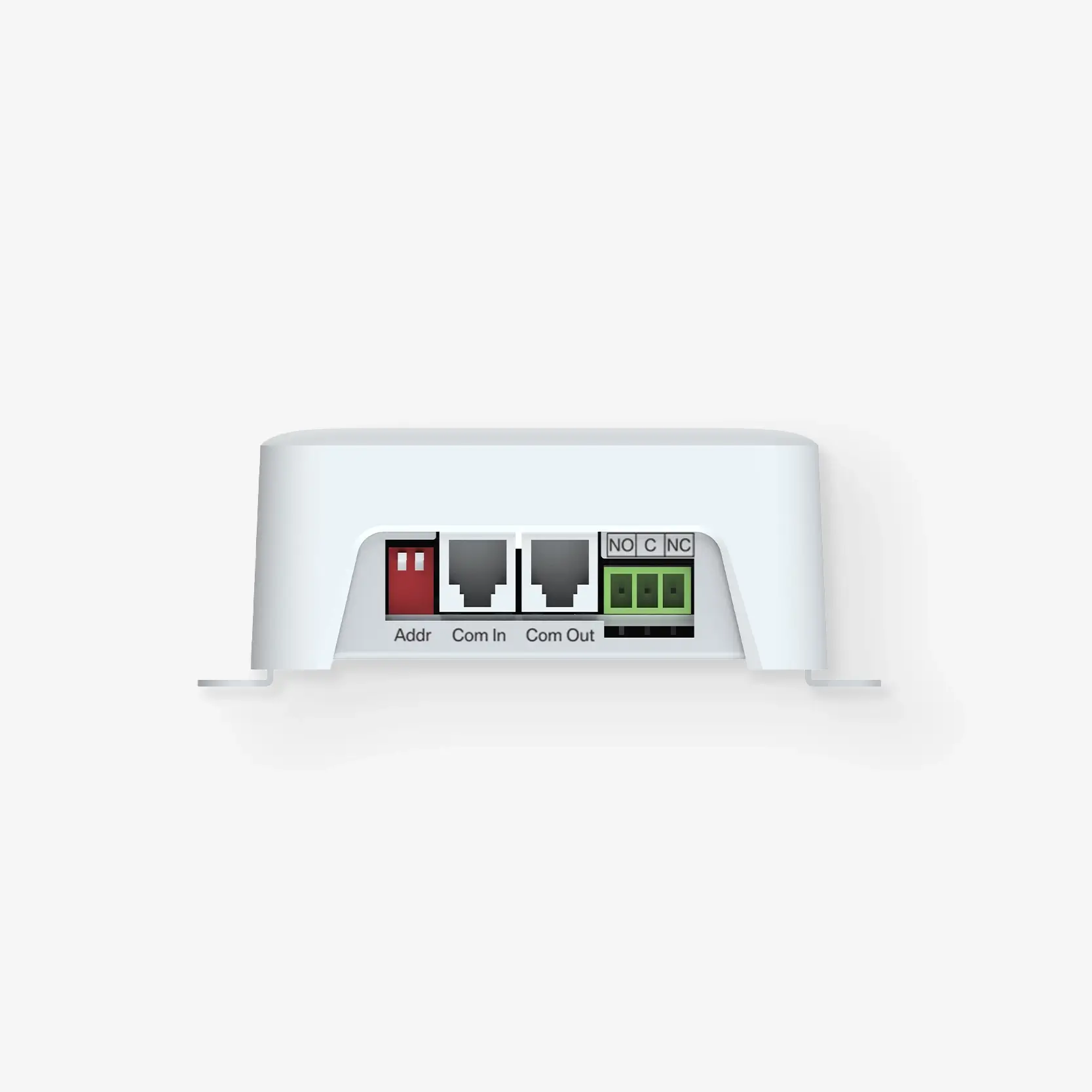

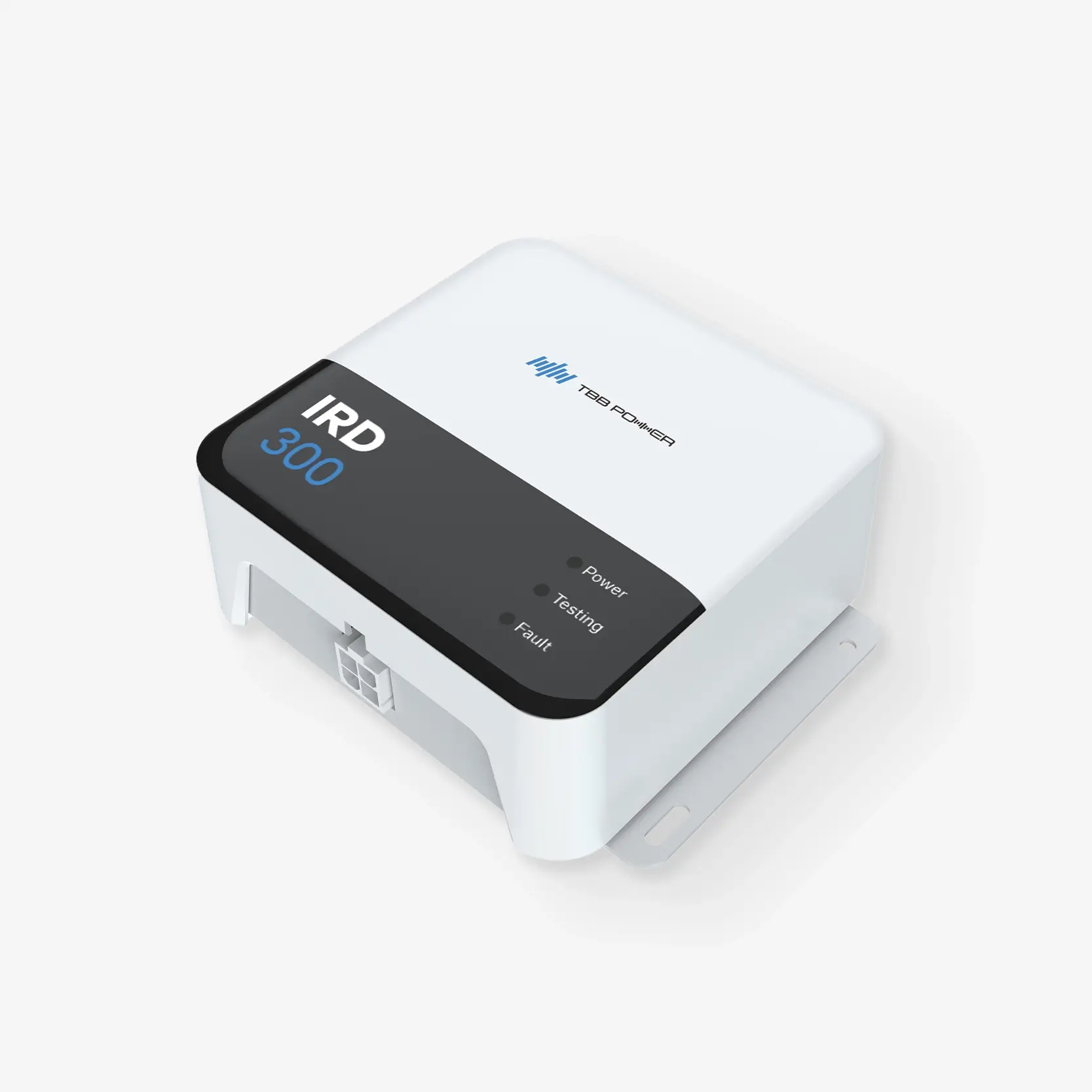

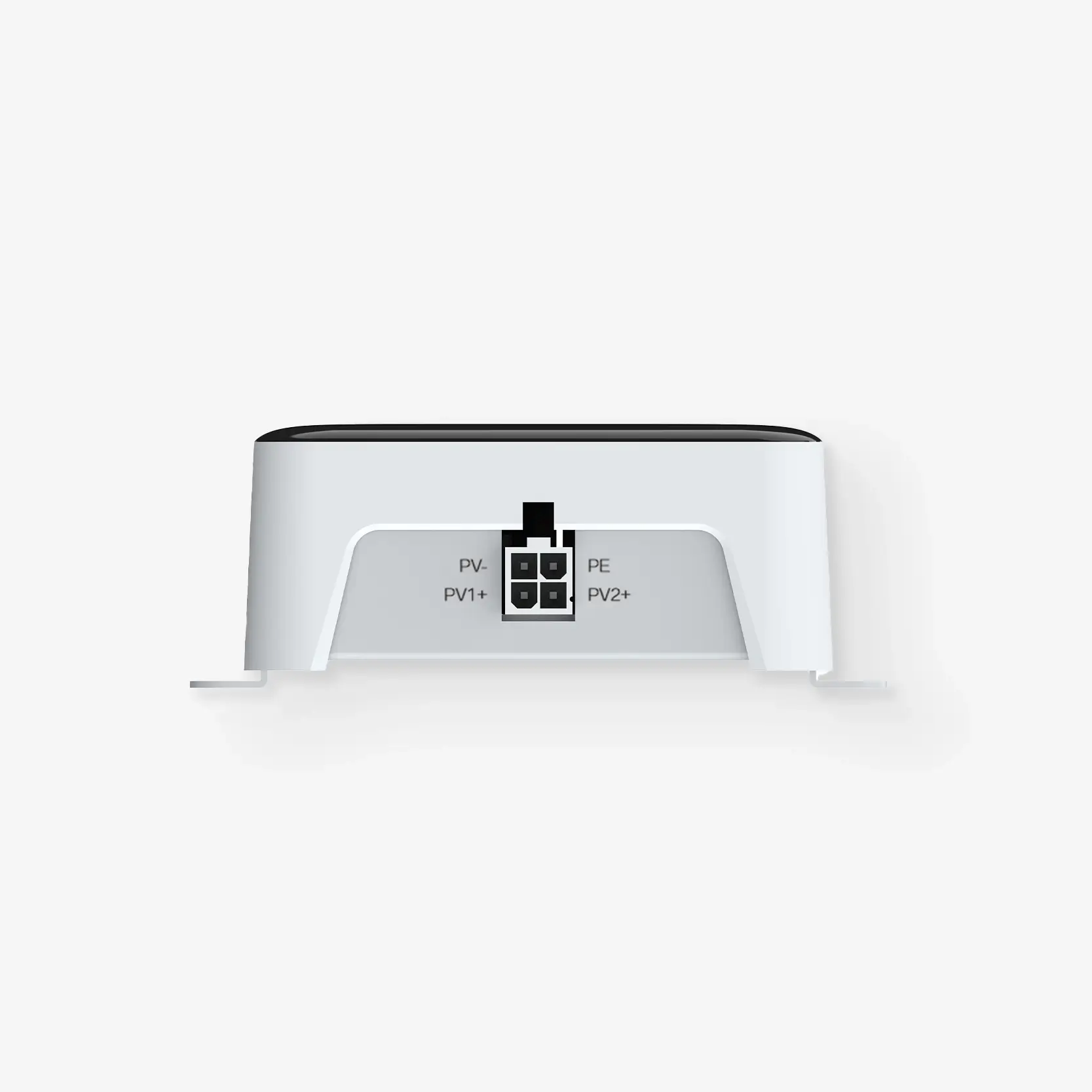

      IRD300 earth fault detection for solar power solutions product imageIRD300 earth fault detection for solar power solutions product imageIRD300 earth fault detection for solar power solutions product imageIRD300 earth fault detection for solar power solutions product imageIRD300 earth fault detection for solar power solutions product image

      Specification

      • IRD300

      • PV array monitoring range
        60 – 300VDC
      • Alarm indication relay
        1x ( 30Vdc/3A or 250Vac/3A )
      • General purpose com. Port
        RS485
      • Protection index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files
