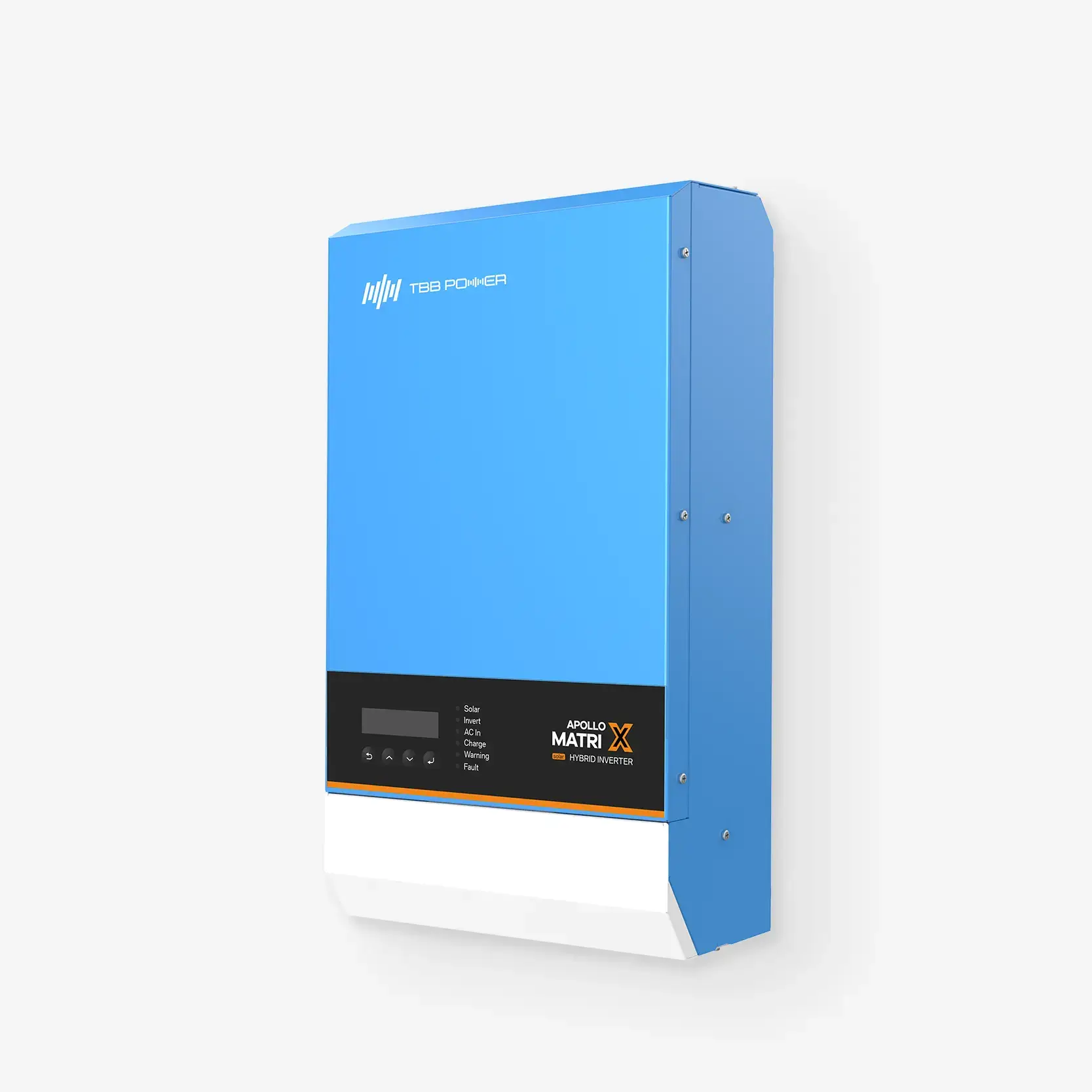

Apollo Matrix

Solar Hybrid Inverter

Apollo Matrix

3kW/5kW

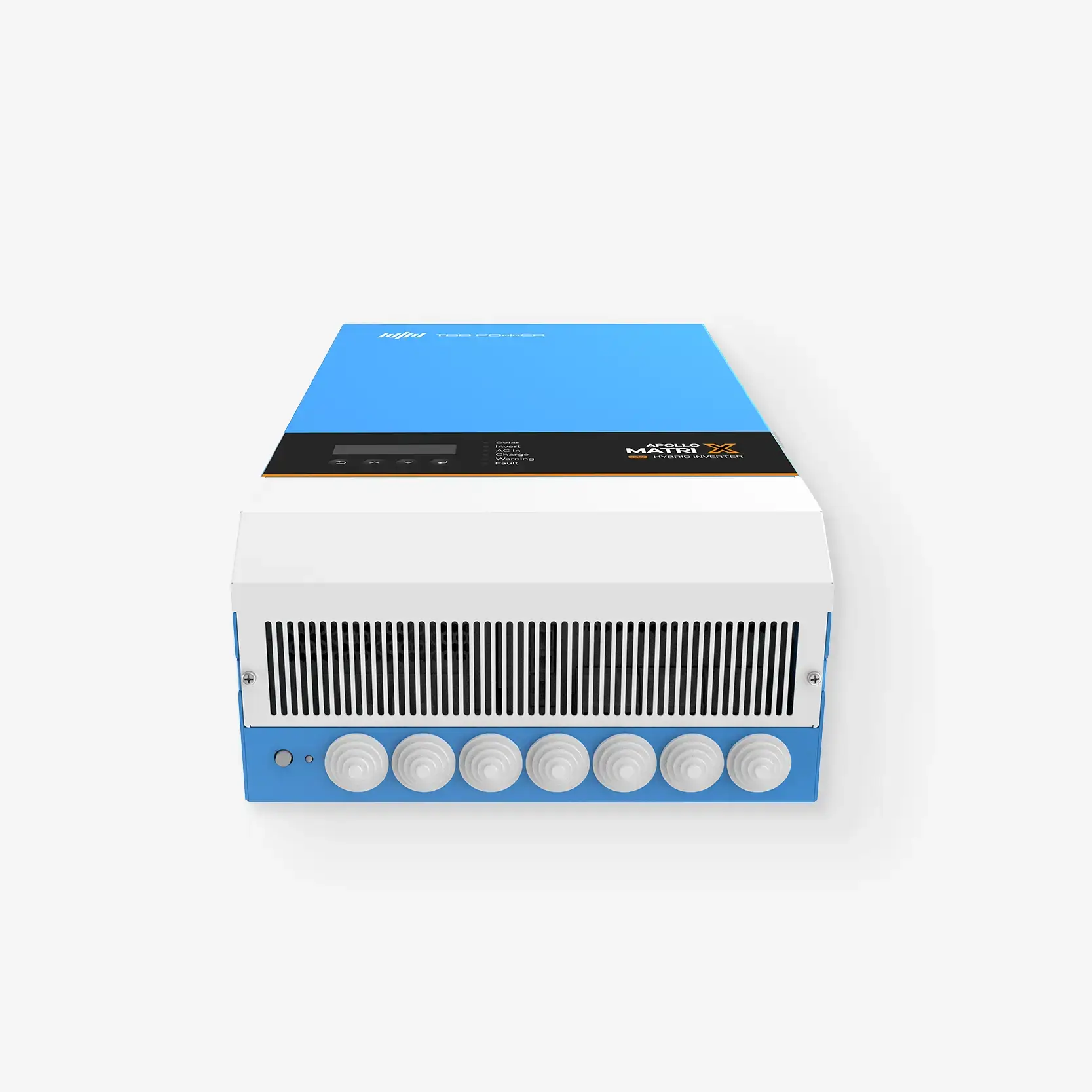

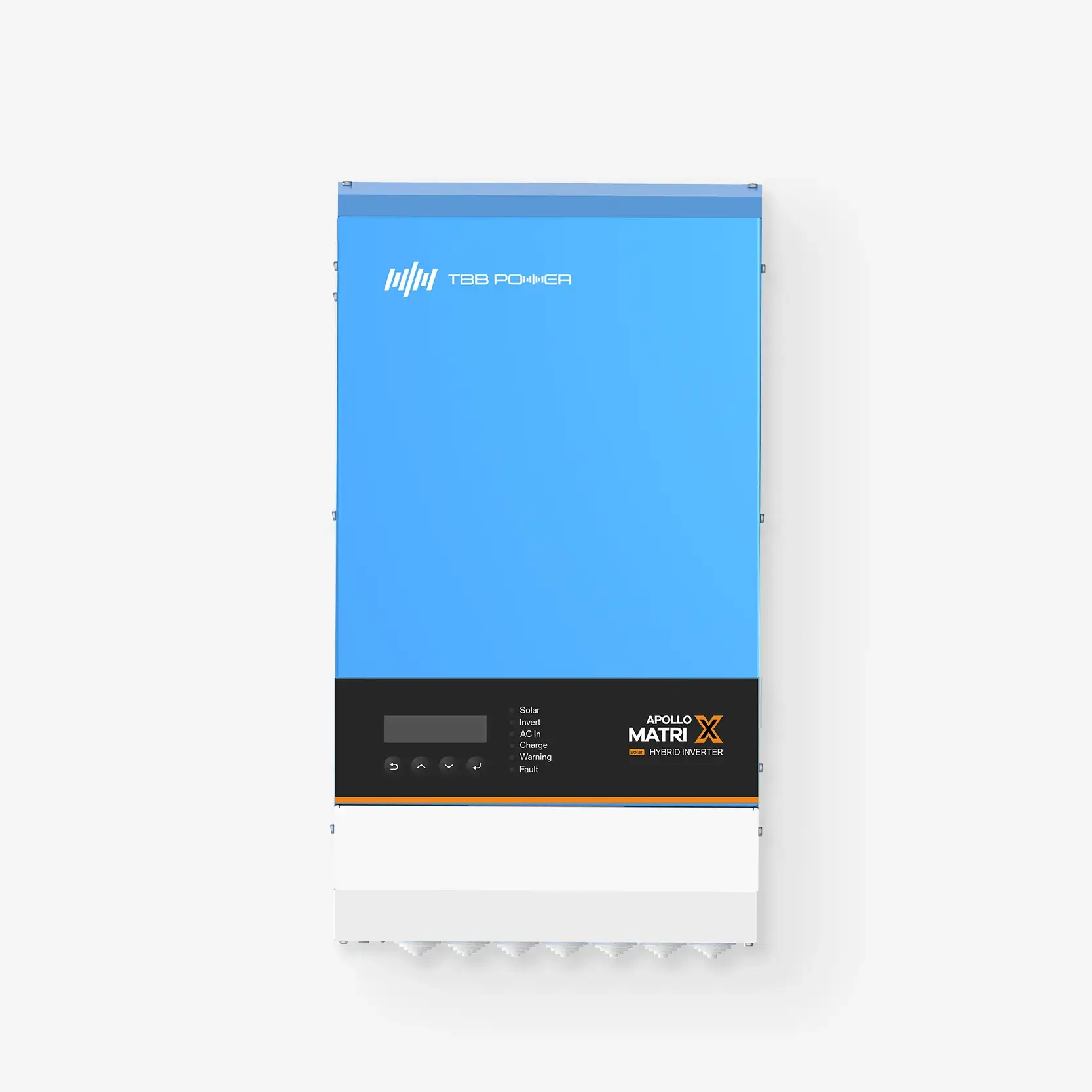

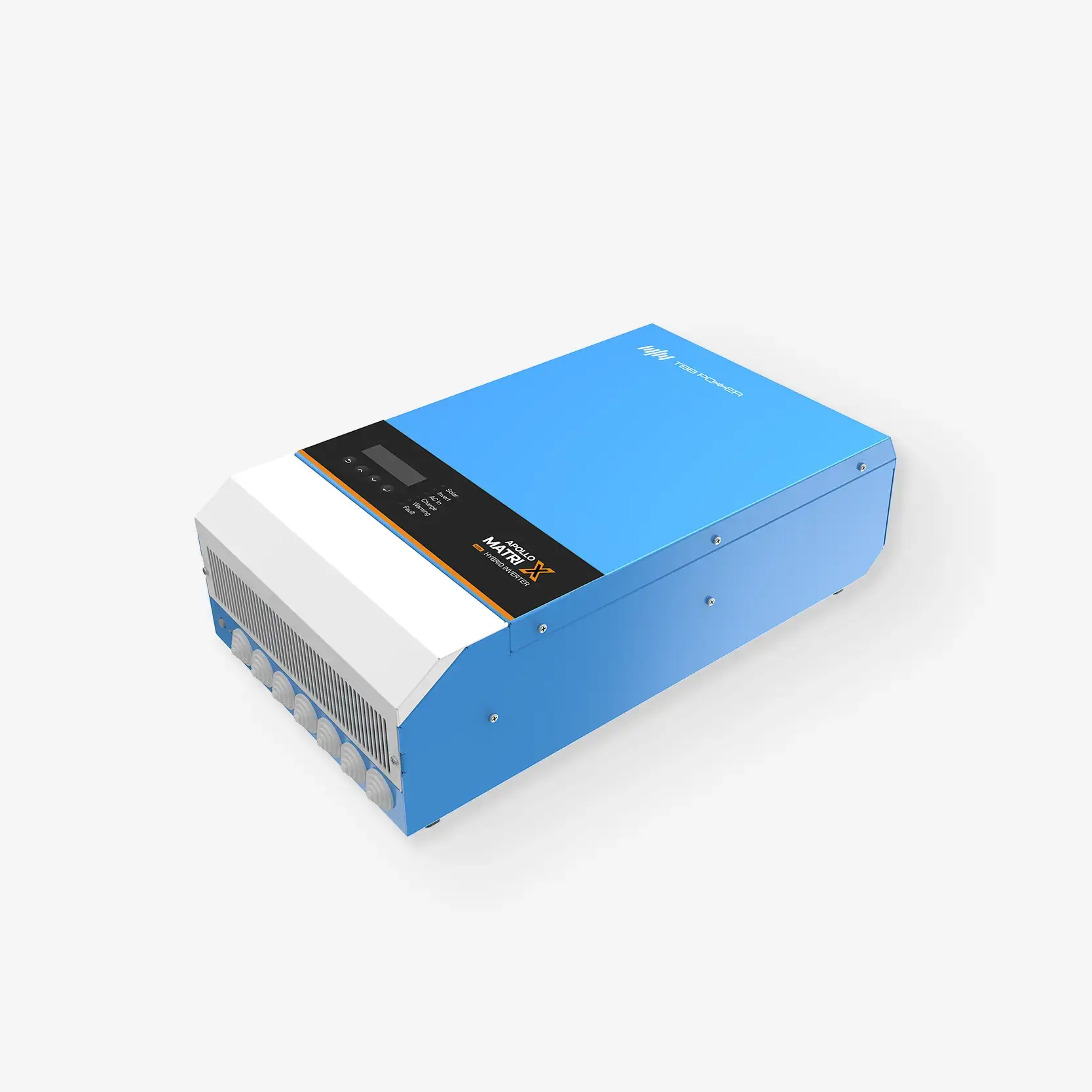

Apollo Matrix is an all-in-one transformer-based solar hybrid inverter ideal for backup power, off-grid and residential ESS use, combining an inverter charger, an MPPT solar charge controller and a high-speed automatic transfer switch in one enclosure, handling high surge loads easily, ensuring efficient energy use in complex systems. Additionally, Apollo Matrix supports maximizing energy self-consumption, grid feed-in for utility credits, retrofitting existing PV system, and optimizing bills with peak shaving and time-of-use strategies.

Built-in AGS function for generator

Power assist & power control

Local monitoring and control on E4 LCD

Remote monitoring and control via NOVA

Transformer-based design for heavy loads

All-in-one design with built-in MPPT

Feed energy back into the grid

ESS functionality

DC Coupling or AC+DC Coulping

Parallel and three phase up to 9 units

Two AC outputs

0-2ms UPS transfer time for critical laods

Built-in AGS function for generator

Power assist & power control

Local monitoring and control on E4 LCD

Remote monitoring and control via NOVA

Transformer-based design for heavy loads

All-in-one design with built-in MPPT

Feed energy back into the grid

ESS functionality

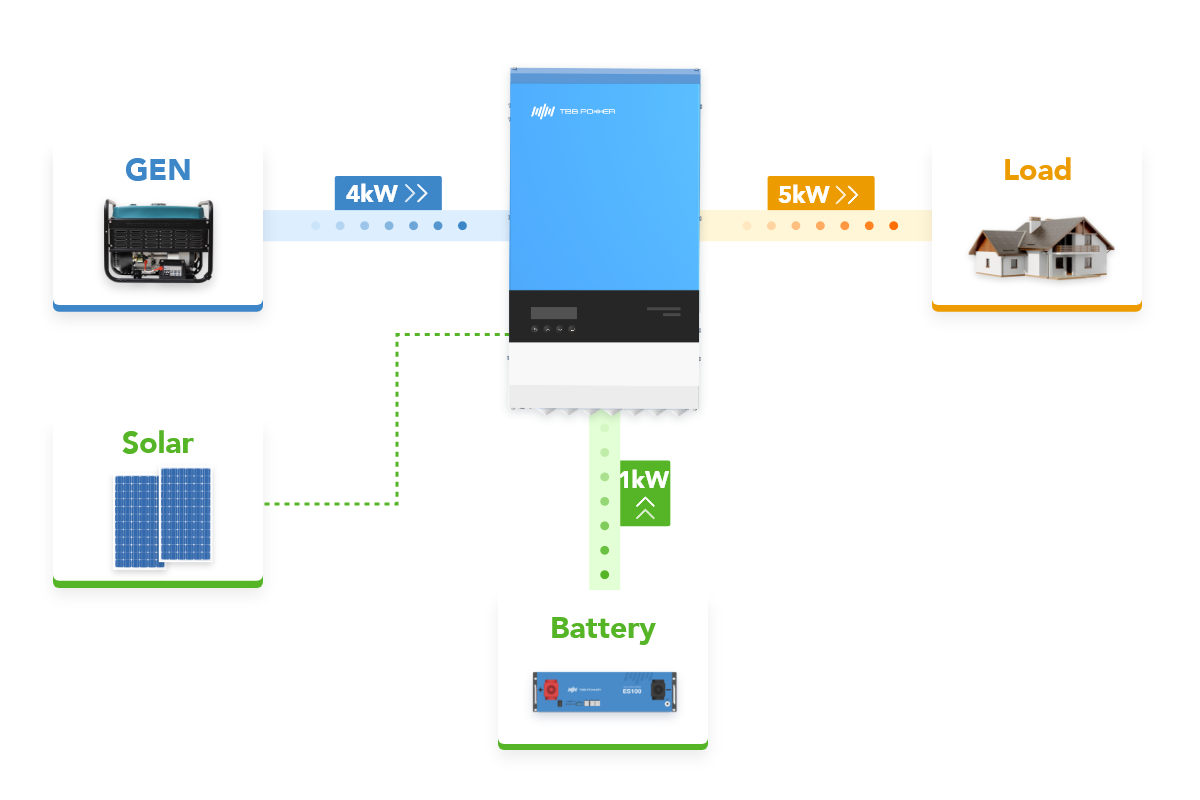

Power Assist: enables limited AC source to power heavy loads

When the load keeps increasing and exceeds what the limited AC source can carry, Apollo Matrix will discharge the battery to supply power to compensate for the insufficient part of the limited AC source. When the load reduces, the spare power will be used to recharge the battery.

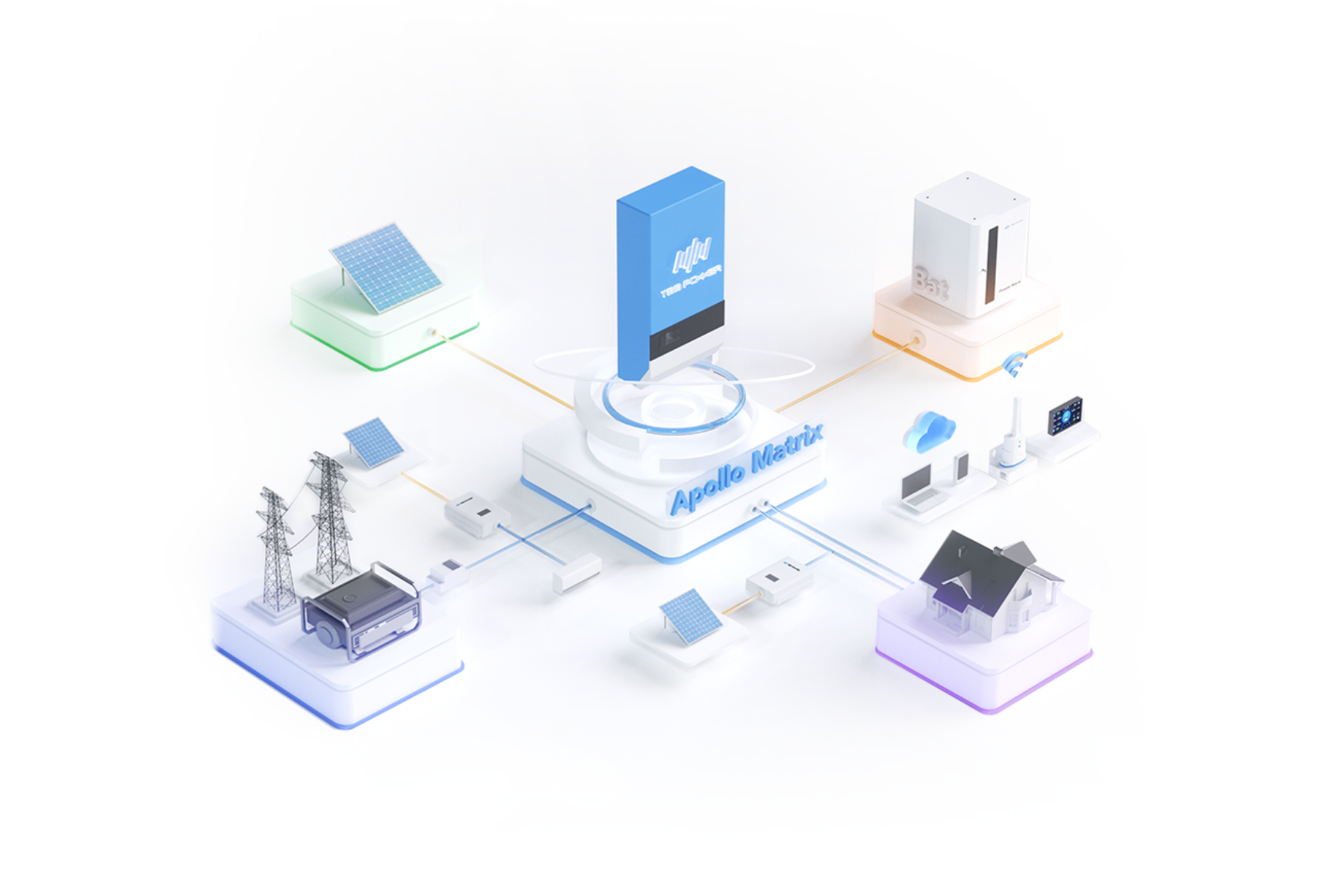

ESS Capability

With ESS capability, Apollo Matrix is the key component in an energy storage system. Built-in with MPPT solar charge controller and working with grid-tie PV inverter, it can be used for the following applications: maximizing self-consumption, peak shaving, retrofitting existing grid-tie systems, and guaranteeing backup power.

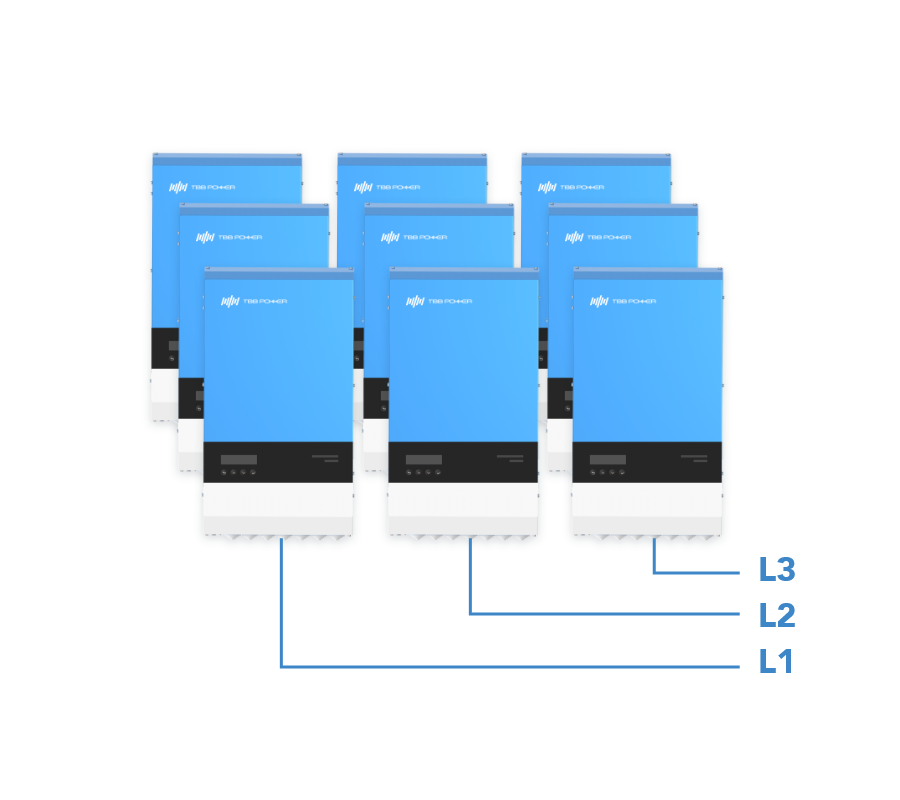

Parallel & Three-phase Operation up to 9 units

Apollo Matrix supports parallel and three-phase operation up to 9 units to achieve higher power output (up to 45KW). You can start with the comprehensive system or a smaller solution and gradually expand it, depending on what best suits your needs and budget.

Power Control: maximizes the use of limited AC source and protect it from overload

Apollo Matrix can automatically adjust its charging current by taking loads into account and only using the surplus current to charge the battery to avoid overload to the limited AC source. Thus, Apollo Matrix can also keep generators running at their optimum power level.

Power Assist: enables limited AC source to power heavy loads

ESS Capability

Specification

Apollo Matrix 5.0S
Apollo Matrix 3.0S
Apollo Matrix 3.0M

Nominal battery voltage (V)

48
Max. output power at 25°C (W)

5000
Battery Charge current (A)

70
Max solar charge current(A)

90
Maximum PV power (W)

6000
PV open circuit voltage (V)

150
Smart Port

Yes
Protection index

IP21

Nominal battery voltage (V)

48
Max. output power at 25°C (W)

5000
Battery Charge current (A)

70
Max solar charge current(A)

90
Maximum PV power (W)

6000
PV open circuit voltage (V)

150
Smart Port

Yes
Protection index

IP21

Nominal battery voltage (V)

48
Max. output power at 25°C (W)

5000
Battery Charge current (A)

70
Max solar charge current(A)

90
Maximum PV power (W)

6000
PV open circuit voltage (V)

150
Smart Port

Yes
Protection index

IP21

Product Downloads

Visit Download Page for More Information

Datasheet
User Manual
More Files

加载失败

When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
