      All-in-one Solar Inverter
      RiiO Sun II (HV)
      Download PDF
      RiiO Sun II solar inverter for backup power applications product features

      RiiO Sun II (HV)

      All-in-one Solar Inverter

      RiiO Sun II (HV)

      2kVA-8kVA

      RiiO Sun II is a versatile transformer-based all-in-one solar inverter, designed for backup power, off-grid and ESS applications, integrating a pure sine wave inverter, battery charger, MPPT solar charge controller and a rapid 4ms automatic transfer switch in a compact casing. It’s engineered to handle high surge loads and ensures continuous operation of critical load during outages. Additionally, RiiO Sun II enhances energy self-consumption, supports grid feed-in for utility credits, and optimizes costs with peak shaving and time-of-use strategies.

      2 MPPT trackers for 5kVA, 6kVA, and 8kVA

      2 MPPT trackers for 5kVA, 6kVA, and 8kVA

      Programmable smart port for 5, 6 & 8 kVA

      Programmable smart port for 5, 6 & 8 kVA

      Transformer-based design for heavy loads

      Transformer-based design for heavy loads

      Parallel and three-phase up to 9 units

      Parallel and three-phase up to 9 units

      Built-in ESS functionality

      Built-in ESS functionality

      Optional to work without battery

      Optional to work without battery

      AGS function for generator control

      AGS function for generator control

      All-in-one design with built-in MPPT

      All-in-one design with built-in MPPT

      4ms UPS transfer time for critical loads

      4ms UPS transfer time for critical loads

      ECO mode to prolong backup time

      ECO mode to prolong backup time

      Power assist & power control

      Power assist & power control

      Compatible with lithium battery

      Compatible with lithium battery

      Inverter efficiency up to 94%

      Inverter efficiency up to 94%

      MPPT efficiency up to 98%

      MPPT efficiency up to 98%

      Local monitoring and EMS via E4

      Local monitoring and EMS via E4

      Remote monitoring and control via NOVA

      Remote monitoring and control via NOVA

      2 MPPT trackers for flexible system installation

      2 MPPT trackers for flexible system installation

      Dual-MPPT functionality allows much greater system design flexibility, significant cost savings and higher levels of harvested energy.

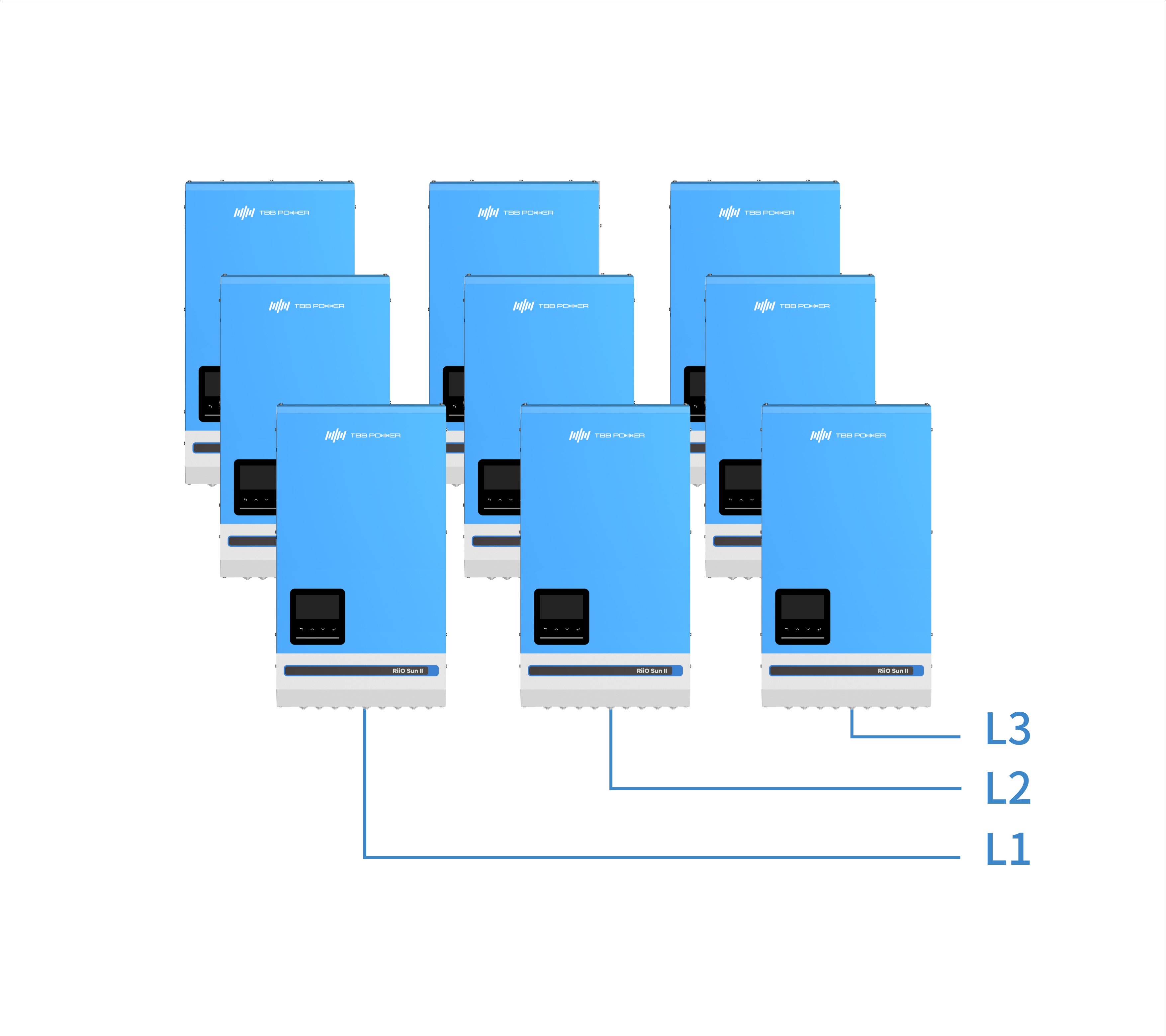

      Parallel & Three-phase Operation up to 9 units

      Parallel & Three-phase Operation up to 9 units

      RiiO Sun II supports parallel and three-phase operation up to 9 units to achieve higher power output (up to 72kVA). You can start with the comprehensive system or a smaller solution and gradually expand it, depending on what best suits your needs and budget.

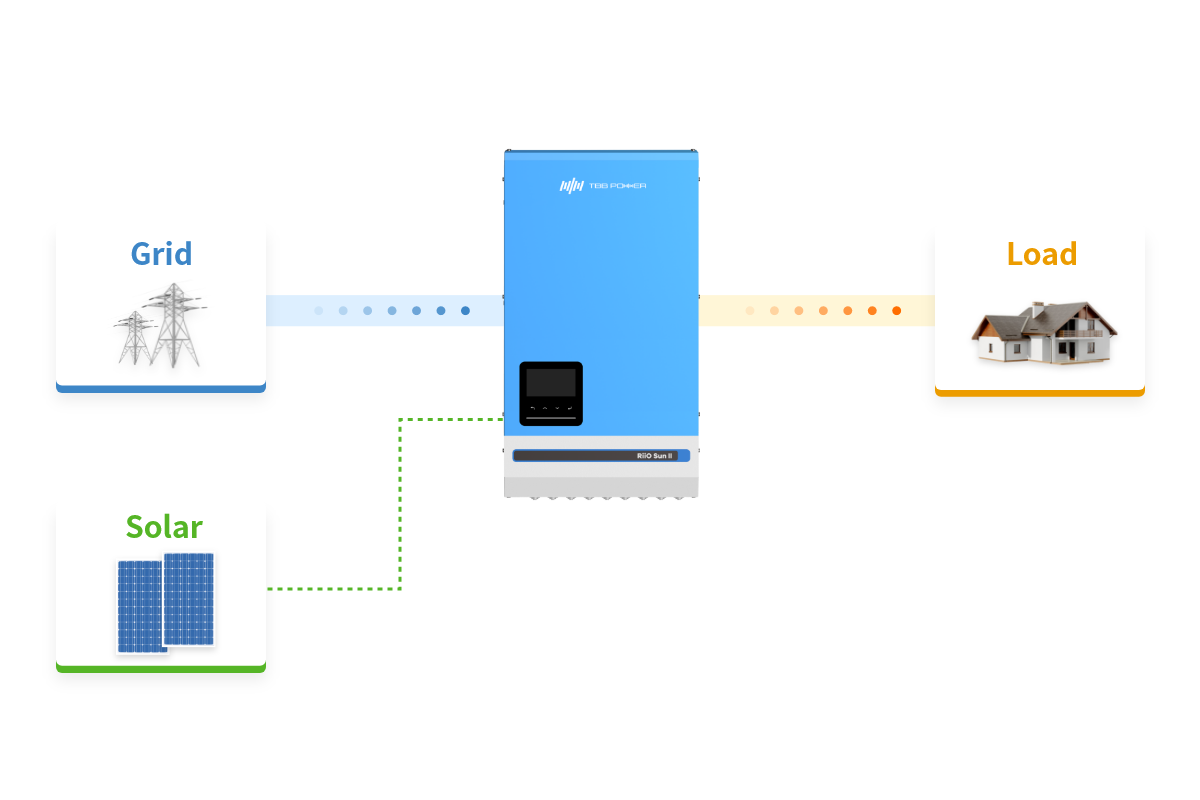

      Optional to work without battery

      Optional to work without battery

      Only for single unit applications with stable AC bypass supply, and PV energy is a supplement for AC bypass. The energy produced by the solar panels is directed to the house for use and they do not need to produce all the electricity to run an entire household as shortfalls can be made up from the grid. Advantages of working without battery backup: savings on electricity bills, less costly to install, more environmentally friendly, fewer components to maintain.

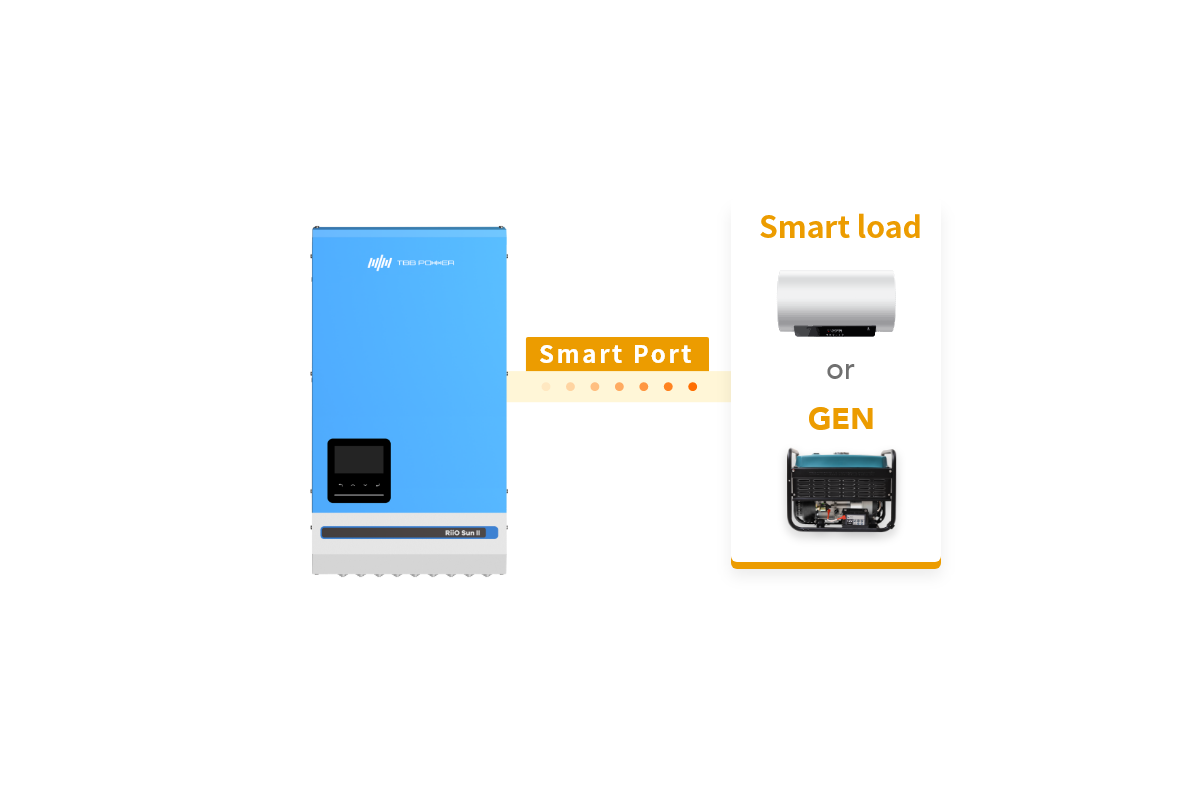

      A programmable smart port

      A programmable smart port

      Built-in a programmable smart port for generator input or power normal loads. When programmed as generator input, it can provide two AC inputs for the system; When it is programmed as an AC out 2 for connecting normal loads, its on/off can be controlled based on the grid condition, battery SoC/Voltage, to manage loads in a smart way.

      RiiO Sun II solar inverter for off-grid and ESS applications

      RiiO Sun II solar inverter product imageRiiO Sun II solar inverter product imageRiiO Sun II solar inverter product image

      Specification

      • RiiO Sun II 8kVA-S

      • RiiO Sun II 6kVA-S

      • RiiO Sun II 5kVA-S

      • RiiO Sun II 4kVA-S

      • RiiO Sun II 3kVA-S

      • RiiO Sun II 3kVA-M

      • RiiO Sun II 2kVA-M

      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21
      • Nominal battery voltage (V)
        48
      • Max AC charge current (A)
        90
      • Max solar charge current (A)
        100
      • Number of MPPT trackers
        2
      • Maximum PV power per tracker (W)
        4400 + 4400
      • Maximum PV open circuit voltage (V)
        250
      • Smart Port
        Yes
      • Protection index
        IP21

      Product Downloads

      Visit Download Page for More Information

      • Datasheet

      • User Manual

      • More Files

      When connected to the Kinergy wireless data logger, your TBB System can be monitored, managed, and optimized via NOVA App or NOVA Web anywhere anytime. The access to TBB NOVA can be a phone, a tablet, or a laptop, displaying real-time data and historical records, catching potential issues early by setting alerts and alarms, and providing an easy access to controlling power generation, storage and consumption and more…
